Summary of Contents for SAN HIMA SH-HUB-25A

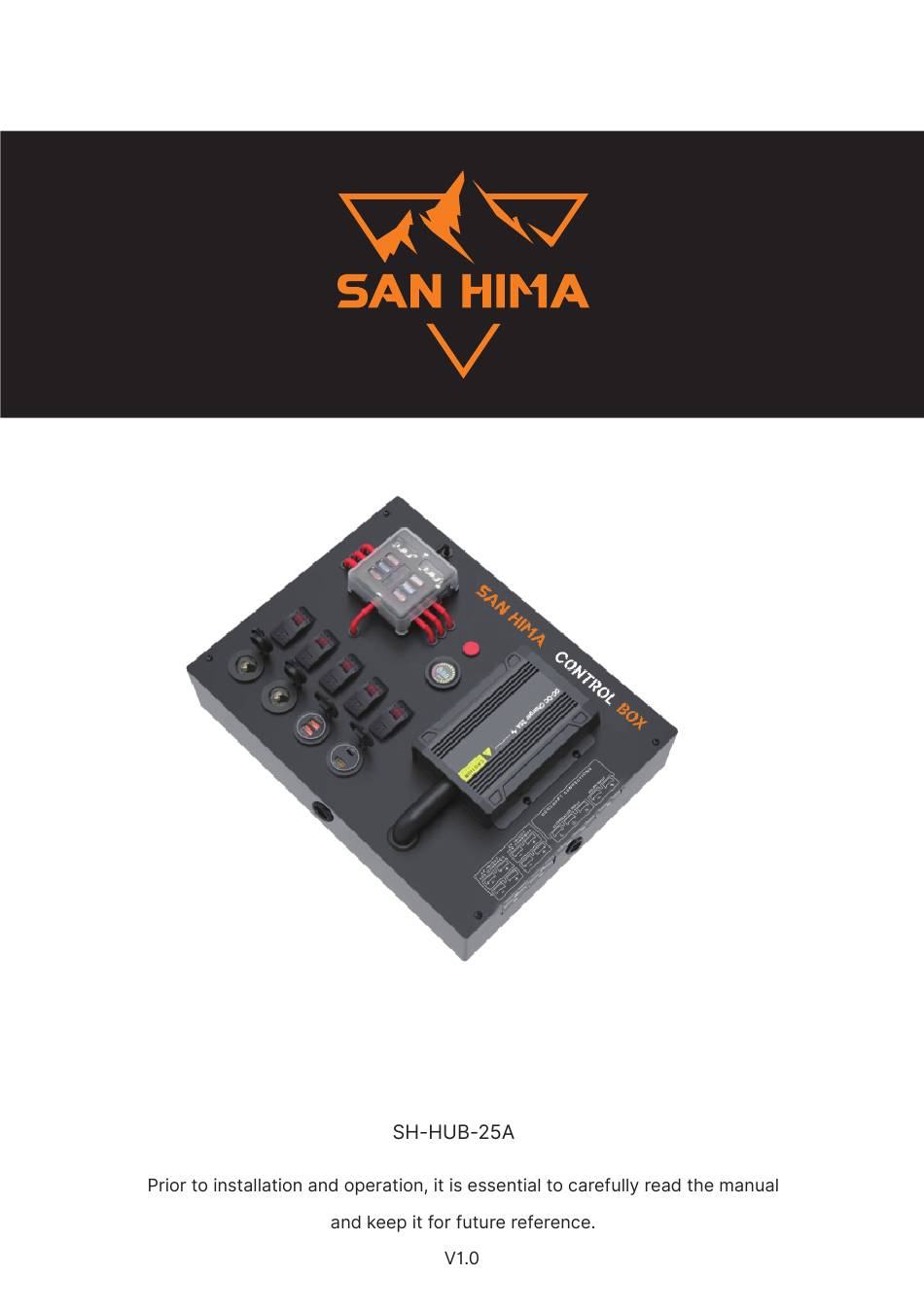

- Page 1 CONTROL BOX USER MANUAL...
- Page 2 ABOUT US...
- Page 3 TABLE OF CONTENT...
- Page 4 IMPORTANT SAFETY INSTRUCTIONS...
- Page 6 OVERVIEW What’s Included...
- Page 7 FEATURES & DEMENSIONS...
- Page 8 WIRING DIAGRAM...
- Page 9 CONNECTIONS & ACCESSORIES Voltmeter USBs Cigarette Sockets Switches...
- Page 10 4x (50A) Anderson Style Plugs Fuse box...
- Page 11 Mounting Instructions Step 1: Step 2: Step 3: Step 4: Step 5: Step 6:...
- Page 12 WIRING INSTRUCTIONS WIRING IN SWITCHES Step 1: Step 2: Step 3: Step 4:...
- Page 13 Step 5: Step 6: Step 7:...
- Page 14 SWITCH LIGHTING Configuration 1: Configuration 2:...
- Page 15 CONNECTING TO BATTERY Step 1: Step 2: Step 3: Step 4: Step 5:...
- Page 16 Step 6: Step 7:...
- Page 17 DCDC CHARGER MODEL CONNECTING THE DCDC CHARGER (DCDC CHARGER MODEL ONLY) CONNECTING SOLAR INPUT...
- Page 18 25A DCDC CHARGER Key Features Specifications Alternator Input Voltage Range 9-32V Solar Input Voltage 9-32V Max Input Current Input Fuse Rating Continuous Output Current Up To 25A Output Fuse Rating Minimum Auxiliary Battery Voltage Battery Type Standard Lead Acid, Gel, AGM, Calcium & LiFePO4 Charging Type 3 Stages Operating Temperature...
- Page 19 Operating Mode Input Turn On Turn Off 12V Standard Alternator >13.2V <12.8V 24V Standard Alternator >26.2V <25.6V 12V Smart Alternator >12.0V <11.8V (Blue ignition cable connected) 24V Smart Alternator >24.0V <23.6V (Blue ignition cable connected) Display Panel...
- Page 20 Choosing the Battery Type Solar Priority Charging State LEDs Charging State LED Battery Type LED Description Short Flash (Approx. 1 flash every 0.5 seconds) Undervoltage Long Flash (Approx. 1 flash every 1.5 seconds) Charging Yellow Full charged Constant Light...
- Page 21 Fault LED Indicators Alternator LED Solar LED Battery Type Trouble Possible Solution Quick Abnormal Check Flash (Green) Voltage detected auxiliary battery at output voltage & cable connections Quick & high Check main Flash (Red) voltage detected cranking battery at alternator input voltage Quick Low&high...
- Page 22 Fuse Specifications Source Fuse Alternator (Yellow wire) Charger Output/Auxiliary Battery (Red wire) Solar input (Green wire) Ignition (Blue wire)
- Page 23 WARRANTY EXCLUSIONS: CLAIMS:...
