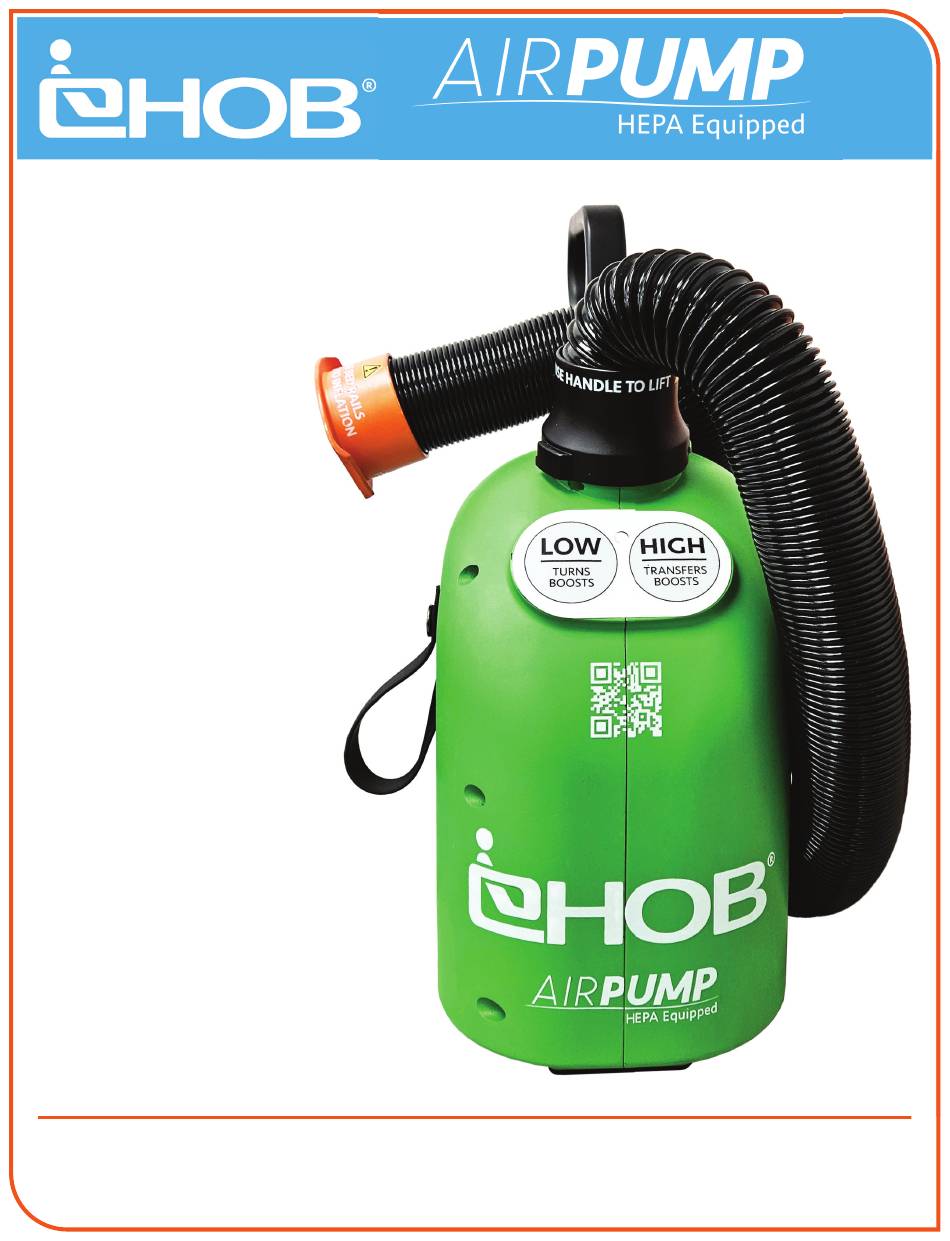

Page 1 Z0156A1 User Manual Revision 01...
Page 2: Table Of Contents
UM-Z0156 – EHOB Air Pump User Manual (REV01) Table of Contents User Manual 3 ....Symbol References 4 ....Intended Use and Cautions 5 ....Components and Features 6 ....Product Specifications 7 ....Instructions for Use 8 ....Product Maintenance 8 ....Warnings 9 ....Electromagnetic Compatibility Operating Instructions 12 ....Removing the Handle Hook Attachment...
Page 3 UM-Z0156 – EHOB Air Pump User Manual (REV01) Symbols on EHOB Air Pump FOLLOW INSTRUCTIONS SERIAL NUMBER FOR USE CATALOGUE NUMBER CAUTION MEDICAL DEVICE NOT MR SAFE TEMPERATURE LIMIT MANUFACTURER HUMIDITY LIMITATION DATE OF MANUFACTURE ATMOSPHERIC PRESSURE MULTI-PATIENT MULTI-USE LIMITATION...
Page 4: Intended Use And Cautions
Intended Care Settings Hospitals, Long-Term or Extended Care Facilities Intended Users Nursing or Hospital staff who have been trained in the usage of the EHOB Air Pump and any accessory products. Intended Use • The caregiver/operator is the individual handling the equipment.
Page 5: Components And Features
UM-Z0156 – EHOB Air Pump User Manual (REV01) Components and Features Air Pump Interface Functions...
Page 6: Product Specifications
• Ensure the air pump and air tube have been cleaned per facility’s protocol. To Store: • If using the EHOB Air Pump Cart, place the air pump on the cart. • Wrap the power cord neatly and carefully and drape it over the Power Cord Hook.
Page 7: Instructions For Use
3. Raise or lower the surface to an appropriate height for both caregivers. 4. Lock all wheels. 5. Insert the EHOB Air Pump Hose into one of the two orange Quick Connect Ports located at the foot end of the repositioning sheet.
Page 8: Product Maintenance
Prior to use, inspect the air supply to ensure there is no visible damage that may impact the performance of the air pump. If any damage is found, the pump should be returned to EHOB, Inc. for repair. Service Personnel The EHOB Air Pump has NO USER SERVICABLE PARTS.
Page 9: Electromagnetic Compatibility
Guidance and manufacturer’s declaration – electromagnetic emissions The EHOB Air Pump is intended for use in the electromagnetic environment specified below. The customer or the user of the EHOB Air Pump should be sure that it is used in such an environment. Emission Test...
Page 10 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the EHOB AIR PUMP is used exceeds the applicable RF compliance level above, the EHOB AIR PUMP should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the EHOB AIR PUMP.
Page 11 Recommended separation distance between portable and mobile RF communications equipment and the EHOB Air Pump The EHOB Air Pump is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the EHOB Air Pump can help prevent...
Page 12: Operating Instructions
UM-Z0156 – EHOB Air Pump User Manual (REV01) OPERATING INSTRUCTION Removing the Handle Hook Attachment Locate the Shoulder Screw and Lock Nut on the Handle Hook Attachment. Using a Size 4 (Metric) Allen Wrench and a 10 mm (Metric) Socket Wrench, loosen and remove the shoulder screw and lock nut from each other.
Page 13 UM-Z0156 – EHOB Air Pump User Manual (REV01) Holding the rest of the pump in place, firmly pull the handle hook attachment away from the pump until completely separated.
Page 14: Replacing The Handle Hook Attachment
UM-Z0156 – EHOB Air Pump User Manual (REV01) Replacing the Handle Hook Attachment Locate the rubber attachment piece on the back side of the pump. Slide the new Handle Hook attachment onto the rubber piece, making sure that the “C” shaped hose-holder is able to face the same direction as the front of the pump, the “Hanger”...
Page 15 UM-Z0156 – EHOB Air Pump User Manual (REV01) Insert the Shoulder Screw through the holes on the Handle Hook Attachment and rubber piece on the back of the pump. Once the Shoulder Screw is fully inserted, place the Lock nut onto the Shoulder Screw and tighten with your hands until it becomes difficult to continue turning.
Page 16: Removing The Hose Attachment
UM-Z0156 – EHOB Air Pump User Manual (REV01) Removing the Hose Attachment Firmly gripping the plastic neck of the Hose Attachment, rotate the Hose Attachment clockwise until the protruding green piece of plastic in the slot of the attachment is completely hidden.
Page 17: Replacing The Hose Attachment
UM-Z0156 – EHOB Air Pump User Manual (REV01) Replacing the Hose Attachment Slide the neck of the new Hose Attachment down onto the neck of the pump, making sure to line up the protruding black part of the hose attachment with the piece of green plastic protruding from the neck of the pump.
Page 18: Removing The Hepa Filter
UM-Z0156 – EHOB Air Pump User Manual (REV01) Removing the HEPA Filter Rotate the pump so that it lies flat on its back, revealing the HEPA Filter Cover. Using a Phillips head screwdriver, loosen and remove the screws that affix the HEPA Filter Cover to the bottom of the pump.
Page 19 UM-Z0156 – EHOB Air Pump User Manual (REV01) Remove the HEPA Filter Cover from the bottom of the pump. Pull the HEPA Filter out of the bottom of the pump completely.
Page 20: Replacing The Hepa Filter
UM-Z0156 – EHOB Air Pump User Manual (REV01) Replacing the HEPA Filter Insert the New HEPA Filter into the bottom of the pump completely, ensuring that the longer end of the filter is the side being inserted into the pump.
Page 21 UM-Z0156 – EHOB Air Pump User Manual (REV01) Using a Phillips Head screwdriver, insert and tighten the screws into the holes on the HEPA Filter Cover to affix the cover to the bottom of the pump.
Page 22 UM-Z0156 – EHOB Air Pump User Manual (REV01) Removing the HEPA Filter Cover Using a Phillips head screwdriver, loosen and remove the screws that affix the HEPA Filter Cover to the bottom of the pump. Remove the HEPA Filter Cover from the bottom of the pump.
Page 23 UM-Z0156 – EHOB Air Pump User Manual (REV01) Removing the HEPA Filter Cover After removing the HEPA Filter Cover, place the HEPA Filter Cover onto the bottom of the pump. Using a Phillips head screwdriver, tighten and attach the screws that affix the HEPA Filter Cover to the bottom of the pump.
Page 24 Manufactured in China for EHOB 250 North Belmont Avenue, Indianapolis, IN 46222 Ph. 800.899.5553 • Fx. 317.972.4625 • Web: .com EHOB PKG000257 | REV00 | 07/24...
