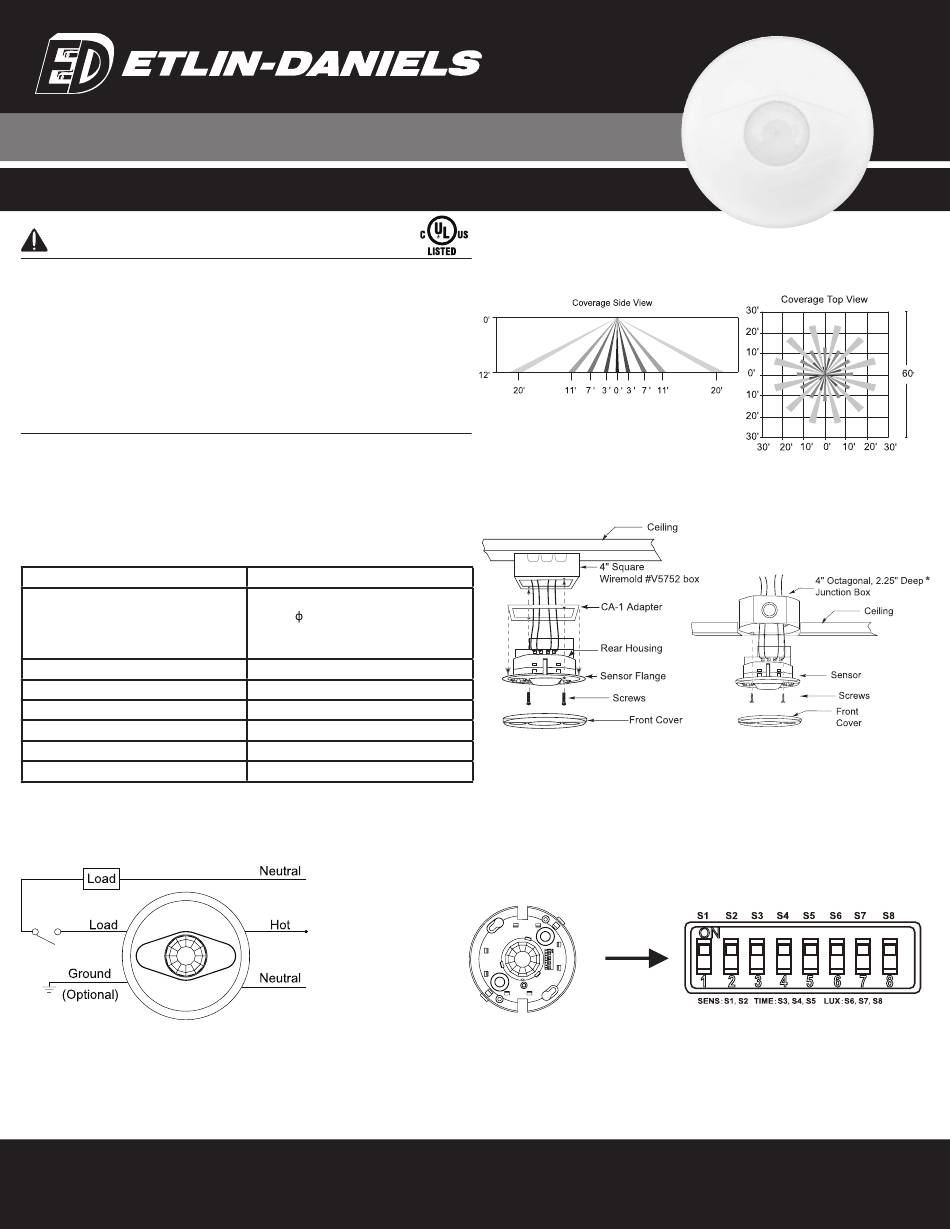

Etlin-Daniels SENPIR-CM-03 Installation Manual

INSTALLATION MANUAL FOR SENPIR-CM-03 PIR OCCUPANCY SENSOR
SAVE THESE INSTRUCTIONS - READ ALL INSTRUCTIONS CAREFULLY
WARNING
WHEN USING ELECTRICAL DEVICES, SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
• Disconnect power to the sensor by turning OFF the circuit breaker or removing the fuse from
the circuit before installing the SENPIR-CM-03 PIR Occupancy Sensor.
• CAUTION – FOR YOUR SAFETY: IF YOU ARE NOT SURE ABOUT ANY PART OF THESE
INSTRUCTIONS, CONSULT A QUALIFIED ELECTRICIAN.
• Do not install the sensor in a space controlling a total load that is higher than the rating
of the device. Each sensor will need to switch the entire load even if additional sensors are
installed. Risk of overload, product damage, smoke and / or fire may be result.
WARNING
Note: Warm up time is 40 seconds, after the sensor connects input power first time, the light
will keep on 40 seconds, then go off to work normally.
Note:Factory default setting: 100% sensitivity, Hold on time: 10 seconds, daylight sensor is
disable.
SENSOR SPECIFICATION
POWER SUPPLY
Max Load:
32°F ~ +131°F (0°C ~ +55°C)
Detection radius / angle
Mounting height
Time setting
Light-control
Humidity
Operating Temperature
WIRING DIAGRAM
120 - 347VAC 50/60Hz
120VAC, 0-800W Ballast/Tungsten/LED
230VAC(1 ), 0-1200W Ballast/LED
277VAC, 0-1200W Ballast/LED
347VAC, 0-1500W Ballast/LED
Max 20ft. (6m) / 360°
Max 12ft. (4m)
10 sec. / 1/5/10/15/20/25/30 min.
10/20/50/100/200/300/500Lux/Disable
Max. 95% RH
32°F ~ +131°F (0°C ~ +55°C)
Head Office - 1850 Wilson Ave. · Toronto, ON · M9M 1A1 · Tel: 416.741.7336 · Fax: 416.741.9104
Toll Free: in Canada. 1.800.661.9610 · in USA. 1.888.762.5384 (SOCKETS4U)
www.etlin-daniels.com · For sales/service questions - sales@etlin.com
SENSOR INFORMATION
CEILING MOUNTING
Using a 4" Square Junction Box
Mounting to a 4" square wiremold V5752 box
or 4" Square Junction Box with Double-Gang
Mudring.
PARAMETER SETTING
Shown as chart below: By setting the S1, S2 to set detection range of products, by setting
S3,S4,S5 to set the delay time of products, by setting the S6,S7,S8 to set the light-control of
products.
Using an Octagonal Junction Box
* the junction box must be at least 2.25"
deep. If it is not, an extension ring is required.
Mounting to an Octagonal Junction Box
