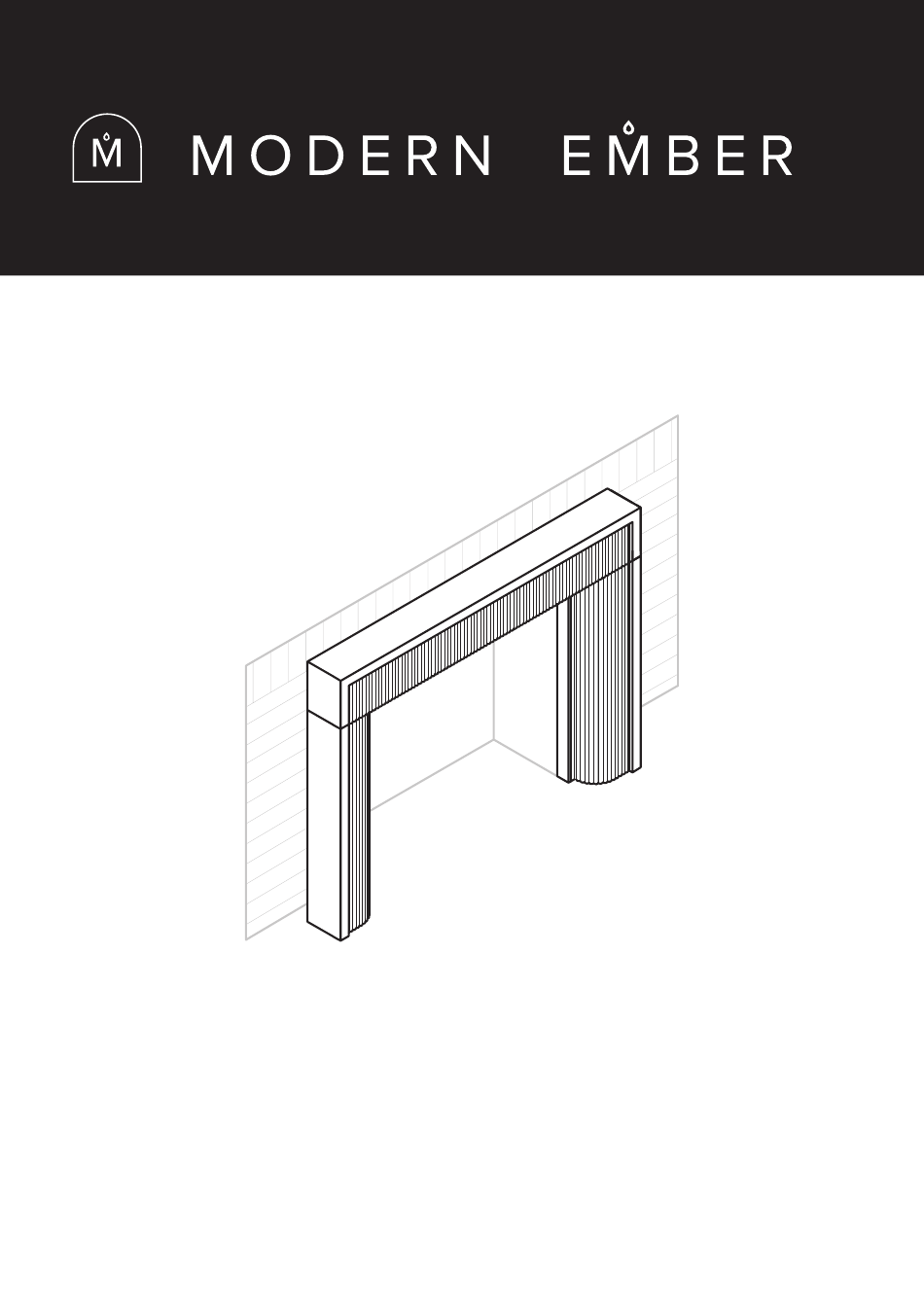

Page 1 Hazel Fluted Curved Leg Fireplace Surround Models: HAZEL-4842-BCHW | HAZEL-4842-WW | HAZEL-4842-SBL | HAZEL-4842-UMB | HAZEL-4842-UN | HAZEL-4842-WHT HAZEL-5642-BCHW | HAZEL-5642-WW | HAZEL-5642-SBL | HAZEL-5642-UMB | HAZEL-5642-UN | HAZEL-5642-WHT OWNER’S MANUAL 07/11/2024 | REV. A...
Page 2: Important Safety Instructions
Important Safety Instructions Read and understand the entire manual before attempting to assemble, install, or operate the product. WARNING CAUTION Heat clearances must be adhered to for Before assembly and installation, installation of this product; adhere to your carefully unwrap all parts. Locate local building heat clearance codes and heat and set aside the hardware kit before clearances as stated by the manufacturer of...
Page 3: Mounting Guide
Preparation MOUNTING GUIDE NOT INCLUDED NOT INCLUDED It is recommended to mount to a wall studs. If your application calls for mounting directly to drywall, concrete, or brick, we recommend using the appropriate hardware that can be found at your local hardware store.
Page 4 Installation Guide STEP 2: DETERMINE LOCATION AND MEASURE With the Fireplace Surround upside down on a soft surface, hold the mounting board in position on the Brest Plate. Measure from the top of the Breast Plate to the bottom of the mounting board - make note of this measurement, as you will use it in one moment.
Page 5 Assembly Instructions STEP 1 | Allen Wrench | Bolt 1/4” x 1-3/4” | x4 | Lock Washer 1/4” | x4 | Flat Washer 1/4” | x4 1. Place the Breast Plate (1) upside down on a soft surface. Align the holes of the Left Leg (2) and Right Leg (3) to the Breast Plate (1).
Page 6 Assembly Instructions STEP 2 | Screw #8 x 40mm | x4 | Screw #10 x 80mm | x4 1. With the Fireplace Surround (1-3) upside down on a soft surface, hold the mounting board in position on the Breast Plate (1). Measure from the top of the Breast Plate (1) to the bottom of the mounting board (4) and make note of this measurement.
Page 7 Assembly Instructions STEP 3 1. Lift and place the Fireplace Surround (1-3) onto the French Cleat Mounting Board (4) and slide down until the shelf is tight against the wall. 2. Push the shelf tight against the wall and then push down firmly on the shelf to ensure the French cleat is properly connected.
Page 8 Thank you for purchasing our Hazel Fireplace Surround! Each unit has been manufactured to ensure safety and reliability. Before first use, read the instructions carefully and keep it for further reference. Questions, problems, missing parts? Before returning to store, call Customer Service: 8am-5pm CST, Monday - Friday Phone: 877-430-0703 Email: resolution@netdirectmerchants.com...
