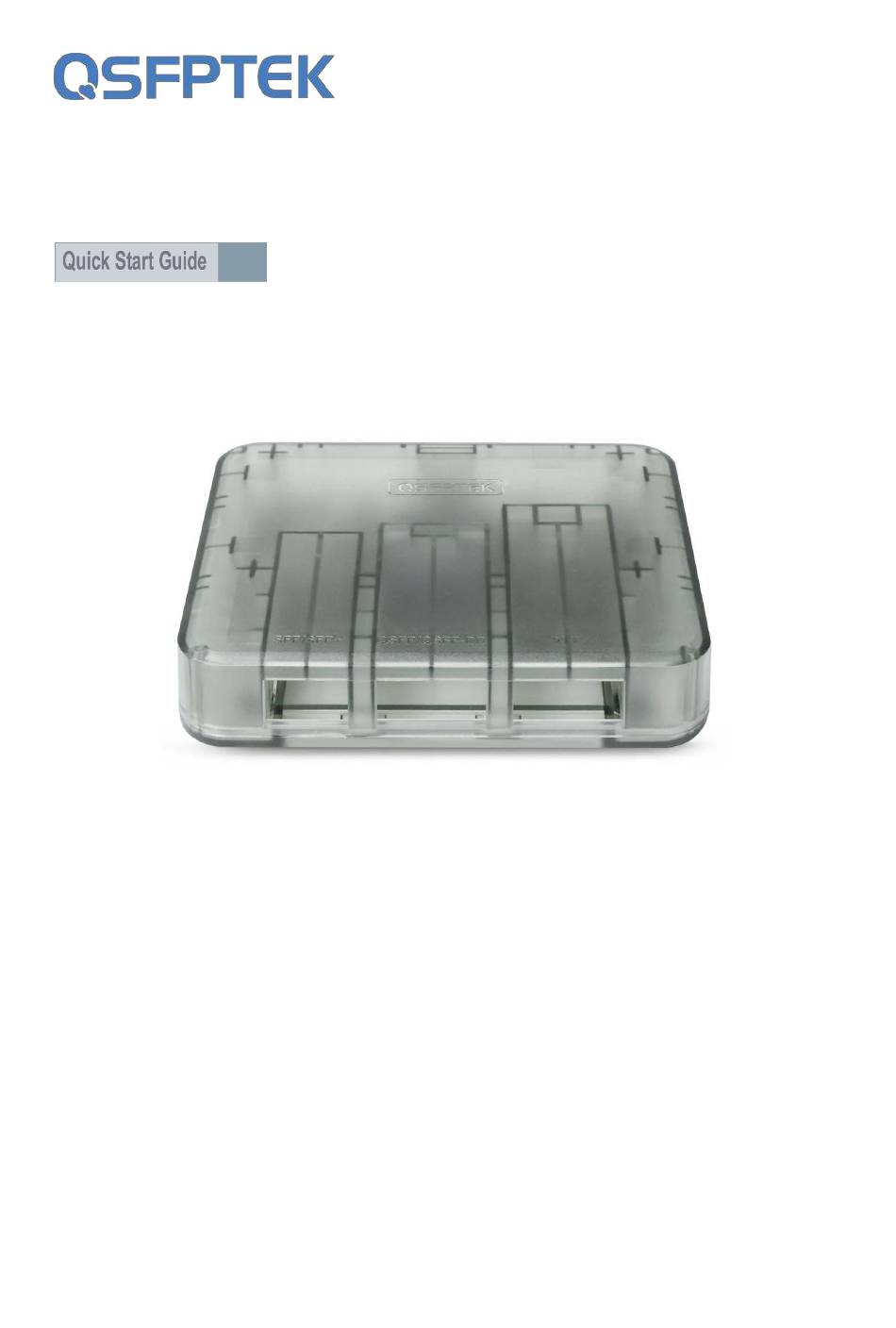

- Page 1 QSFPTEK Coding Box Quick Start Guide V2.0 QSFPTEK Coding Box Quick Start Guide Support Form Factor: SFP, SFP+, XFP, SFP28, QSFP+, QSFP28, QSFP-DD www.qsfptek.com V2.0 1 / 6...
- Page 2 Introduction QSFPTEK coding box can be used for coding, encoding, writing, and testing a full range of optical transceiver modules, including SFP, SFP+, SFP28, XFP, QSFP+, QSFP28, QSFP-DD, etc. This programming coding board is industry-leading in comprehensive performance with auto- sensing and auto-code writing functions.
-
Page 3: Tools Preparation
QSFPTEK Coding Box Operation Guide Tools Preparation Operation Guide Driver Installation Connect the computer and Code Box with USB cable (The green light indicates successful connection) Open the ‘USB Driver’ folder-USBXpressInstaller, Choose ‘Run as administrator’ www.qsfptek.com V2.0 3 / 6... - Page 4 The display interface after opening CodingX Insert the module into BOX (the red light indicates successful module and Code Box connection) After connection successful, the CodingX will display the module log in the left side www.qsfptek.com V2.0 4 / 6...
- Page 5 Select Pwd: Choose the password corresponding to the module model Open code: Click ‘Open code’ to select the code souce Write: Click ‘Write’ to finish transceiver coding 'Success' will be displayed if writing is successful, and ‘Fail’ if writing is failed www.qsfptek.com V2.0 5 / 6...
-
Page 6: Support And Other Resources
Customer Success https://www.qsfptek.com/resources/customer-success-stories Email support@qsfptek.com Product Warranty The QSFPTEK Box products are backed by a 3-year limited warranty supported by QSFPTEK. For more details about applying qualifications, please live chat or email sales@qsfptek.com support. 3 Year Warranty www.qsfptek.com V2.0...
