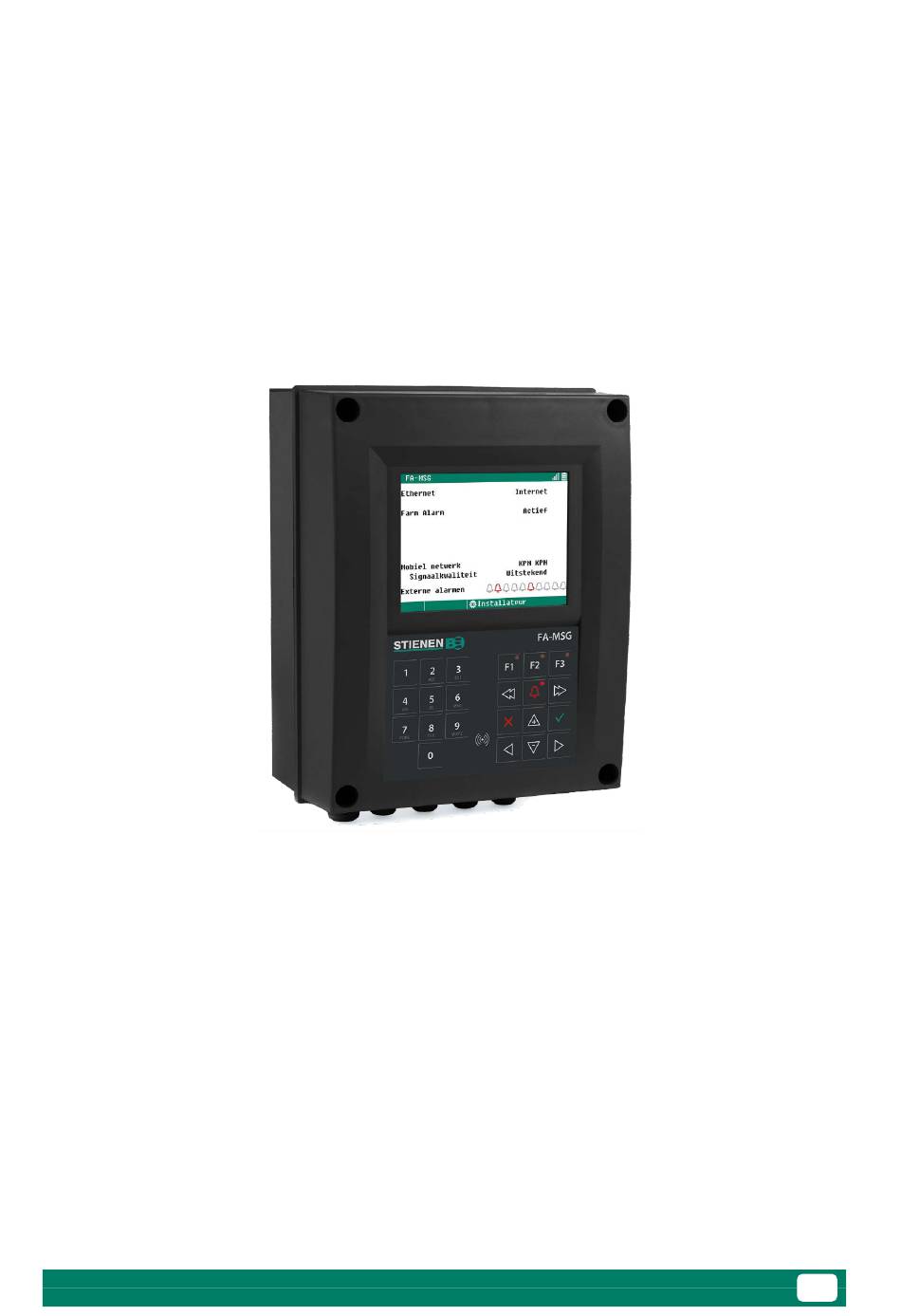

- Page 1 FA-MSG FARM ALARM MESSENGER USER MANUAL FA-MSG-G-EN02040...
-
Page 2: Table Of Contents
No part of this publication may be copied and/or published by photocopying or any other means whatsoever, without prior written permission from Stienen BE (www.stienen.com). We do not accept any liability for the contents of this manual and explicitly waive all implicit guarantees of merchantability or fitness for a certain use. -
Page 3: General Introduction
Please read all information and instructions carefully before using the product. Symbols mark warnings, important notes, tips, etc. in this manual. Stienen has compiled this manual with all due care. If you find any errors, please let us know. 1.1 Symbols and definitions Risk of injury by dangerous electric shock. -
Page 4: Safety Instructions And Warnings
The EU has set up systems for the separate collection of waste electrical and electronic equipment and batteries (Directive 20212/19/EU). If you do not dispose of the device properly, you risk a fine. Electrical and electronic equipment must be collected separately at the end of its life. FA-MSG-G-EN02040... -
Page 5: Alarm Notification/Acknowledgement
When you add a phone number to the contact list in your smartphone, you can associate a name and picture. When a call comes in from the FA-MSG, the phone number, name and picture will then appear on your screen. - Page 6 2. Tap Confirm to confirm the deletion. Your data will be deleted from the Cloud. You will no longer be able to log in with your account. If you want to use the FarmAlarm app again, you must register again. FA-MSG-G-EN02040...
-
Page 7: Display And Keyboard
= marginal reception = reasonable reception = good reception = very good reception Current battery level: = 0% = 25% = 50% = 75% = 100% Current login level: = guest = user = superuser = installer = service FA-MSG-G-EN02040... -
Page 8: Keyboard
= Insert spaces ghiîï4GHIÎÏ = Press repeatedly to insert punctuation marks. jkl5JKL mnoñôöœ6MNOÑÔÖŒ = Inserting text: Press once for a, twice for b, etc. pqrs7PQRS = Move text cursor left/right. tuvû8TUVÛ wxyz9WXYZ FA-MSG-G-EN02040... -
Page 9: Terminal Numbering
(capital letter) and a 2-digit sequence number. Letter Input/output type Description Digital input Contact input Fail safe input Monitored contact input. Wiring between devices is monitored for short circuit/wire breakage. The letters (inputs/outputs) A to L and N do not apply to the FA-MSG. FA-MSG-G-EN02040... -
Page 10: Menu Options
Example: The Superuser logs in correctly. Next, a user goes to log in. User-1 enters an incorrect access code 3×. The login process is blocked for 90 seconds. The Superuser remains logged in as normal. 5.2 Guest FA-MSG FA-MSG Main menu Ethernet... -
Page 11: Superuser
The Superuser can assign accounts to a maximum of five users. If you have installed FA-MSG at several locations, use the same names and passwords for the same users as much as possible. This way, you can easily track who has acknowledged what and who has logged off. - Page 12 The list is cycled through until someone answers. If a Central Station Receiver is present and the first user from the Call List does not answer, the Central Station Receiver is called. FA-MSG-G-EN02040...
-
Page 13: Communication & Battery Status
Each battery pack has its own identification number (ID no.). If the ID no. already exists in the table, the error message Already used is generated. Battery lifespan Number of days the battery is in the FA-MSG. Time left Time remaining before the battery needs to be replaced. - Page 14 A numeric Internet protocol address assigned to all devices connected to a network. This address uses the internet protocol for communication. If, after plugging in the Ethernet cable, this line contains zeros, the FA-MSG does not have access to a functioning network.
- Page 15 Total number of successful connections to FarmConnect since the last reset (or power failure). System up time The time the FA-MSG has been active since the last reset (or power failure). Connection up time Duration of the current connection time to FarmConnect since the last reset (or power failure) of the FA-MSG.
-
Page 16: Alarm
Test = ja For 60 seconds, the alarm relay de-energizes and the FLASH and SIREN outputs are activated. The Alarm Code is set to Test, the FA-MSG places a call and the Superuser is called first. 6.3 Snooze (sleep function) -
Page 17: Alarm Status
Always resolve installation errors such as Output already assigned, Output type error, Input already assigned etc. before commissioning the installation. 6.4 Alarm status 31 FS-MSG 31 FS-MSG 1/2 No alarm(s) Device FA-MSG Alarm code External alarm Control Extern.alarm 1 Begin --.--.---- --:--:-- Calling.. -
Page 18: Alarm History
If the cause of the notification is not removed, another call is generated after 20 minutes. This must then be handled again by one of the users. The FA-MSG keeps repeating this until the alarm is cleared. Solved The cause of the alarm has been resolved. - Page 19 Superuser Superuser Superuser Acknowledged by FarmAlarm App Locally acknowledged Acknowledged by CSR Call history 3211 Call history 1/2 Call at --.--.---- --:--:-- FA-MSG signal ---- Name ---------- Number +----------- Response ------------ Superuser Call at Date and time at which the user was called.
-
Page 20: Modem
After the Signal-gone-time notification the signal quality must be Marginal for at least the time entered to clear the alarm notification. Signal gone counter If the signal is too weak for a reliable connection at least during the Signal gone time entered, the counter is incremented. FA-MSG-G-EN02040... -
Page 21: Battery Alarm
Battery alarm Alarm status No alarm Superuser You cannot deactivate a Battery alarm. With a Battery alarm, the correct working of the FA-MSG is no longer guaranteed. You should therefore resolve this alarm immediately. 6.8 RS-485 communication 35 RS-485 communication... -
Page 22: External Alarms
No alarm Bottom PCB No alarm Superuser A hardware alarm cannot be deactivated. Correct working of the FA-MSG is no longer guaranteed. You must therefore resolve the hardware alarm immediately. RTCPU An error has occurred on the RTCP PCB. Bottom PCB An error has occurred on the bottom PCB. -
Page 23: System
2 Display Superuser Here you can see the device type (265 = FA-MSG), the program version number and the program date. In this screen, you also set the language of the screen texts. For English, select ENG. Hotkey for selecting language: 1. -
Page 24: Alarm Codes
Primary layer Error in configuration of the CSR. Radio/Ethernet selection error. Primary retry FA-MSG has tried several times to connect to the Primary CSR. This was still unsuccessful. Please contact the Primary Central Station Receiver. Secondary account Secondary CSR Customer number missing. - Page 25 Module configuration (type) changed. Re-read module number. Module x not installed The set module number at the terminal does not exist. Poor or no connection between the MODULE connector of the FA-MSG and external module. Module x not responding Module address not found.
- Page 26 No USB voltage 5V supply voltage USB missing. Check that LED L10 on the RTCP cover PCB is No valid IP address The FA-MSG has not received an IP address from the network (IP address = 0.0.0.0). Check the network connection.
- Page 27 The output type entered does not match the output type on which control is based. Wrong terminal setting Wrong assignment. The function assigned to the terminal is not supported by the module. A check of the battery ID number is performed. Incorrect ID numbers will not be accepted. FA-MSG-G-EN02040...
-
Page 28: Farmalarm Alarm Codes
One of the FA-MSGs no longer has an internet connection. Check on the LOCATION OFFLINE MSG that the Internet connection and IP address are present. Your phone number does not appear in the current call list of the FA-MSG. NO LOCATIONS FA-MSG-G-EN02040...
