KFM-6400

MULTIPHASE FEEDING SYSTEM

USER MANUAL

KFM-6400-G-EN02160

Table of Contents

Need help?

Do you have a question about the KFM-6400 and is the answer not in the manual?

Questions and answers

Summary of Contents for STIENEN KFM-6400

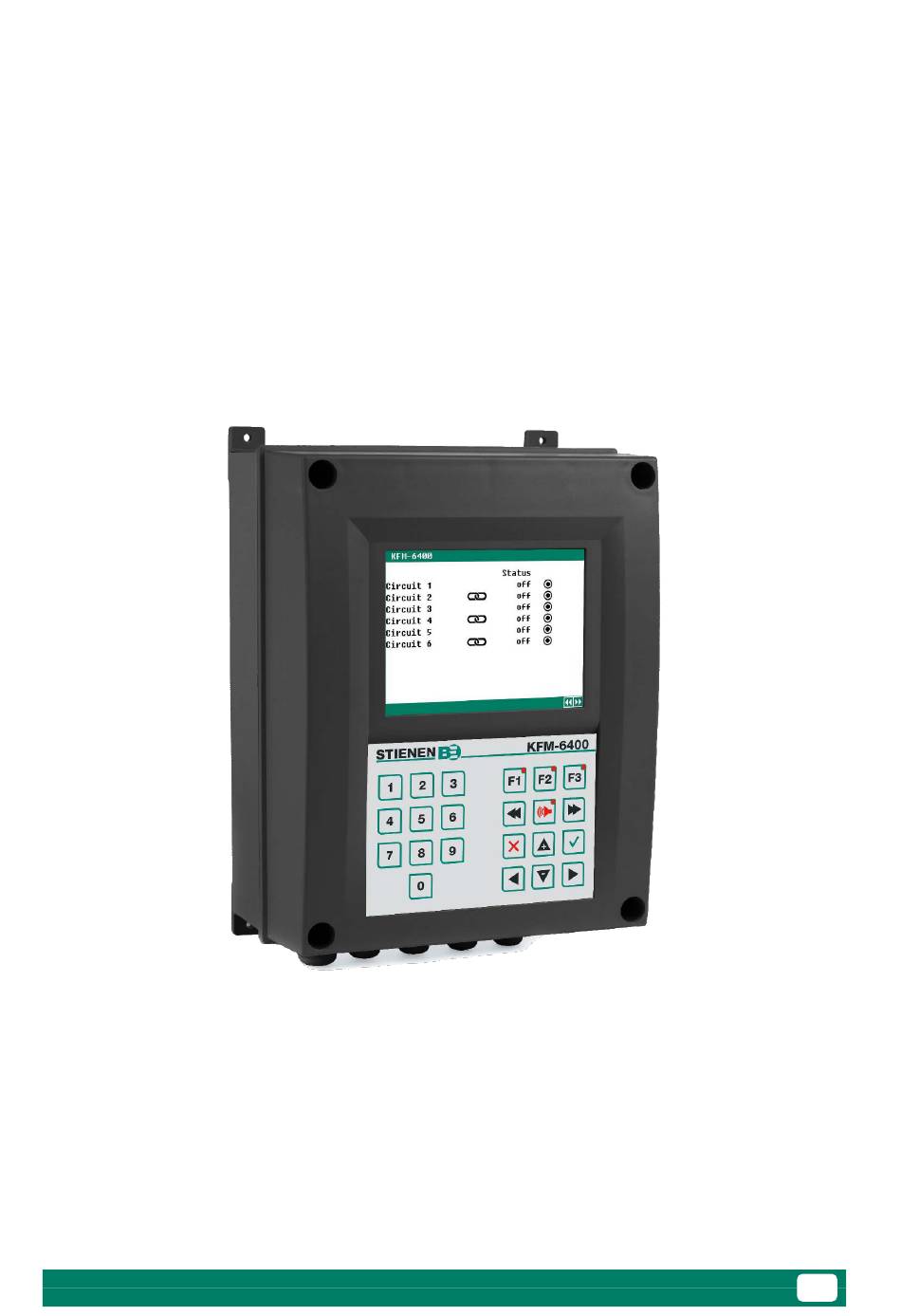

Page 1 KFM-6400 MULTIPHASE FEEDING SYSTEM USER MANUAL KFM-6400-G-EN02160...
Page 2: Table Of Contents
Feeding system ............................25 9.1 Overviews ............................25 9.2 Silo weigher status ......................... 25 9.3 Feed system alarm ......................... 26 Silos ................................ 27 10.1 Silo contents ..........................27 10.2 Silo status ............................27 10.3 Filled .............................. 27 Alarm ..............................28 KFM-6400-G-EN02160...
Page 3 No part of this publication may be copied and/or published by photocopying or any other means whatsoever, without prior written permission from Stienen BE (www.stienen.com). We do not accept any liability for the contents of this manual and explicitly waive all implicit guarantees of merchantability or fitness for a certain use.
Page 4: General Introduction
Please read all information and instructions carefully before using the product. Symbols mark warnings, important notes, tips, etc. in this manual. Stienen has compiled this manual with all due care. If you find any errors, please let us know. 1.1 Symbols and definitions Risk of injury by dangerous electric shock.
Page 5: Safety Instructions And Warnings
The EU has set up systems for the separate collection of waste electrical and electronic equipment and batteries (Directive 20212/19/EU). If you do not dispose of the device properly, you risk a fine. Electrical and electronic equipment must be collected separately at the end of its life. KFM-6400-G-EN02160...
Page 6: Multi-Phase Feeding System
The Maximum runtime setting allows you to stop the system once this maximum runtime has expired. This prevents the feed system from being unnecessarily active in the following situations:  empty silo  feed drop tube not straight above feed hopper KFM-6400-G-EN02160...
Page 7: Circular Circuit With Supply Auger
This should first be discharged into the troughs before new feed is added to the circuit (pipe too full). You can omit the Supply auger full indicator in certain situations. Have the circuit run one full cycle after starting and then start filling. KFM-6400-G-EN02160...
Page 8: Circular Circuit In Cascade
If the cascade circuit is too full, the system will stop. The circuit does not see any feed for a while now and again sends a full signal. This means that it cannot be restarted by the Take-over sensor. The supply auger drawn in the cascade circuit is optional. KFM-6400-G-EN02160...
Page 9: Multi-Phase Feeding System With Circuits
2. After the waiting time for this circuit has elapsed, the silo circuits and the valves programmed for this recipe are started. 3. As soon as the system's full indicator detects that the system is full, the status changes to ready and the next circuit starts. KFM-6400-G-EN02160...
Page 10: Screen And Keyboard
= select previous screen = select next screen 4.2 Keyboard Change language = next language = previous language Press and hold F1 and press to select the previous or the next language. KFM-6400-G-EN02160...
Page 11: Numeric Keys (0
Press and hold and press to add a breakpoint/period (provided that the maximum value for periods/breakpoints has not been reached). Press and hold and press to remove a breakpoint/period (provided there is a period/breakpoint). The number of breakpoints/periods is adjusted automatically. KFM-6400-G-EN02160...
Page 12: Alarm Key
Optocoupler output (max. 35Vdc, 30mA), e.g. kg pulse output. Open / close output 30-230Vac output Controlled triac output: 30-230Vac 2-10V output Temperature sensor 0-10V input Analogue input: 0-10V Digital input Contact and counter inputs, etc. Meteo station Pressure sensor KFM-6400-G-EN02160...
Page 13: Overview Screen / Main Menu
6 access codes for you. You can program a separate access code for the status screen. If you only set an access code for the status screen, this will apply to all user screens. KFM-6400-G-EN02160...
Page 14: Circuits
The active / off option enables you to temporarily switch points off, e.g.: To make sure the troughs are empty when the pigs are moved to another location.  To make sure that the pigs empty the troughs once a week or once every two weeks.  KFM-6400-G-EN02160...
Page 15 You can delete all the operating hours for the selected circuit by setting Clear hour counter to yes. Recipe Curve = yes Curve = no In this screen, you select the recipe to be fed per circuit. Only available for multi-phase feeding system with circuits. KFM-6400-G-EN02160...
Page 16: Alarm
The changed times will be taken over if:  Alarm circuit = off  Status circuit = rest  The new propagation time is shorter than the previous propagation time that had been set. Alarm status Display of the cause of the alarm. KFM-6400-G-EN02160...
Page 17 Alarm: set the correct timer periods, page 11 Supply auger alarm Alarm auger Switch the alarm on/off. Motor protection Find the cause of why the motor protection was triggered and resolve the problem, possibly with the help of your installer. KFM-6400-G-EN02160...
Page 18: Multiphase Feeding System
Multi-phase feeding system with Multi-phase feeding system with circuits selection slider or recipe groups 7.1 Status In a multi-phase system with circuits, the status screen looks slightly different: The timer menu works the same as the timer menu at the circuit. KFM-6400-G-EN02160...
Page 19 The system can be started manually, automatically or via a digital input. After the system is started, changes are only implemented the next day Normally, the KFM-6400 multiphase feeding system will run its program normally. Abnormal situations can occur: faults, no feed component in the silo, etc.
Page 20: Components
7. Multi-phase feeding system 7.2 Components Do not set more components than necessary. You can change the component names using the 0..9 keys. 7.3 Silo contents You can set the components contained in the individual silos. KFM-6400-G-EN02160...
Page 21: Recipes
The percentage calculated from the ratio settings. Time The time calculated on the basis of the ratio settings. 7.5 Recipe curves (multiphase = recipe group) You can set a maximum of 4 recipe curves, each with a maximum of 15 breakpoints. KFM-6400-G-EN02160...
Page 22 7. Multi-phase feeding system Example of a recipe curve Days  Recipe 5 Recipe 1 Recipe 2 Recipe 3 Recipe 4 Curve 1 KFM-6400-G-EN02160...
Page 23: Recipe Order
3. The recipe that was here automatically moves to the position where the one you just selected was. The positions are swapped. Multi-phase feeding systems with circuits For a multi-phase system with circuits, the circuit order can be changed in the same way KFM-6400-G-EN02160...
Page 24: Recipe Group (Multiphase = Recipe Group)
Current recipe group status. Curve Desired recipe curve. Recipe Desired feed recipe. Curve yes = recipe curves are used instead of recipes. Day number Start day number of the recipe group. The day number is increased automatically at 24:00. KFM-6400-G-EN02160...
Page 25: Multi-Phase System With Selection Slider
Multi-phase system with selection slider Multi-phase system with circuits Alarm selection slider Switch the selection slider fault alarm on/off. Status Current selection slider status. Propagation time Remaining propagation time (minutes, seconds) of the selection slider. Malfunction Switch the silo fault alarm on/off. KFM-6400-G-EN02160...
Page 26 Alarm delay time, the chain breakage alarm activates. Motor protection After the cause of the motor protection alarm has been resolved, you can reset the alarm by setting Reset to yes in the alarm screen. See section 4.7. KFM-6400-G-EN02160...
Page 27: Dosator Control
Period status: off or active (dispense/do not dispense during the period). Active Time during which the dosator is active. If the dosator status is waiting, the status can only be cleared by performing a Reset in the Alarm status screen. KFM-6400-G-EN02160...
Page 28: Feeding System
Filling silo active With bulk switch As soon as the bulk switch is operated, the KFM-6400 assumes that silo filling is taking place. Without bulk switch The weight filled is determined automatically. If the silo contents increase by more than 50 kg every 30 seconds, the KFM-6400 assumes that filling is taking place (Filling silo active).
Page 29: Feed System Alarm
(kg/h) for 60 seconds, a supply speed will be generated. Measure. If the silo weigher is connected to a counter, the current supply speed will be shown. Counters Alarm Switch the feed counter alarm on/off. Alarm status Current alarm status. KFM-6400-G-EN02160...
Page 30: Silos
10.2 Silo status Display of today's component amounts fed per silo. 10.3 Filled Overview per silo of the last five times the filling data was entered in screen 51 Silo contents. You also see the filling date and time. KFM-6400-G-EN02160...
Page 31: Alarm
Alarm 0 The cause of the most recent alarm with the time until which the alarm has been/was active. 11.2 External alarms Switching external alarm on/off Your installer can change the external alarm names (max. 15 characters). KFM-6400-G-EN02160...
Page 32: Communication
11.3 Communication Switching the communication alarm on / off. A communication alarm can only occur on a KFM-6400 which is set as the main station. If the main station does not receive any data from a device in the same communication loop, a communication alarm will occur.
Page 33 Do not forget to switch the alarm back on, e.g. if it was switched off to resolve a fault. Preferably use the off (alarm temporarily off) function to resolve a fault. Installation errors, such as Output already assigned, Incorrect type of output, Input already assigned etc. must always be resolved before putting the installation into operation. KFM-6400-G-EN02160...
Page 34: System
9. System System Device Device type name, KFM-6400. Type Device type number: 170 = KFM-6400. Program version Software program version number. Program date Software program date. ENG, NLD, DEU You can set the screen text language here. Set the language to ENG (English) for this manual.
Page 35: Remote Control
Number of seconds for which the backlighting of the display continues to light up after the last key press. Cursor left Move the cursor to the far left when making changes. Move the cursor to the far right when making changes. KFM-6400-G-EN02160...
