TPM 108-A204 Quick Start Manual

TPM
Product Type
108-A204
4-channel analog output (±10V)
Specifications
Size: (L124 x W72 x H53 mm)
Series Interface: Half duplex RS-485 with transformer isolation
Cable Type: CAT5 UTP/STP Ethernet Cable
Surge Protection: 10KV
Transfer Rate: 2.5Mbps, 5Mbps, 10Mbps, 20Mbps
IO isolation Voltage: 2.5KVrms
Effective Resolution: 16-bit
Output Impedance: 0.3Ω
Output Range: ±10V
Accuracy: ±0.2%
Input Voltage: 18~36V DC.
Power Consumption: 3W typical
Working Temperature: 0 ~ 60°C

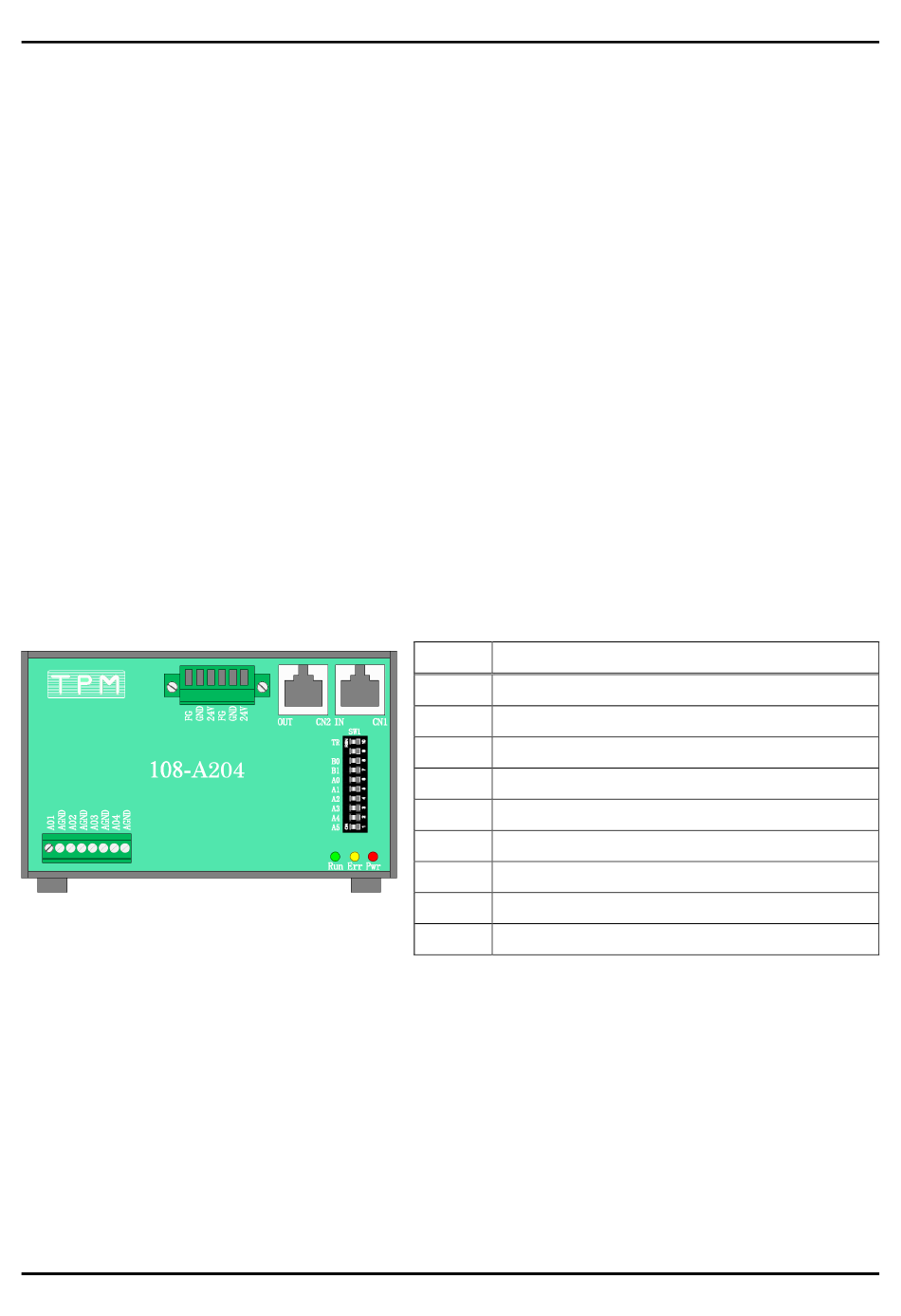

I/O Interfaces
Date 20240408
Label
CN1 Power Connector
CN2 Motion.NET Communication Control Connector
CN3 Motion.NET Communication Control Connector
CN4 Channel #0 ~ #3 Input Connector
SW1 Node Number Setting
SW2 Node Function Setting
LED1 LED Of Communication Active
LED2 LED Of Communication Error
LED3 LED Of DC Power Supply (Normally Light On)
Product quick start guide
Function
