VT485r / OSDPv2 reader extension slot
Function and purpose
Technical specification
Drawing / Dimensions
Physical description
Installation of VT485r
Activate VT485r
Connect readers/keypads to VT485r
Add RFID virtual element (e.g. SE mini reader)
Adding the RFID cards
Adding an RFID card with a known
Accessories
Package contents
Frequently asked questions and errors
What is the OSDPv2 protocol and what are its advantages?
Higher Security
Advanced Functionality
Ease of Use
More Interoperability

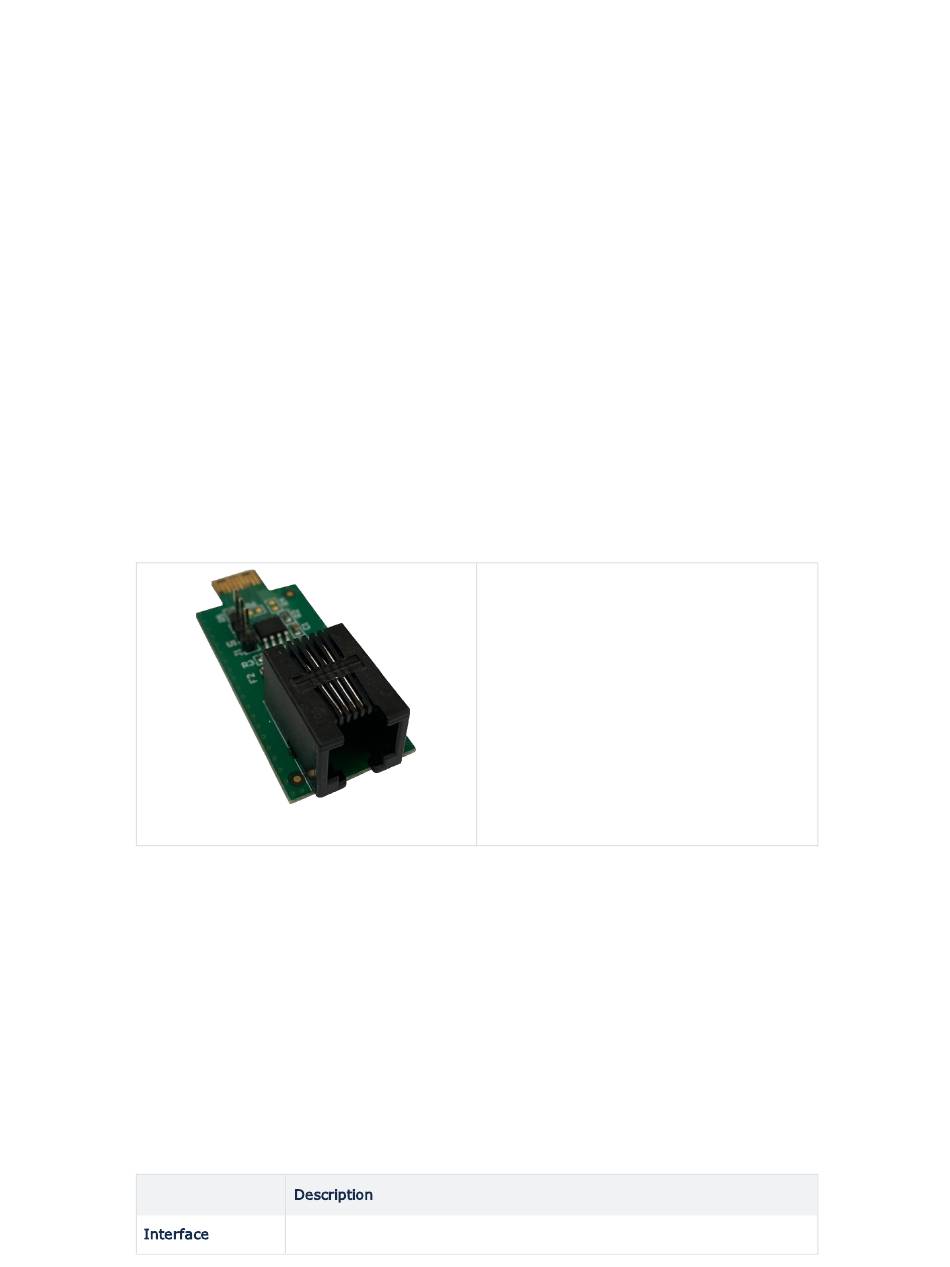

Function and purpose
It is an extension PCB board and should be purchased separately.
Allows to connect readers, and keypads with OSDP protocol support.
It can be used with VT335t, VT336t, VT825t, and
monitoring unit while the unit is in operation. Has an internal termination and by default, it is switched ON (if required
can be turned Off).
Allows to connect
SE mini
Technical specification
Interface
VT855t
reader, SE keypad, 8CD slim reader, and any other 3rd party OSDP readers or keypads.
Description
OSDPv2
monitoring systems. VT485r can be inserted inside the
Advertisement
Summary of Contents for Vutlan VT485r
- Page 1 It can be used with VT335t, VT336t, VT825t, and VT855t monitoring systems. VT485r can be inserted inside the monitoring unit while the unit is in operation. Has an internal termination and by default, it is switched ON (if required can be turned Off).
-
Page 2: Drawing / Dimensions
Wiring and Up to 1000 m distance Ambient Drawing / Dimensions Physical description... - Page 3 Sending signal Blue Receiving signal Red - send Blue - receive b) “+12V, A+, B-, GND“ - VT485r port with RS485 pins Installation of VT485r This procedure can be done during an operational Vutlan monitoring unit. Picture Description Unscrew the small panel on the monitoring unit using the screw driver.
- Page 4 Activate VT485r Picture Description Open Vutlan web Interface of your system. Go to panel “Preferences” >> tab “OSDP”. If the Extension VT485r is connected, you should see the the element “VT485R OSDP reader board” Tick “Enable OSDP” >> press “Save”.
- Page 5 1. We recommend connecting no more than x2 devices/readers powering from VT485r. If you power too many devices, a fuse inside the monitoring unit will activate and it will power down the monitoring system. 2. Terminate B(-) and A(+) end of the line with a 120 Ohm resistor.
- Page 6 Fill in the data >> press “OK” to add the reader...
- Page 7 Parameter Description Name Any distinguishable name you want Initial baud 9600 rate Initial address Initial key 303132333435363738393a3b3c3d3e3f Address 15, all readers should have a different address 00000000000000000000000000000015 Picture Description The reader is added. Parameter Description Name Any distinguishable name you want given by the system automatically Type: osdp given by the system automatically...
- Page 8 Adding the RFID cards Adding an RFID card with a known Picture Description Go to Vutlan web interface of the system >> “OSDP reader cards” panel >> press “+” at the top >> Fill in the fields: Card name - any name, e.g.
- Page 10 You can add multiple cards to the system.
-
Page 11: Package Contents
VT485r package content Product page: VT485r / OSDPv2 reader extension slot Make sure that the contents of the delivery meet the following configuration. Report a missing or damaged component to your supplier. If damage occurred during transportation, contact the appropriate delivery service. - Page 12 Check the filled in data. entered is incorrect I added VT485r as a virtual VT485r is faulty element, but the LEDs on VT485r are not blinking. OSDP tab does not appear in...
- Page 13 The OSDP specification is extensible to IP environments and the OSDP Working Group is working on deploying OSDP over IP soon. Copyright: Vutlan s.r.o. Remote Infrastructure Monitoring and Control 43 ul.Svornosti, 821 06 Bratislava, Slovak Republic, E.U.
