Casetur Roto 1020 Installation Instruction

Right opening

Advertisement

Quick Links

Roto
Installation instruction for right opening
Article no 1020
casetur mechanism GmbH
www.casetur.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Roto 1020 and is the answer not in the manual?

Questions and answers

Summary of Contents for Casetur Roto 1020

  • Page 1 Roto Installation instruction for right opening Article no 1020 casetur mechanism GmbH www.casetur.com...
  • Page 2 Roto can be installed in two ways, left or right opening: your island either opens to the left or right. Please choose your preferred installation option for left or right accordingly before continuing. This manual covers installation for right opening only. For left opening please use the adequate installation manual for left opening. © casetur mechanism GmbH, July 2024...
  • Page 3 Overview Upper Rotating Board (13x) Furniture Top Surface (2x) (2x) (6x) (6x) (4x) (2x) (4x) (2x) (2x) (2x) (2x) © casetur mechanism GmbH, July 2024...

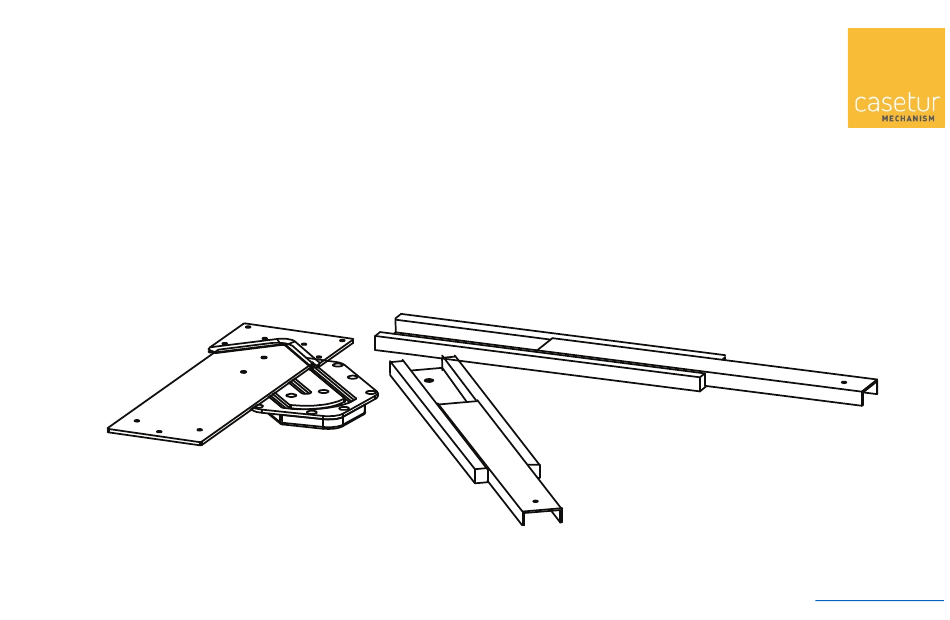

  • Page 4 A) Included Parts and Technical Details 1x CM3040 rotation mechanism 1x locking plate 2x extension slides 4x plastic support 2x metal angle 1x magnet © casetur mechanism GmbH, July 2024...
  • Page 5 6x 5x 30 mm wood screws 6x plastic spacer D16x 9 2x M3x 8 mm screws with bolt 2x plastic spacer D16x 5 2x cylinder head threaded screw M5x 16 2x sleeve bearing with flange © casetur mechanism GmbH, July 2024...
  • Page 6 Minimum board thickness: 20 mm Loading weight (open): 40 kg maximum Gap between upper board and furniture top surface: 25 mm (can be covered by a cover strip or similar of 8 mm thickness) © casetur mechanism GmbH, July 2024...
  • Page 7 B) Dimensions and Measurements Furniture width (Y) Board Length (X) Overhang Side (a) Overhang Front (b) 600 mm 865 mm 334 mm 352 mm 650 mm 915 mm 384 mm 352 mm 700 mm 965 mm 434 mm 352 mm © casetur mechanism GmbH, July 2024...
  • Page 8 After drilling all the holes, install threaded wood inserts M5x12 at marked location O: front 148,75 181,7 Ø 9 x 12 (2x) for threaded wood insert M5x12 Ø 3 x 10 (15x) 30,1 21,3 rear © casetur mechanism GmbH, July 2024...
  • Page 9 After drilling all the holes, install threaded wood inserts M6x12 at marked location O: rear 140,7 20,5 Ø 3 x 10 (8x) Ø 10.5 x 12 (2x) for threaded wood insert M6x12 front © casetur mechanism GmbH, July 2024...
  • Page 10 Fix magnet onto metal angle © casetur mechanism GmbH, July 2024...
  • Page 11 D) Installation Steps ( Right Installation) Step 1 © casetur mechanism GmbH, July 2024...
  • Page 12 Step 2 In order to reach all screw holes, move the upper moving plate of the mechanism back and forth. © casetur mechanism GmbH, July 2024...
  • Page 13 Step 3 © casetur mechanism GmbH, July 2024...
  • Page 14 Step 4 © casetur mechanism GmbH, July 2024...
  • Page 15 Take the upper board and hook the locking plate into the v-shape of the moving plate of the mechanism, fix the 3 screws of the moving plate. © casetur mechanism GmbH, July 2024...
  • Page 16 Step 6 © casetur mechanism GmbH, July 2024...
  • Page 17 Step 7 Rotate the upper board by 90 degrees to the right, install the metal angle and your Roto is ready for usage. © casetur mechanism GmbH, July 2024...
  • Page 18 E) Roto Operation Opening © casetur mechanism GmbH, July 2024...
  • Page 19 Closing © casetur mechanism GmbH, July 2024...
