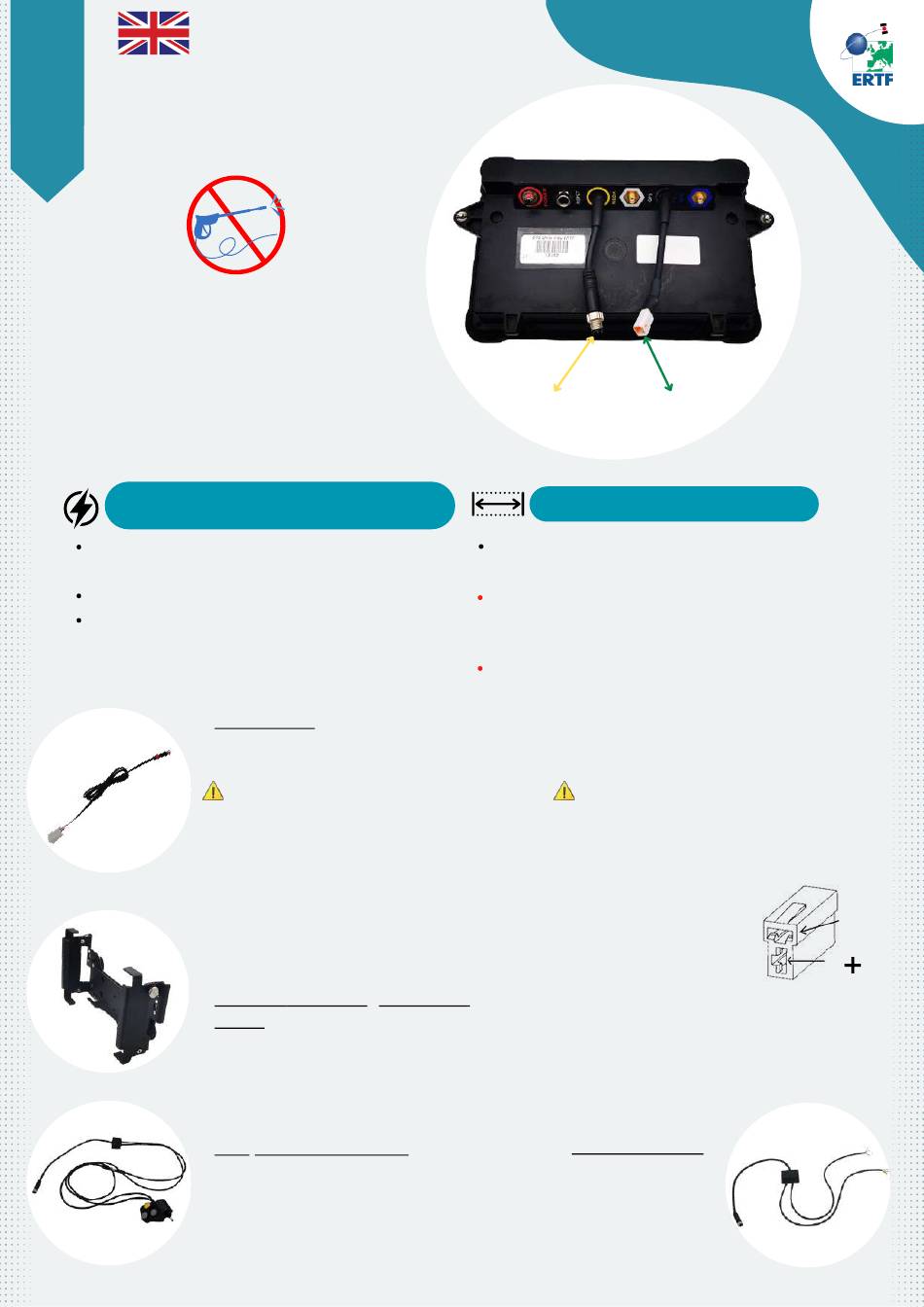

ERTF UNIK4 BIKE Installation Advice

U n i k U
Installation advice
n
4
UNIK4 BIKE
i
k
4
High pressure
washing
prohibited
Power supply after circuit breaker
Unik4 plugged in after a power circuit
breaker or ignition
Voltage: 12 to 24V
Protection by a 5A fuse
CALC-204
SUPC-204
TECO-204
or contact
Power cable
12V to 24V.
Protection by a 5A fuse
DO NOT CONNECT DIRECTLY TO BATTERY
Prepare a power cable from the circuit breaker or the after-contact to the place where the
Unik4 will be installed, equipped with terminals and a Faston connector not supplied (see details
below).
Use a 5A fuse.
Connecteur Faston: TE Connectivity 180907-0
Cosses: TE Connectivity 42238-2, serial FASTIN-FASTON
Bracket with 4 integrated silent
blocks
Complete remote control
Remote Control
Connector
Clearance
20mm between the Unik4 and the
Speedocaps
The tension of the cables should allow the
UNIK4 to be removed from its support
without strain on the connectors.
Connectors and cables must be free from
any contact with other parts of the
motorcycle.
Faston and Terminals References:
OR
Connection cable
For pilots wishing to use
their own remote control
Connection instructions provided
Connector
Buzzer JST
TECO-205
