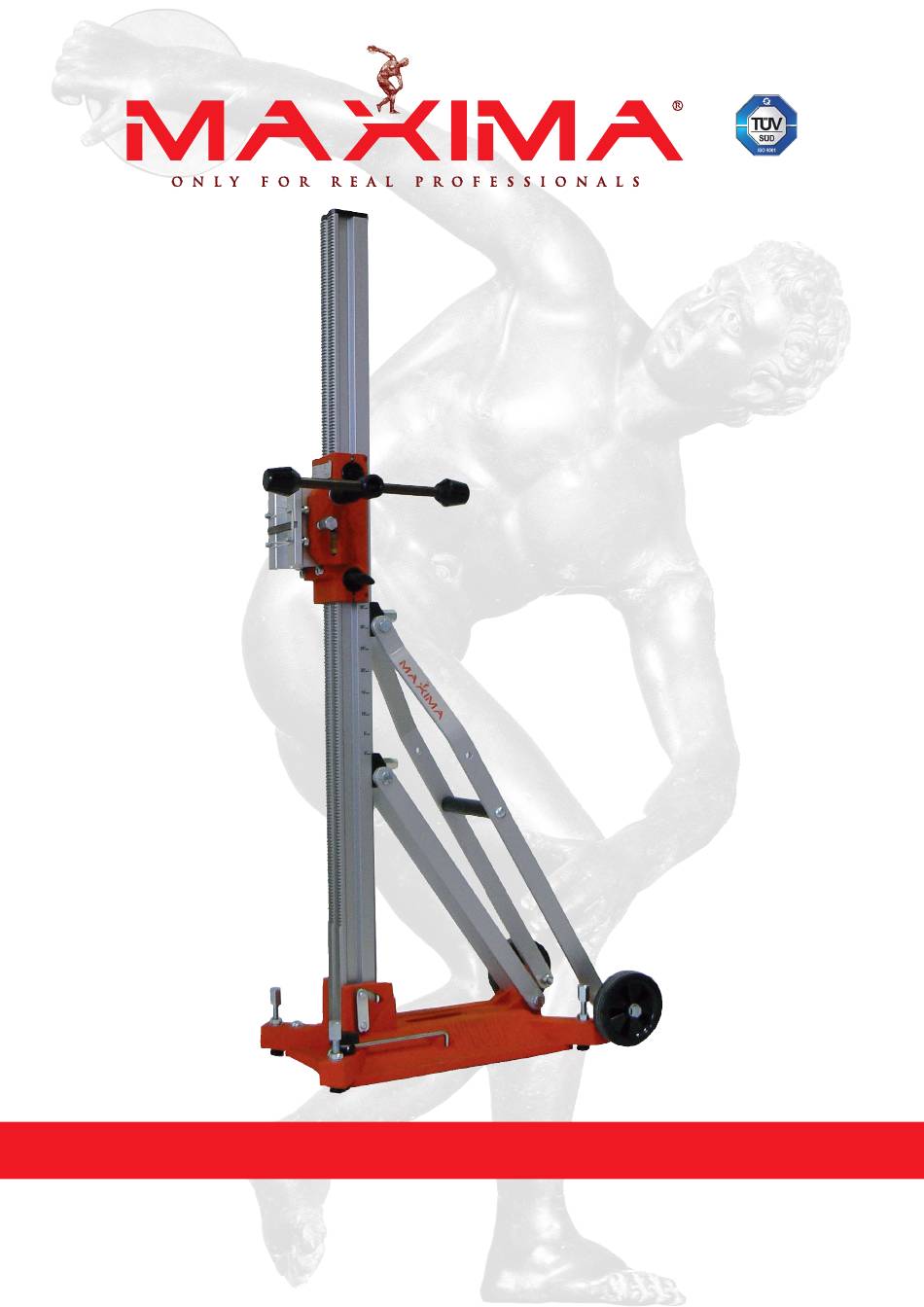

- Page 1 Colonna 300 - Use and maintenance booklet SERIAL NUMBER M....
-
Page 3: Table Of Contents
COLONNA 300 USE AND MAINTENANCE MANUAL “COLONNA 300” INDEX INTRODUCTION ..........2 SAFETY INSTRUCTIONS ..........3 MACHINE DESCRIPTION ..........5 OPERATING INSTRUCTIONS ..........8 MAINTENANCE ..........9 WARRANTY ..........11 TECHNICAL DATA SHEET ..........11 SPARE PARTS ..........12 DECLARATION OF CONFORMITY ..........19... -
Page 4: Introduction
This manual contains a lot of IMPORTANT information for the installation, use, storage and maintenance of the machine. For more information you can always contact the MAXIMA’s offices at the following numbers: Tel: 0522-968011 Fax: 0522-967536 This manual should be read carefully by any operator using the column for the first time. -
Page 5: Safety Instructions
COLONNA 300 SAFETY INSTRUCTIONS INTRODUCTION The following safety instructions should be followed when using the support to reduce the risk of fire, short circuit and physical injury. Before using the machine, please read the following information carefully and pay attention to the warnings given. - Page 6 COLONNA 300 Check whether the machine is in the OFF position before plugging the power cable into the socket. Carefully service the machinery Carefully store the machinery and keep it clean for better and safer performance. Follow the maintenance instructions carefully. Keep handles dry of oils and grease at all times.
-
Page 7: Explanation Of Symbols Used
COLONNA 300 Consider the situation of the work environment Keep the workplace clean. Pay attention to all cables (underground and underfloor), pipes and rebars in the working position. Do not use electricity in the presence of flammable liquids or gases or in wet and rainy conditions. - Page 8 FUNCTIONS General Colonna 300 is designed for the use of diamond core bits. It can be used to drill concrete, asphalt and other similar stones. The maximum diameter of the core bits that can be used with this column is 300 mm.
- Page 9 To fix it in the desired position, tighten bolts (8) and (9). Core drilling motor A stand-mounted core drill can be used with colonna 300 via the motor plate. It is important to take into consideration the diameter and rpm of the core bit. Manual coring machines can be mounted with a special motor support.
-
Page 10: Operating Instructions
COLONNA 300 OPERATING INSTRUCTIONS POSITIONING OF THE MACHINE Support anchorage The support can be anchored in two ways: 1. Anchorage with Plug • Insert an M12 plug into the wall or floor. • Remove the vacuum block. • Position the base and fix it with an M12 bush. -
Page 11: Maintenance
COLONNA 300 MAINTENANCE PREVENTIVE MAINTENANCE Regardless of preventive maintenance, operator safety and machine life can be enhanced by following the tips below: • Handle the machine with care • Keep the machinery clean • Carry the machine in wooden packaging •... - Page 12 COLONNA 300 REPAIR AND REPLACEMENT OF SLIDING BLOCKS Sliding block repair Due to the friction between the block (1) and the column, the sliding block tends to wear. After a while this forms a "gap" between the block and the slide in the column.
-
Page 13: Warranty
COLONNA 300 WARRANTY Period The Colonna 300 is covered by a 12-month warranty from the date of purchase Contents of the warranty Products found to be defective before or at the beginning of use will be repaired or replaced free of charge. Transportation costs will always be borne by the customer. -
Page 14: Spare Parts
Type of machine and serial number found on the support base. • You can find the number of the article to be replaced in the exploded views below. Colonna 300 has a 12-month warranty from the date of purchase EXPLODED VIEW COLONNA 300 Page 12 of 19... - Page 15 COLONNA 300 COLONNA 300 No MAXIMA No. DESCRIPTION Q.TY 791503X Complete winch 792209 Depth indication sticker 792002-X Motor support 7980031 Gear rack FBC060 Screw M8x50 7980025 Allen screw L.90mm FS10 M10 washer 792105 Vacuum gasket 7980026 Base locking plate 792001-X...
- Page 16 COLONNA 300 EXPLODED VIEW OF BASE BASE No MAXIMA No. DESCRIPTION Q.TY 7980028 Hexagon head screw M10x70 FBE1220 Cylinder screw M10x20 FM10 Hex lock nut M10 FS10K1 Nylon washer M10 FS10 M10 washer FG1020 Bushing M10X150 7980027 Rack locking nut...
-
Page 17: Motor Support
COLONNA 300 EXPLODED VIEW MOTOR SUPPORT MOTOR SUPPORT No MAXIMA No. DESCRIPTION Q.TY 792003-X Complete support pin 7980062 Metal label 7980084 Motor support FBC012 M8x12 cylinder head screw FG1010 Bushing M10x150 A5026 Spirit level 7980054 Hexagonal pin FR020 Seeger 20 FS20P3 Washer 20x28x0.3... - Page 18 COLONNA 300 WINCH EXPLODED VIEW WINCH No MAXIMA No. DESCRIPTION Q.TY 792305 Lever 7980045 Knob F40581 Conical cap Page 16 of 19...
- Page 19 COLONNA 300 EXPLODED VIEW OF VACUUM ACCESSORY VACUUM ACCESSORY No MAXIMA No. DESCRIPTION Q.TY F43222 Nyples 7980085 Vacuum accessory 792500 Vacuum gasket 7980044 Plate FBC040 Screw M8x40 E4008A O-ring 791103 Gasket 792104 Lever 7980086 Handle FBC120 Screw M10x20 Page 17 of 19...
- Page 20 COLONNA 300 EXPLODED VIEW OF WATER COLLECTOR WATER COLLECTOR No MAXIMA No. DESCRIPTION Q.TY 7011 Connection nozzle F40214 Knob C3019 Rubber hose 792400 Threaded rod F43242 Connection F45141 Curve 7107 Gasket 792044 Ring 70092 Rubber 792045 Ring support Page 18 of 19...
-
Page 21: Declaration Of Conformity
COLONNA 300 Declaration of We declare under our sole responsibility that this product Conformity complies with the following EC directives 2006/42 EEC 89/392/EEC and amendments. 97/23 EEC EN291-1, EN292-2, EN292-2/A1, EN60204.1 Type COLONNA 300 Model COL 300 INC Serial Number... - Page 24 Maxima SpA- Via Matteotti, 6 - 42028 Poviglio (Re) Italy Tel: 0039 0522 968011 - Fax: 0039 0522 967536 info@maxima-dia.com - www.maxima-dia.com...
