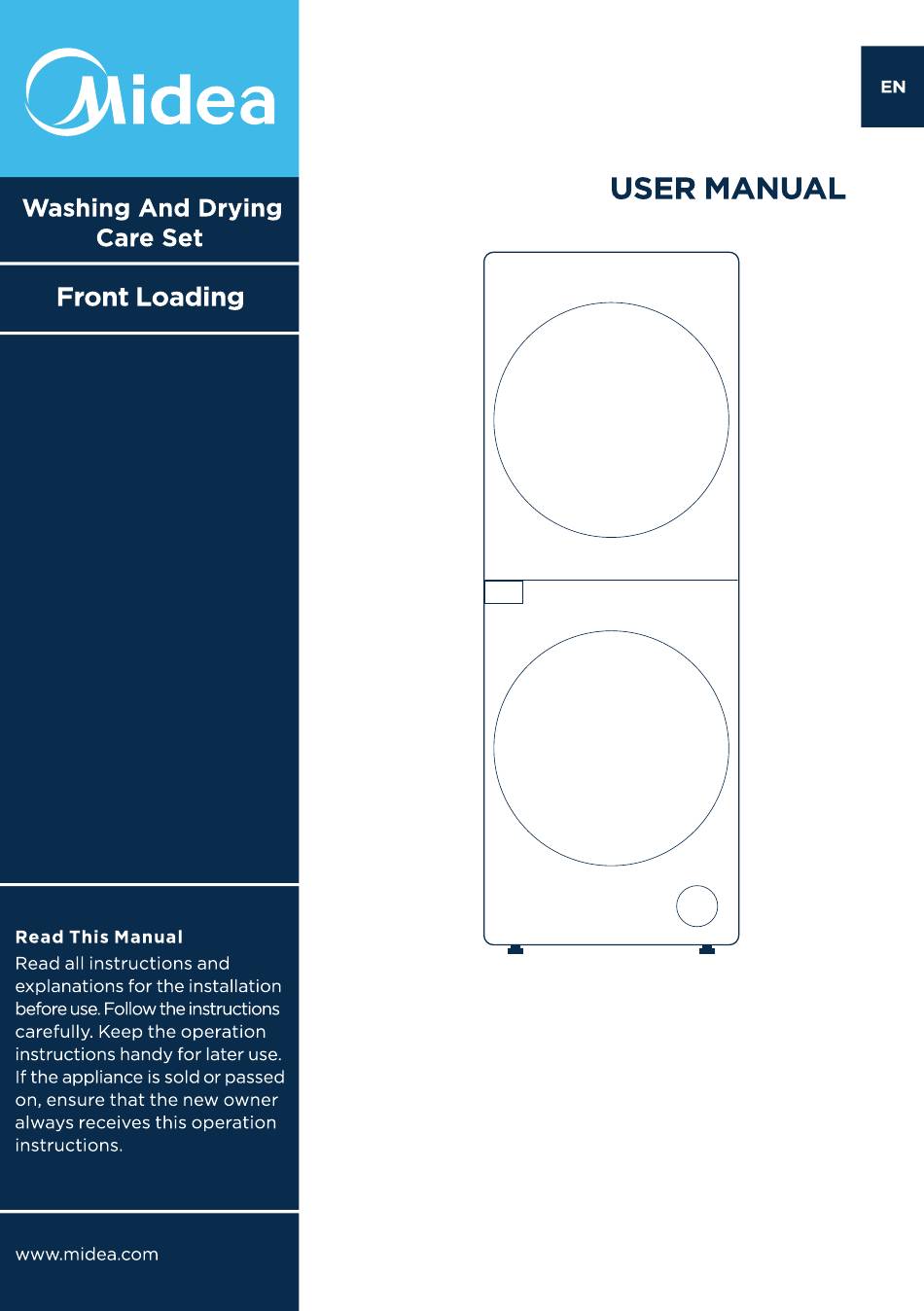

  • Page 1 MODEL: ML19F100D80W...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS SPECIFICATIONS PRODUCT OVERVIEW QUICK START GUIDE PRODUCT INSTALLATION OPERATION INSTRUCTIONS APP SETUP AND OPERATION CLEANING AND MAINTENANCE TROUBLE SHOOTING DISPOSAL AND RECYCLING Read all instructions and explanations before use.Follow the instructions carefully. Keep the operation instructions handy for later use. if the appliance is sold or passed on then ensure that the new owner always receives these operation instructions.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Intended Use The product is intended only for home use and for textiles in household amounts suitable for washing or drying. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use.

  • Page 4: Electric Shock Hazard

    WARNING: Electric Shock Hazard • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.
  • Page 5 SAFETY INSTRUCTIONS WARNING: Injury Danger • The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted. •...

  • Page 6: Safety With Children

    • Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire.

  • Page 7: Installation

    SAFETY INSTRUCTIONS Installation Location and Surrounding • All washing and additional substances are to be kept in a safe place out of the reach of children. • Do not install the machine on a carpet floor. • The obstruction of the openings by a carpet can damage the machine. •...
  • Page 8 Installation Position WARNING: • Children can become entangled in the packaging film or swallow small parts and suffocate. Do not allow children to play with the packaging. • The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

  • Page 9: Electrical Connection

    SAFETY INSTRUCTIONS Electrical Connection • Make sure the supply cable is not trapped by the machine, or it can get damaged. • Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical specifications” table. The grounding installation has to be made by a qualified electrician.
  • Page 10 At temperatures around freezing point the tumble dryer may not be able to operate properly. There is a risk of damage if the condensed water is allowed to freeze in the pump and hoses. Model Washing or Drying Capacity （ ） 8.0 kg ML19F100D80W-D Dryer （ ） 10.0 kg ML19F100D80W-W Washing machine...

  • Page 11: Specifications

    SPECIFICATIONS ML19F100D80W Model Power Supply 220-240V~,50Hz MAX. Current Standard Water Pressure 0.05MPa~1MPa Washing Capacity 10.0kg Drying Capacity Weight 110kg Rated Power 1950W Dimension 595mm 1680mm 525mm Reference Dimension 559mm 601mm 1103mm...

  • Page 12: Product Overview

    PRODUCT OVERVIEW Door Drain hose Transport bolts Detergent dispenser Water inlet valve Service flap Power supply cord NOTE The product picture is for illustration only, please refer to real product as reference. Accessories 4 x Cover 1 x Owner’s 1 x Supply hose caps cold water manual...

  • Page 13: Quick Start Guide

    QUICK START GUIDE CAUTION • Before washing, please make sure the machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use.
  • Page 14 2. Washing or Drying 1.Power on 2.Select programme WASH or DRY WASH 3.Select function or remain 4.Press Start/Pause to start the program default settings NOTE 1 : If default is selected, step 3 can be skipped. 2: The function button line chart is for reference only, please refer to real product as standard.

  • Page 15: Product Installation

    PRODUCT INSTALLATION Tools Needed If Installation By Yourself (not include) Installation Area WARNING • Stability is important to prevent the product from wandering! • Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. •...

  • Page 16: Unpacking The Machine

    Unpacking the Machine WARNING • Packaging material (e.g. Films, Styrofoam) can be dangerous for children. • There is a risk of suffocation ! Keep all packaging well away from children. 1. Remove the cardboard box and styrofoam packing. 2. Lift the machine and remove the base packaging. 3.

  • Page 17: Levelling The Machine

    PRODUCT INSTALLATION Levelling the Machine WARNING The lock nuts on all four feet must be screwed tightly against the housing. 1. Loosen the lock nut. 2. Turn the foot until it reaches the floor. 3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level using a spirit level.

  • Page 18: Stacking Installation

    Stacking Installation Accessories 2 x Fixed Sea 1 x Handle 6 x ST4x16 2 x ST4.2x20 2 x Hole Stick Screws Screws Installation steps: 1.Lift the dryer onto the washing machine, ensuring that the front end of the dryer is 150mm away from the back end of the 150mm washing machine, and tighten the foot...
  • Page 19 PRODUCT INSTALLATION 3.Remove the 2 screws from the dryer and install them with 4 screws. Fix the left and right fasteners and complete the installation. 4.Check if there is a sealing ring on the tee, align the pipe mouth with it, and lock it with a clamp.

  • Page 20: Drain Hose

    Drain Hose WARNING • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result in water leakage. • It is not allowed to remove the buckle of drain pipe. There are two ways to place the end of drain hose: 1.Put it into the water trough.

  • Page 21: Operation Instructions

    OPERATION INSTRUCTIONS Before Each Washing • The ambient temperature of the machine should be 5 °C -40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
  • Page 22 Before Each Drying 1.Before drying, thoroughly spin the laundry in washing machine. High spin speed shortens the drying time and saves energy. 2.For uniform drying result, sort the laundry according to fabric type and select the appropriate drying programme. 3.Before drying, please close zips, hooks and eyelets, button, tie fabric belts, etc. 4.Remove all objects from pockets such as lighters and matches.

  • Page 23: Detergent Dispenser

    OPERATION INSTRUCTIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Pull out the dispenser CAUTION • To prevent powder detergent from remaining in the dispenser under low water pressure, add the poder detergent into the Container, then put it into the drum. •...

  • Page 24: Control Panel

    Control Panel WASH Press 3 sec. Display The display shows the setting, estimated program time remaining and status messages of your machine. Option These buttons are used for setting additional functions. On/Off Product is switched on or off. Start/Pause Press the button to start or pause the cycle. Program Different drying cycles can be selected according to the users need and the type of laundry to be dried.
  • Page 25 OPERATION INSTRUCTIONS Display Display Wash/Dry Time Delay Time Speed Error Temp. Steam Wireless Network Turbo Door Lock Mote Control Delay Child Lock Sterilization...
  • Page 26 Programmes NOTE The following program includes cloud programs, which need to be downloaded from • the SmartHome app after network configuration. WASH Programmes Programme Load(kg) Display Time 10.0 Normal Wash 10.0 0:58 Quick 15'/30' 0:15/0:30 Bulky Wash 10.0 1:48 Hygiene 2:39 Cotton 10.0...
  • Page 27 OPERATION INSTRUCTIONS Programmes are available according to the laundry type. Programmes Mixed load consisting of textiles made of cotton and synthetics. Normal Wash Quick 15'/30' Extra short programme approx, suitable for lightly soiledwashing as a small amounts of laundry. Bulky Wash This program is specially designed for washing Bulky.
  • Page 28 DRY Programmes Programmes For mixed fabrics from cotton and synthetics, the max load is 3.5kg. ormal Dry Quick Dry To dry delicate laundry that is suitable for drying or laundry which is advised to be hand-washed at a lower temperature, the max load is 0.6kg.
  • Page 29 OPERATION INSTRUCTIONS Option WASH Option Default Default spin Additional Cycle speed(rpm) Temp.(℃) functions STEAM Normal Wash TURBO Quick 15'/30' Cold STEAM Bulky Wash TURBO STEAM Hygiene STEAM Cotton TURBO 1000 Spin Only Rinse&Spin 1000 STEAM Baby Care TURBO STEAM Shirts TURBO Drum Clean Down Jacket...
  • Page 30 STEAM STEAM Steam is the function added before main wash, which will generate warm steam to sterilization and greater washing performance. SPIN SPEED SPIN SPEED When needed, the spinning speed can be adjusted pressing the Speed button in the following steps: 1400：0-400-600-800-1000-1200-1400. RINSE RINSE The laundry will undergo an extra rinse after selecting this function.
  • Page 31 OPERATION INSTRUCTIONS REMOTE CONTROL This is the switch of remote control, if you want to use your smartphone to control the appliance remotely, you need to hold [UV/ 3 seconds. Considering the safe operation of appliance , the smartphone remote control should meet the following conditions: 1.
  • Page 32 DRY Option DELAY DELAY This function is used for delaying the start of the drying programme up to 24 hours. When the delayed programme starts, the time starts to countdown on the display. 1.Load your laundry and make sure the machine door is closed. 2.Press the [On/Off] button,then use the programme selector knob to select the desired programme.

  • Page 33: App Setup And Operation

    APP SETUP AND OPERATION Use Your Appliance With the SmartHome App Before you start, make sure that: 1. Your smartphone is connected to home wireless network,and you know the network password. 2. Make sure you are near the home appliance. 3.
  • Page 34 Start the Remote Control Rotate the knob randomly to indicate one of the programs, and press [ continuously until the remote control icon light up in the knob display, which means it has entered the remote control state and you can start to control remotely. Wireless Network Status Light Slowly flashing Waiting for connection...

  • Page 35: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Cleaning and Care WARNING • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the machine can extend its working life. The surface can be cleaned with diluted non- abrasive neutral detergents when necessary.
  • Page 36 Cleaning the Inlet Filter NOTE • Diminishing water flow is a sign that the filter needs to be cleaned. 1. Close the tap and remove 2. Clean the filter with a brush. the water supply hose from it. 3. Unscrew the water supply 4.

  • Page 37: Cleaning The Detergent Dispenser

    CLEANING AND MAINTENANCE Cleaning the Detergent Dispenser 1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush. 2. Lift the softener cover off the dispenser drawer and wash both items with water. 3.

  • Page 38: Cleaning The Drain Pump Filter

    Cleaning the Drain Pump Filter WARNING • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Wait for water cooling down. Risk of scalding! •...
  • Page 39 CLEANING AND MAINTENANCE Cleaning the Dryer Filter This dryer has a primary door lint filter. Make sure you clean the door filter after each cycle. 1. Open the door and take 2. Open the filter out the door filter filter lower filter 3.

  • Page 40: Trouble Shooting

    TROUBLE SHOOTING Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. WASH TROUBLE SHOOTING Description Possible Cause Solution Appliance does Door is not closed Close the door properly not start and restart.
  • Page 41 DRY TROUBLE SHOOTING Description Possible Cause Solution The machine door Door is not closed Press and hold the door handle automatically opens properly or there are to lock the door in the too many clothes corresponding position .Remove too much clothing and placed inside close the door again Door can´t be...
  • Page 42 TROUBLE SHOOTING Emergency door In case of power outage or other situations where the door cannot be opened normally and needs to be opened, please pull down the emergency door opening rope. After opening the door, please restore the emergency door opening rope. emergency door pull rope Pull down on the emergency...

  • Page 43: Disposal And Recycling

    DISPOSAL AND RECYCLING Important Instructions for Environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.

  • Page 44: Customer Service

    Customer Service In case of questions, please contact our local customer service center. WARNING Risk of electric shock • Never try to repair an appliance which is defective or presumed to defective. You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
