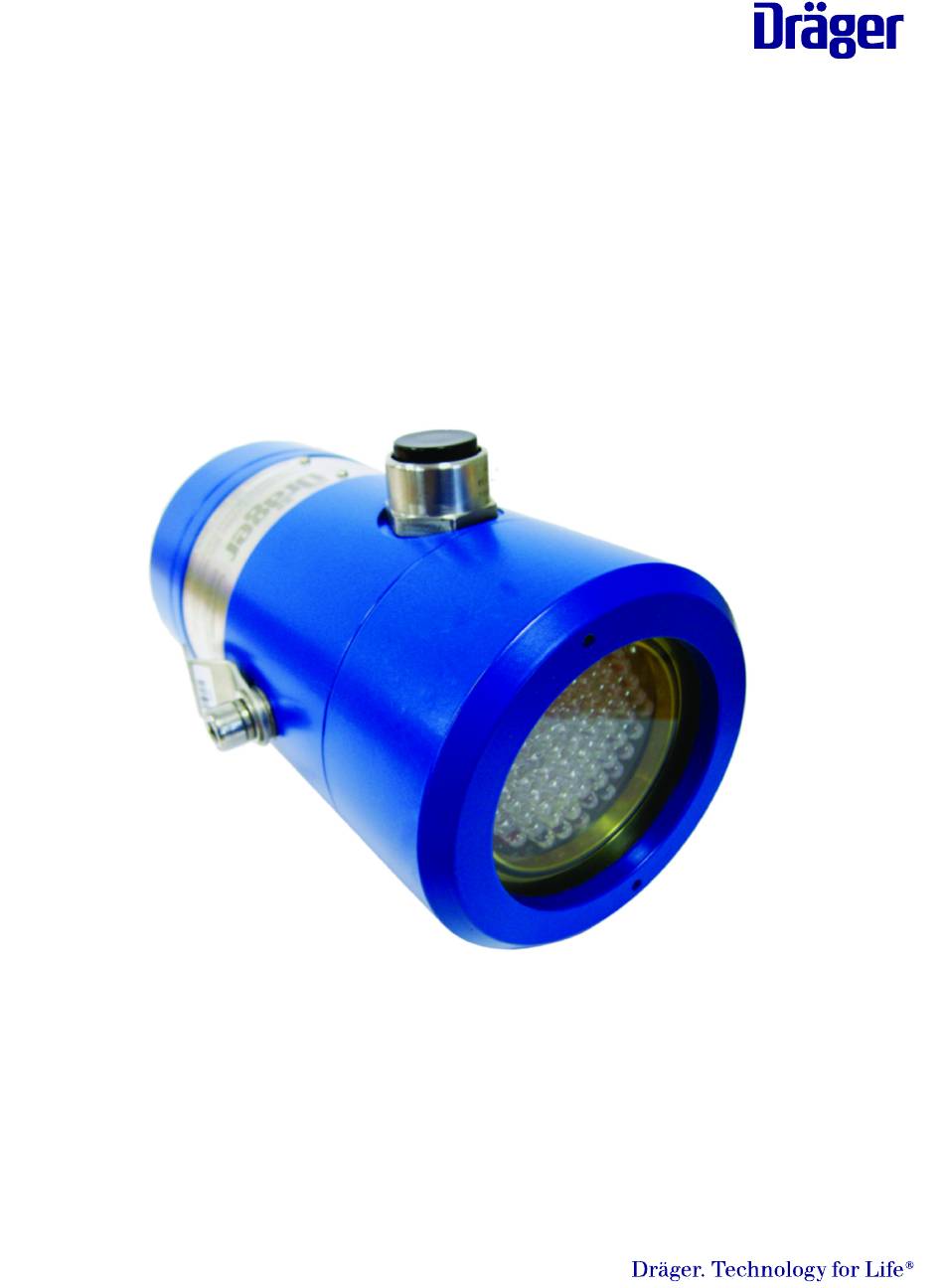

- Page 1 Dräger FS-5000 Flame Simulator Technical manual Dräger FS-5000...
-
Page 2: Table Of Contents
Contents Contents Dräger FS-5000 Flame Simulator Safety-related information..................General safety statements................Use in potentially explosive atmospheres ..........Conventions in this document ................Meaning of the warning notices..............Principles of operation ..................Product overview ..................Intended use....................Use.......................... Testing the detector.................. -
Page 3: Safety-Related Information
For further information see: "Product overview", page 4. ● Do not modify the FS-5000 Flame Simulator in any way and do not drill holes in any part of the enclosure. Modifying the product or drilling holes would invalidate the explosion protection. -
Page 4: Principles Of Operation
Intended use The Dräger FS-5000 Flame Simulator is intended to test the operation of Dräger Flame 3000 and Dräger Flame 5000 detectors within a range of 3 m to 8 m (10 ft to 26 ft). It is suitable for use in extreme environments, including potentially explosive atmospheres and offshore applications. -
Page 5: Use
Dräger for repair. Maintenance There is no periodic maintenance of the FS-5000 Flame Simulator. User tasks are limited to cleaning and battery charging when required. Do not attempt to replace the window as the glass and the front cover are individually matched pairs to meet the stringent requirement of the Hazardous area certification. -
Page 6: How To Dispose Of The Instrument
3 m to 8 m (10 ft to 26 ft) Enclosure Dimensions 100 mm x 220 mm (4 in x 8.7 in) (diameter x length) Shipping weight 2.5 kg (5.5 lb) Material LM25 alloy Coating Dräger blue epoxy Ingress protection IP66 Technical manual Dräger FS-5000... - Page 7 Shipping weight 4.5 kg (9.9 lb) Environmental specification Operating temperature -10 °C to +50 °C (14 °F to 122 °F) Charging temperature 0 °C to +25 °C (32°F to 77 °F) Relative humidity 5-95 % RH non-condensing Technical manual Dräger FS-5000...
- Page 8 Distributor Importer (EU) Dräger Safety UK Limited Dräger Safety AG & KGaA Ullswater Close Revalstraße 1 Blyth, NE24 4RG 23560 Lübeck United Kingdom Germany Tel: +44 1670 352 891 Fax: +44 1670 356 266 4209393 – 4800.006 en © Dräger Safety AG & Co. KGaA Edition: 5 –...
