Summary of Contents for DVDO DVDO-StreamRec-1
- Page 1 DVDO-StreamRec-1 Single Channel HDMI/SDI Streamer Recorder User Manual Version v1.0 DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCT INTRODUCTION ......................3 1.1. Description ........................3 1.2. Connectivity ........................3 1.3. Specifications ........................4 HARDWARE INSTALLATION ......................6 2.1. Package Contents ......................6 2.2. Device Dimensions ......................6 2.3. Front Panel Button Functions .................... 7 IP Address ............................ -
Page 3: Product Introduction
1. PRODUCT INTRODUCTION 1.1. Description DVDO-StreamRec-1 is a single channel live streaming and recording system. It can stream incoming HDMI or SDI signals up to Full HD resolution to various streaming platforms such as Facebook Live, YouTube or others. It can also record incoming HDMI or SDI signals as well as IP content from the network on external storage devices via the USB 3.0 port on the front panel and play the... -
Page 4: Specifications
The front panel includes physical buttons for Recording, Streaming and Source selection as well as USB 3.0 port allowing content to be recorded on external storage devices. 1.3. Specifications Model DVDO-StreamRec-1 Max. FPS 1920×1080p@60/50fps Recording Mode Hardware Compression, Real-Time Mode Video ．1×HDMI... - Page 5 H.265/H.264/AVC, Baseline/Main/High Profile Support input / output resolutions ➢ 3840×2160p@60/50fps (Output only) ➢ 3840×2160p@30/25/24fps (Output only) ➢ 1920×1080p@60/50fps ➢ 1920×1080p@30/25/24fps ➢ 1920×1080i@60/50fps ➢ 1280×720p@60/50fps ➢ 1280×1024p@60fps Video Feature ➢ 1280×960p@60fps ➢ 1024×768p@60fps ➢ 800×600p@60fps ➢ 640×480p@60fps ➢ 720×480p@60fps ➢ 720×576p@50fps ➢...
-
Page 6: Hardware Installation
2. HARDWARE INSTALLATION 2.1. Package Contents Item Amount DVDO-StreamRec-1 Streamer Recorder Power Adapter 2.2. Device Dimensions Below are the DVDO-StreamRec-1 dimensions: Device Size Diagram... -
Page 7: Front Panel Button Functions

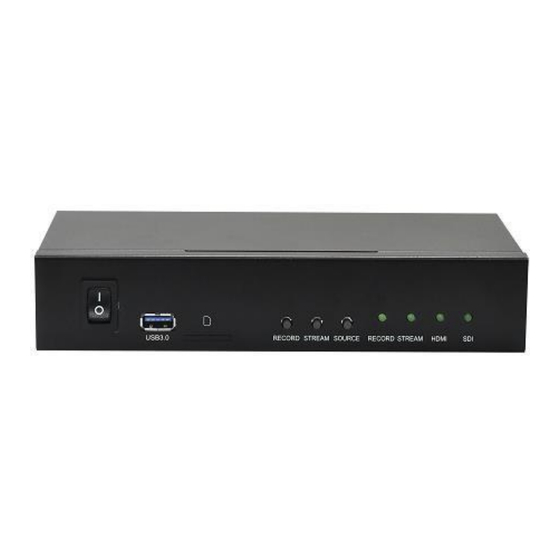

2.3. Front Panel Button Functions Physical buttons Icon Function Record Stream Source Selection... -
Page 8: Ip Address
3. IP Address The default IP address for DVDO-StreamRec-1 is 192.168.1.200. You can also use an IP Finder program or app to look up the IP address if DVDO- StreamRec-1 is connected to a network with a DHCP server. 4. WEB GUI DVDO-StreamRec-1 can be controlled with a web graphical user interface (web GUI) using a computer or a mobile device (Android, iPhone, iPad, etc…) -
Page 9: Language / Firmware
4.1. Language / Firmware The firmware version is displayed at the top of the web GUI where the language option can also be selected. 4.2. Source This page contains information about the source signal, including video and audio input selection. 4.2.1. -
Page 10: Uvc Camera
4.2.2. UVC Camera Below are the UVC Camera settings: Camera Name Device name Resolution Resolution setting 4.2.3. NDI Below are the settings for the NDI option: Group Device name Name The name of NDI stream *Need NDI Separate License... -
Page 11: Ip Stream
4.2.4. IP Stream There are two types of IP Streams. (1) Normal IP Stream For source URL, the following is the format: Source URL rtsp://[account]:[passwd]@[ip]:[port]/[session name].mpg Example: rtsp://root:root@10.10.41.228:556/session0.mpg Delay Time Select delay latency for reception. ( ms ) Reconnection When the video is drop out, this value decides the Timeout ( ms ) reconnection duration. - Page 12 (2) ONVIF ONVIF Dev List The system will search ONVIF devices automatically. ONVIF Name Enter device name. ONVIF Password Enter device password. Source URL The system will show the address after login the device. Source URL Please copy the address above. Delay Time Select delay latency for reception.
-
Page 13: Encoding
4.3. Encoding The video encoding resolution and bitrate can be adjusted in the Encoder section. DVDO- StreamRec-1 supports resolutions ranging from 160x120 to 1920x1080 and bitrates ranging from 44K to 100M. DVDO-StreamRec-1 offers dual encoding with main and sub encoding functions. The... -
Page 14: Recording
4.4. Recording We recommend the use of external storage devices with USB3.0, FAT32 or NTFS. Users can change the file format of the recording here. Click "Start" to start recording. 4.5. Streaming In the Streaming section, user can start/stop streaming and select stream type at this page, and setting each streaming format parameters. -
Page 15: Rtsp
Device name NDI Name NDI streaming name *Need NDI Separate License 4.5.3. HLS For HLS streaming, please directly select HLS and click “Start”, DVDO-StreamRec-1 will start HLS streaming automatically. 4.5.4. RTMP The following are the setting description: Stream Type RTMP RTMP URL For RTMP server address usage. -
Page 16: Srt
4.5.5. SRT There are two SRT Streaming modes: Listener and Caller. Below is a description of the settings for both modes. (1) SRT Listener Stream Type SRT Mode Listener SRT Port Enter the SRT Port. Passphrase To set a passphrase. (2) SRT Caller Stream Type SRT Mode... -
Page 17: Monitor
4.6. Monitor User can adjust the monitor here. 4.7. Image Processing The picture settings can be adjusted in the Image Processing section. -
Page 18: Network
4.8. Network 4.8.1. Network Settings Below is a description of the network settings: DHCP Enable/disable DHCP feature. When disable DHCP, please provide necessary internet parameters for Transceiver. Static IP Setting static IP Subnet Mask Setting subnet mask Default Gateway Setting default gateway Primary DNS Setting primary DNS Secondary DNS... -
Page 19: Time Setting
4.8.3. Time Setting Set time server and sync type. 4.9. System 4.9.1. Device Name Setting User can set device name here. 4.9.2. Device Config Setting User can save the setting or load previous settings here. 4.9.3. Firmware Update Press the Browse button to select firmware and Update button to update it. During update firmware, please don’t turn off power and wait until the upgrade has been completed. -
Page 20: Account And Password
4.9.3. System Control The “Restore to default” button will erase all saved settings and revert back to the original settings. The “Reboot” button will restart the DVDO-StreamRec-1 unit. 4.9.4. Account and Password User can assign new account and password here. - Page 21 Follow us DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
