AUGLETICS Eight Sport Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATING
INSTRUCTIONS
AUGLETICS Eight Sport
AUGLETICS Eight Style
Version 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eight Sport and is the answer not in the manual?

Questions and answers

Related Manuals for AUGLETICS Eight Sport

Summary of Contents for AUGLETICS Eight Sport

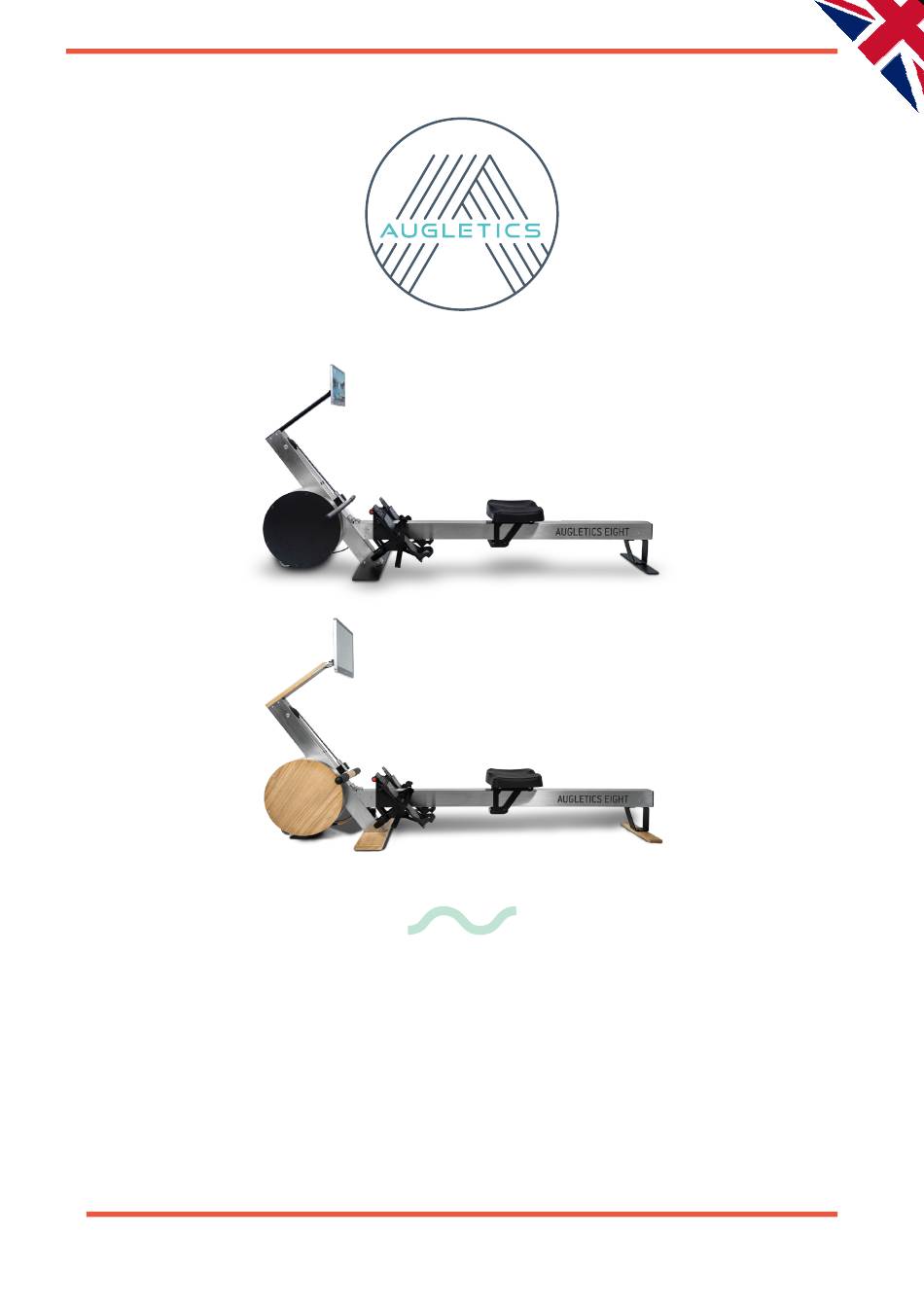

  • Page 1 OPERATING INSTRUCTIONS AUGLETICS Eight Sport AUGLETICS Eight Style Version 2024...

  • Page 3: Table Of Contents

    Assembly instructions AUGLETICS Eight Sport / Eight Style Die deutsche Version dieses Handbuchs finden Sie unter augletics.de/de/manuals Vous trouverez la version française de ce manuel sur augletics.fr/manuals Package contents Return shipment of the foam parts Assembly steps Care instructions Safety instructions...

  • Page 4: Package Contents

    Assembly instructions AUGLETICS Eight Sport / Eight Style Package contents Your rowing machine consists of: Video Assembly is even easier with the video instructions. Simply scan the barcode or enter the following Brake drum Roller track Mortise Footrest -0,2 ALLGEMEINTOLERANZ OBERFLÄCHENGÜTE:...

  • Page 5: Return Shipment Of The Foam Parts

    Assembly instructions AUGLETICS Eight Sport / Eight Style Return shipment of the foam parts Dear customer, We would like to thank you for your purchase and hope that your new rowing machine meets your expectations. As a company committed to...

  • Page 6: Assembly Steps

    SCALE: 1:5 DOCUMENT TYPE: PRODUCTION DRAWING PAGE 1 OF 1 Note: If the screws to be used differ between Eight Sport and Eight Style, the screw type for the Eight Style is noted in [square brackets]. M6x8 [M6x14] 4 mm...
  • Page 7 Assembly instructions AUGLETICS Eight Sport / Eight Style Package no. 1 contains the roller track Open parcel no. 1 anf lift out the contents. support - the frame of your rowing machine. All parts of the roller track support are braced together and can be removed from the box in one piece.
  • Page 8 Assembly instructions AUGLETICS Eight Sport / Eight Style Now place the foam piece removed in step 5 on Prepare the assembly of the front foot. your floor as shown. Then turn the roller track support over and place it with the front half on this part.
  • Page 9 Assembly instructions AUGLETICS Eight Sport / Eight Style To simplify transportation and installation, the Place the belt unter tension. device is shipped with the belt locked. To release this lock, the belt must be pulled out a little from the long tube and the small plastic part pushed off.
  • Page 10 Assembly instructions AUGLETICS Eight Sport / Eight Style To achieve optimum pre-tensioning in the Set the snapper tension correctly. folding mechanism for rudder operation, it may be necessary to adjust the tensioning bar just above the front foot. Start by loosening the center bolt (counterclockwise) and then adjust the preload of the quick release.
  • Page 11 Assembly instructions AUGLETICS Eight Sport / Eight Style Now unpack package no. 2 and remove the so- Hang up the brake drum. called brake drum. Remove the protective film and make sure that the two cylinder head screws in the recess of the drum are unscrewed by about 10 mm.
  • Page 12 Assembly instructions AUGLETICS Eight Sport / Eight Style Mounting the monitor arm AUGLETICS Eight Sport AUGLETICS Eight Style Prepare the monitor arm Prepare the monitor arm 2 mm, 3 mm 2,5 mm -0,2 ALLGEMEINTOLERANZ OBERFLÄCHENGÜTE: HALBZEUG: DIN ISO AUG 11-08 Monitorarm...
  • Page 13 Assembly instructions AUGLETICS Eight Sport / Eight Style AUGLETICS Eight AUGLETICS Eight Style Sport Lay the USB cable Lay the USB cable 2 mm, 3 mm 2,5 mm Place the USB cable through the cut-out in the Place the USB cable in the cut-out of the...

  • Page 14: Power Connection (24Vdc)

    Assembly instructions AUGLETICS Eight Sport / Eight Style To protect the connection between the screen Attach the filter and the brake drum from electromagnetic interference, a clamping filter must be attached to the USB cable. To do this, simply place the opened filter around the USB cable and close it until the catch engages.
  • Page 15 WERKSTOFF: ZEICHNUNGSNR. GEWICHT: g MASSSTAB: 1:3 BLATT 1 VON 1 The eight Sport does not have a swivel function, so you only need to adjust the resistance of the tilt hinge. DONE! You can disconnect the Each device has a...

  • Page 16: Care Instructions

    Assembly instructions AUGLETICS Eight Sport / Eight Style Care instructions The AUGLETICS Eight does not require much attention, but there are a few things you should bear in mind: Clean taxiway Clean taxiway Hinweis Note Over time, two stripes will Mit der Zeit werden zwei become visible on the runway.
  • Page 17 Assembly instructions AUGLETICS Eight Sport / Eight Style If you have any questions about the setup or the device itself, please take a look at the FAQs or the customer area on our website at augletics.de/en/structure/. Here we answer frequently asked questions in a simple way.

  • Page 18: Main Functions

    Made in Germany Operating instructions AUGLETICS Eight rowing Thank you for choosing a piece of sports equipment from AUGLETICS GmbH. Please read these operating instructions carefully before using it for the first time. The operating instructions are primarily intended to help you to guarantee safety. In addition, the operating instructions describe the correct installation and use to ensure the optimum performance of your device.

  • Page 19: Safety Instructions

    Declaration of conformity (simplified) Hereby, AUGLETICS GmbH declares that the radio equipment type "AUGLETICS Eight Sport", "AUGLETICS Eight Style" is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.augletics.de/konformitaet...

  • Page 20: Magnetic Field Warning

    Operating instructions AUGLETICS Eight Sport / Eight Style Magnetic field warning Moving parts The sports equipment is equipped During operation, transportation and when using the with an eddy current brake made of folding function, ensure that the moving parts (rolling neodymium permanent magnets.
  • Page 21 Operating instructions AUGLETICS Eight Sport / Eight Style Installation and storage Cleaning When setting up the appliance and also when folding it Always disconnect the appliance from the power supply up, please ensure that there is sufficient space available before cleaning. This applies in particular if you want to or that the appliance is free-standing.

  • Page 22: Technical Data

    Manufacturer’s warranty (European warranty card) Starting with the receipt of AUGLETICS GmbH products, you receive a warranty of three years. If, contrary to expectations, your AUGLETICS product shows a defect within the warranty period, please contact our support.

  • Page 23: About The Device

    Operating instructions AUGLETICS Eight Sport / Eight Style About the device Components replaceable by the customer If parts of your rowing machine break due to circumstaces that exclude a warranty claim, you can purchase some parts in our web store to replace them yourself:...

  • Page 24: Commissioning

    USB cable in both the brake drum and the monitor), the device starts up. This may take a few moments. However, you should be able to recognize the AUGLETICS logo on the screen after a very short time.

  • Page 25: Operation

    Operating instructions AUGLETICS Eight Sport / Eight Style Transportation Please disconnect the mains plug from the brake drum before moving the rowing machine. To avoid cable breakage, make sure that you do not roll or pull the device over the cables.

  • Page 26: Folding Function

    Operating instructions AUGLETICS Eight Sport / Eight Style Folding function You can fold up your rowing machine when you don't want to use it. As the roller track support can be folded upright in height, it takes up less space in this state.
  • Page 27 Operating instructions AUGLETICS Eight Sport / Eight Style With the Eight Sport, the screen remains in its original position - it cannot be swiveled. Please ensure that the screen is tilted slightly upwards so that the roller track support does not touch it.

  • Page 28: Menu Navigation

    Operating instructions AUGLETICS Eight Sport / Eight Style Menu navigaton Start You can start a free training session by tapping on the round symbol. The training starts with the first rowing stroke. Start Alternatively, you can start a free training session directly from the start menu with a rowing stroke.

  • Page 29: Views In Operation

    Operating instructions AUGLETICS Eight Sport / Eight Style Figure 4: Workouts view Figure 5: Archive view Views during operation There are basically four different views during training. You can easily switch back and forth between all views at any time by "swiping" the center of the screen to the left or right.
  • Page 30 Operating instructions AUGLETICS Eight Sport / Eight Style Power Figure 7 shows an example force curve in a diagram (force in Newtons). The actual force curve is shown as a white line running from left to right. The last two force curves are also shown so that a comparison can be made from stroke to stroke.
  • Page 31 Operating instructions AUGLETICS Eight Sport / Eight Style The following rowing characteristics are evaluated: Rhythm The device records two times: the pull-through time and the pre-roll time. The pull- through time measures the time required to move the handle from front to back.
  • Page 32 Operating instructions AUGLETICS Eight Sport / Eight Style Details Additionalinformationisdisplayed inthedetailedview.Youwillreceiveresultsforeach rowing stroke in the following areas: • Lay length in m • Pull-trough time in s • Freewheeling time in s • Rhythm • Taxiway in m • Power in W •...

  • Page 33: Operatig Instructions

    Operatig instructions AUGLETICS Eight Sport / Eight Style Maps The map view is available if your rowing machine has the latest software. Using this map material function only makes sense with an active internet connection, as the displayed is loaded online.

  • Page 34: Rowig The Right Way

    The forward roll during normal training should take about two seconds. Want to see a professional rowing the AUGLETICS Eight? Then go to the following link and let double Olympic champion Karl Schulze teach you the right technique in video form: augletics.de/richtigrudern...
  • Page 35 Operating instructions AUGLETICS Eight Sport / Eight Style Display Draught Reverse AUGLETICS Page 18 2024...

  • Page 36: Faq (Frequently Asked Questions)

    I am asked for an admin password, but I don't know it. You can lock the device to prevent users from making settings in the gym, for example. However, if you have forgotten your password, please send an email to support@augletics.de and include your Ergo-ID (see installation instructions, page XIII).

  • Page 37: Hardware

    Operating instructions AUGLETICS Eight Sport / Eight Style FAQ (frequently asked questions) Hardware The belt makes a cracking noise when pulled. Please apply some silicone spray to the belt as described in the care instructions (p. XIV). When the belt moves back, it rubs extremely / makes a lot of noise.

  • Page 38: Wifi

    Or by telephone at +49 (0)30 555 799 63 1 You will usually receive an answer within 24 hours. If you would like to speak to an AUGLETICS technician, please also let us know by e-mail. We need the following information: •...
  • Page 40 AUGLETICS GmbH Zur Heide 10 15712 Königs Wusterhausen Germany info@augletics.de augletics.de Phone number: +49 (0)30 555...

This manual is also suitable for:

Eight style
