INSTALLATION GUIDE
Draw wire sensors series SX50, SX80, SX120

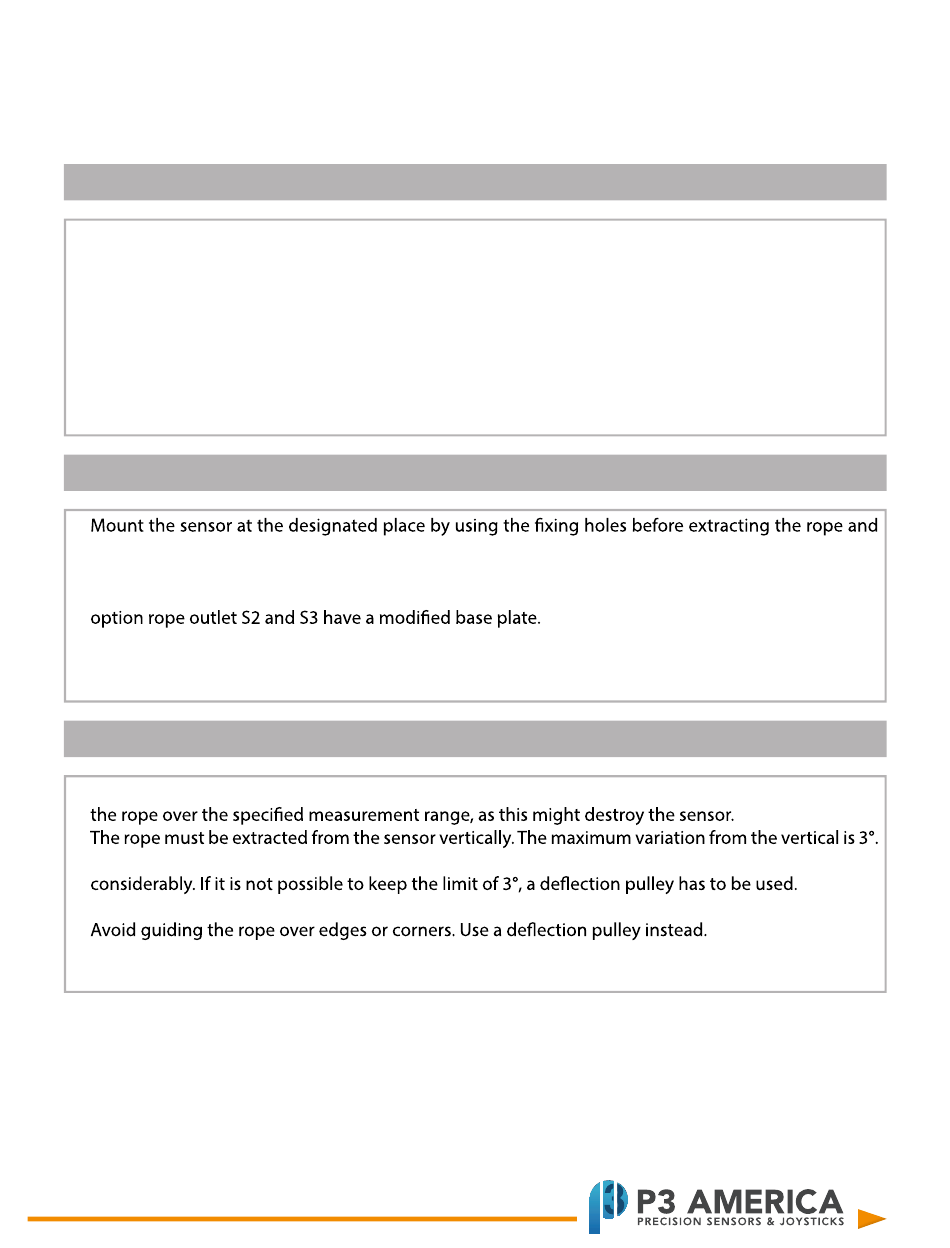

FIRST STEPS
This manual will make you familiar with the installation and operation of our draw wire sensors.
Please read this manual carefully before initial operation!
Unpacking and checking:
Carefully lift the device out of the box by grabbing the housing. Do not pull the rope. After
unpacking the device, check it for any visible damage as a result of rough handling during the
shipment. Check the delivery for completeness.
MOUNTING OF THE SENSOR
before attaching the rope to the measuring target.
• The sensor is usually installed by using the regular mounting plate. By disassembling the mounting
plate, threads will become visible in the sensor housing for alternative installation. Sensors with
• Open the rope clip after the sensor is fully mounted and carefully extract the measuring rope. Hook
the rope clip on the measuring target and close the bracket of the clip. For safety reasons put a screw
driver through the clip to extract the rope.
HANDLING THE WIRE ROPE
• When installing or operating the sensor, take care not to let the rope snap back by mistake or extract
Avoid extracting the rope at an inclination, since the durability of the instrument would shorten
• Guide the rope preferably in corners or guarded in channels to prevent pollution or accidental touch.
• Do not operate the sensor if the rope is buckled or damaged. A ripping of the rope may lead to
injuries or a damaging of the sensor.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SX Series and is the answer not in the manual?

Questions and answers

Summary of Contents for P3 International SX Series

  • Page 1 INSTALLATION GUIDE Draw wire sensors series SX50, SX80, SX120 FIRST STEPS This manual will make you familiar with the installation and operation of our draw wire sensors. Please read this manual carefully before initial operation! Unpacking and checking: Carefully lift the device out of the box by grabbing the housing. Do not pull the rope. After unpacking the device, check it for any visible damage as a result of rough handling during the shipment.
  • Page 2 MOUNTING Mounting standard rope outlet, rope outlet sideways top (S1) The sensor is usually installed by using the regular mounting plate. By disassembling the mounting plate, there are threads in the sensor housing for alternative installation: SX50: 2 x M3 und 2 x M5 SX80: 2 x M4 SX120: 2 x M4 11.5...
  • Page 3 ELECTRICAL CONNECTION ANALOG OUTPUT Cable output Connector output Voltage signal Potentiometer Voltage signal Current signal cable colours M12, male (teachable) Pin 1 Pin 2 Cursor Signal n. c. Signal Pin 3 Signal Pin 4 n. c. n. c. Signal Multi-functional line ELECTRICAL CONNECTION INCREMENTAL OUTPUT SX50, SX80, SX120: Connector output M12, male, 8 pins Signal...
  • Page 4 ELECTRICAL CONNECTION SSI SX50: Cable output Signal Status Cable colour shield SX80, SX120: Cable output Signal Status Cable colour shield SX80, SX120: Connector output M12, male, 8 pins Signal shield SX80, SX120: Connector output M23, male, 12 pins Signal Signal Status n.
  • Page 5 ELECTRICAL CONNECTION PROFIBUS SX50, SX80, SX120: cable gland radial (removable bus terminal cover) Bus IN Bus OUT Signal Terminal The shield of the connection cable must be connected over a large area via the cable gland. SX50, SX80, SX120: 3 x Connector output M12 Signal n.
  • Page 6: Incremental Output

    ACCESSORIES CABLE Cable with mating connector M12 (female), 4 poles Cable colour K4P2M-S-M12 2 m, straight connector, IP67, shielded K4P5M-S-M12 5 m, straight connector, IP67, shielded K4P10M-S-M12 10 m, straight connector, IP67, shielded K4P2M-SW-M12 2 m, angular connector, IP67, shielded K4P5M-SW-M12 5 m, angular connector, IP67, shielded K4P10M-SW-M12...
  • Page 7 ACCESSORIES CABLE Digital output SSI: Cable with mating connector M23 (female), 12 poles K12P02M-S-M23-SSI 2 m, straight connector, shielded K12P05M-S-M23-SSI 5 m, straight connector, shielded K12P10M-S-M23-SSI 10 m, straight connector, shielded K12P15M-S-M23-SSI 15 m, straight connector, shielded Cable colour GY-PK RD-BU Digital output CANopen: Cable with mating connector M12 (female), 5 poles...
  • Page 8: Warning Notices

    WARNING NOTICES • Do not try to open the device. The stored energy of the spring drive may lead to injuries when being mishandled. • Do not touch the rope when operating the sensor. • When mounting outdoors protect the sensor and the rope from icing at temperatures below 0 °C. •...
