AtlasIED IP-ZCM Installation Sheet

Introduction
The IP-ZCM Zone Controller Pro is an analog gateway for AtlasIED IP paging systems. This model is compatible with AtlasIED's GLOBALCOM
Syn-Apps SA-Announce Singlewire's InformaCast
©
AtlasIED commercial amplifiers and an 8Ω, 70.7V amplified output to drive small analog speaker zones. It also includes 2 general purpose inputs,
1 relay output, 1 line input and 1 microphone input for talk back applications. Power can be supplied via plug-in 24VDC PSU (AtlasIED recommends
model TSD-PS24V2500MA) or by 802.3af or 802.3at compliant PoE network switches. All control features of the IP-ZCM are software controlled.
Models IP-ZCM1RMK and IP-ZCM2RMK are also available from AtlasIED. Model IP-ZCM1RMK includes one zone controller unit and a rack mount kit.
Model IP-ZCM2RMK includes two zone controller units and a rack mount kit.
Functionality
Before installing, note the unit's MAC address found on the rear panel. Once connected to a network and powered, the IP-ZCM will boot up and
automatically obtain an IP address from a DHCP server on the network. Next, the unit will start the registration process to find the controller software.
Once the IP-ZCM identifies the software's location, it will send a registration request to the software and register. The MAC address of the IP-ZCM will
then show in the software. Please refer to the installation manual of the software for additional configuration settings.
After the module has received a valid DHCP lease, its HTTP page can be accessed by navigating to its IP address with any HTML5 compatable Internet
browser. This page will show its current firmware version and registration information.

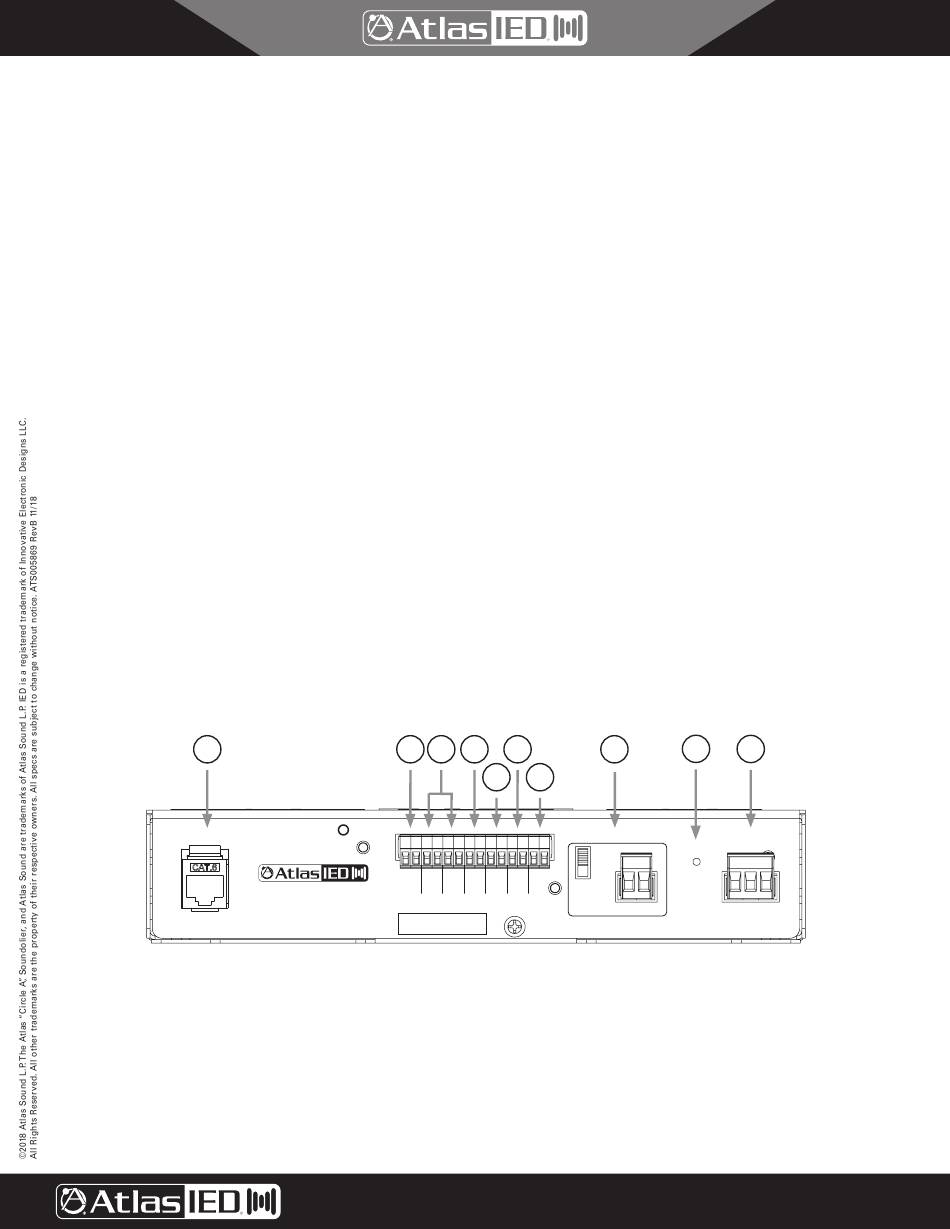

1. Power Input (WARNING: Do not use in conjunction with PoE)
2. General Purpose Inputs 1 and 2
3. Relay Output
4. Microphone Input
5. Line Level Input
6. Balanced Line Level Output
7 . Speaker Outputs for Primary and Secondary (each may be switched between 8Ω and 70.7V)
8. Network Input
9. Transformer Isolated Balanced Line Level Output
10. Service Button - This is the only push switch located on the rear panel.
• Press 1 sec - The unit's IP address will be broadcast (in English) through 8Ω or 70.7V speaker output, and both line level outputs
• Press 3 - 10 sec - Reboot
• Press 10+ sec - Factory Reset
8
Network
PoE 802.3 AF/T
Compliant
IP-ZCM
IP-to-Analog Gateway Zone Controller Installation Sheet
software, and SIP standalone operation. The IP-ZCM provides a line level output to connect to
©
IP-ZCM - Silk Screen
ATS005841 RevA 9/18
1
24VDC Input Cannot Be Used With PoE
Activity
– + – + – + – + – + – + – +
24VDC
1A
IP-ZCM
Zone Controller
MAC Address
1601 Jack McKay Blvd. • Ennis, TX 75119
800.876.3333 • AtlasIED.com
Designed and Assembled in the USA
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
1 Color: White
2 3 5
4 6
Speaker Output
70.7V
8Ω
GPI GPI RELAY MIC LINE LINE
Type
1 2 OUT IN IN OUT
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
10
7 9
Line Out
Service
– + + – G
