WINDOW AIR CONDITIONER

Owner's Manual

Please Read and Save These Instructions

OWH051CE4A

OWH061CE4A

3813-090

3813-091

Table of Contents

Need help?

Do you have a question about the OWH051CE4A and is the answer not in the manual?

Questions and answers

Summary of Contents for Omnimax OWH051CE4A

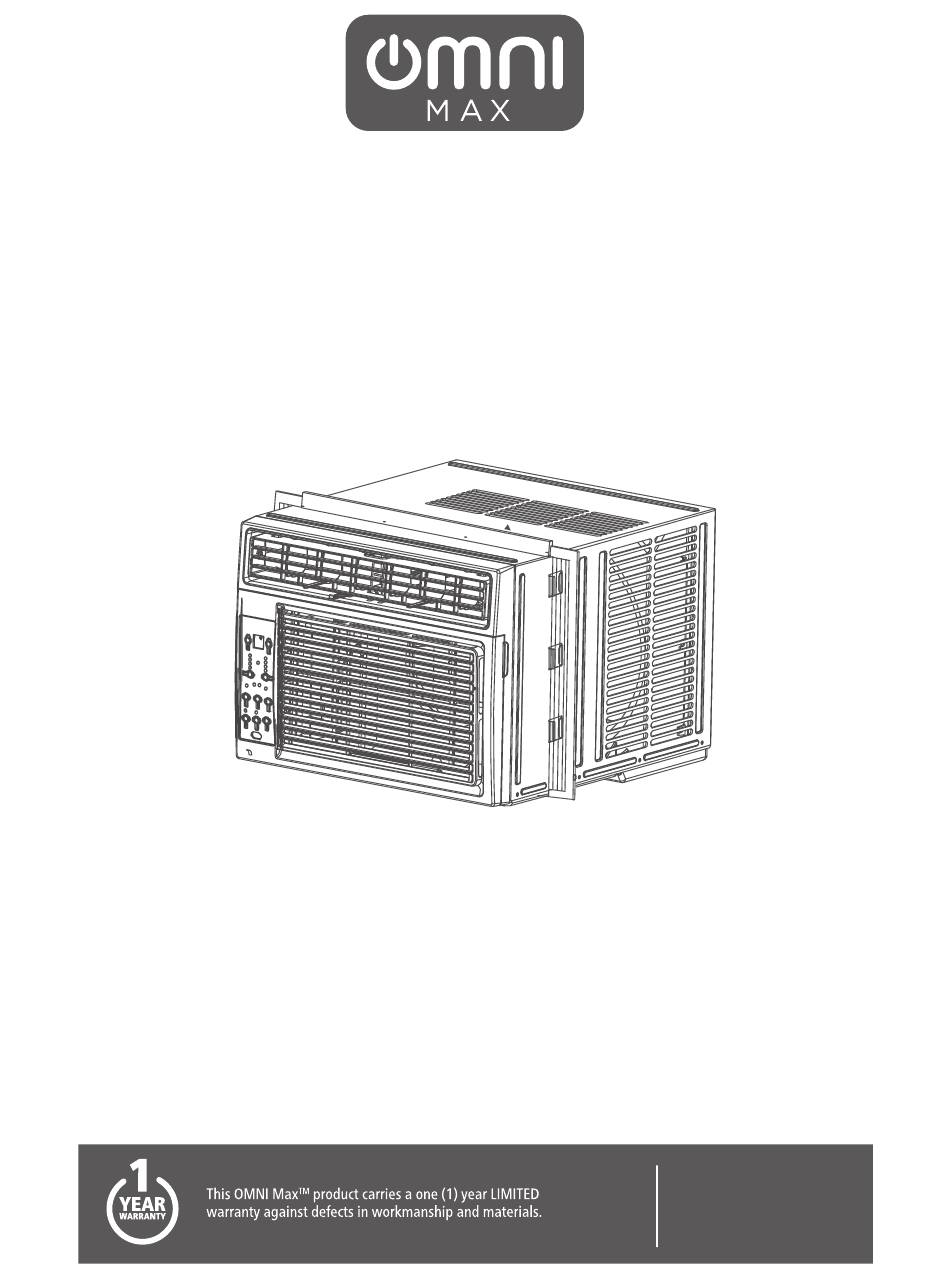

Page 1 3813-090 3813-091 WINDOW AIR CONDITIONER OWH051CE4A OWH061CE4A Owner’s Manual Please Read and Save These Instructions...
Page 2 CONTENTS 2. OPERATING INSTRUCTIONS REMOTE CONTROLLER INSTRUCTIONS...
Page 3: Safety Precautions
SAFETY PRECAUTIONS grounding place...
Page 4 SAFETY PRECAUTIONS...
Page 5: Operation Of Current Device
SAFETY PRECAUTIONS Operation of Current Device...
Page 6 SAFETY PRECAUTIONS (Required for R32/R290 units only)
Page 7 SAFETY PRECAUTIONS This symbol shows that a service personnel should be handling this equipment with reference to the installation manual. This symbol shows that information is available such as the operating manual or installation manual. WARNINGS (for using R290/R32 refrigerant only) 1.Transport of equipment containing flammable refrigerants 2.Marking of equipment using signs 3.Disposal of equipment using flammable refrigerants...
Page 8 SAFETY PRECAUTIONS 7.Repairs to sealed components...
Page 9 SAFETY PRECAUTIONS Repair to intrinsically safe components Cabling 10. Detection of flammable refrigerants 11. Leak detection methods 12. Removal and evacuation...
Page 10 SAFETY PRECAUTIONS 13.Charging procedures 14.Decommissioning...
Page 11 SAFETY PRECAUTIONS 15.Labelling 16.Recovery...
Page 12: Normal Sounds
OPERATING INSTRUCTIONS Normal Sounds OWH051CE4A/OWH061CE4A High Pitched Sound Move arrow to point to Sound of Rushing Air Trickling Sound compressor as shown In front of the unit, you Droplets of water may hear the sound of hitting condenser rushing air being during normal moved by the fan.
Page 13: Keypad Features
OPERATING INSTRUCTIONS panel The unit can be controlled by the unit control alone or with the remote controller. Key Pad Features : (ON/OFF) button The unit will initiate automatically the Energy saver function under Cool, Dry, Auto(only Auto-Cooling and Auto-Fan) modes. Display NOTE: If the unit breaks off unexpectedly due to a power...
Page 14 OPERATING INSTRUCTIONS Key Pad Features : ( FAN SPEED button) Used to select the Fan Speed in four steps-Auto, Low or High . Each time the button is pressed, the fan speed mode is shifted. On Dry mode, the fan is controlled at low speed automatically.
Page 15: Additional Things You Should Know
OPERATING INSTRUCTIONS LED display: Shows the set temperature in C or F and the Auto-timer settings.While on Fan only mode,it shows isplay the room temperature. Error codes: AS-Room temperature sensor error-Unplug the unit and plug it back in.If error repeats, call for service. NOTE:In Fan only mode,it will display LO or HI .
Page 16: Installation Instructions
INSTALLATION INSTRUCTIONS Fig.D INTERIOR WALL (For Vinyl-Clad (For wooden windows) windows) Top Rail Hardware NOTE: over 10,000 BTU/hr. t for models with a power of less than 10,000 BTU. Fig.F...
Page 17: How To Install
INSTALLATION INSTRUCTIONS How To Install NOTE: Fig.1 Fig.2 NOTE: Fig.3 Fig.4...
Page 18 INSTALLATION INSTRUCTIONS NOTE: Fig.5 Fig.6 NOTE Fig.7 Fig.8...
Page 19 INSTALLATION INSTRUCTIONS Fig.9 Fig.10...
Page 20 INSTALLATION INSTRUCTIONS If AC is Blocked by Stor m W indow Removing AC From Window Fig.11...
Page 21: Care And Cleaning
CARE AND CLEANING CAUTION Air Filter Cleaning Cabinet Cleaning Winter Storage...
Page 22: Troubleshooting Tips
TROUBLESHOOTING TIPS...
Page 23: Remote Controller Instructions
REMOTE CONTROLLER INSTRUCTIONS Remote Controller Specifications RG51G(1)/CEFU1 Model Rated Voltage 3.0V( Dry batteries R03/LR03×2) Signal Receiving Range Environment -5°C~60°C(23°F~140°F) Quick Start Guide AUTO COOL FIT BATTERIES SELECT MODE SELECT TEMPERATURE AUTO HIGH SELECT FAN SPEED POINT REMOTE TOWARD UNIT PRESS POWER BUTTON NOT SURE WHAT A FUNCTION DOES? Refer to the How to Use Basic Functions and How to Use Advanced Functions sections of this manual for a detailed description of how to use your air conditioner.
Page 24: Handling The Remote Controller
REMOTE CONTROLLER INSTRUCTIONS Handling the Remote Controller Inserting and Replacing Batteries CAUTIONS FOR USING REMOTE CONTROL Your air conditioning unit may come with two The device could comply with the local national batteries. Put the batteries in the remote control regulations.
Page 25: Buttons And Functions
REMOTE CONTROLLER INSTRUCTIONS Buttons and Functions Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual.
Page 26 REMOTE CONTROLLER INSTRUCTIONS Remote Screen Indicators Information are displayed when the remote controller is power up. Mode display COOL AUTO AUTO HEAT COOL HIGH Displayed when data transmitted. Displayed when remote controller is ON. HEAT Displayed when TIMER ON time is set Displayed when TIMER OFF time is set Shows set temperature or room temperature, or time under TIMER...
Page 27: How To Use Basic Functions
REMOTE CONTROLLER INSTRUCTIONS How to Use Basic Functions ATTENTION Before operation, please ensure the unit is plugged in and power is available. AUTO Mode Select AUTO mode Set your desired temperature Turn on the air conditioner MODE ON/OFF NOTE: 1. In AUTO mode, the unit will automatically select the COOL, or FAN function based on the set temperature.
Page 28: Setting The Timer
REMOTE CONTROLLER INSTRUCTIONS Setting the TIMER TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off. TIMER ON setting Press TIMER ON button to Press Temp. up or down button for Point remote to unit and wait 1sec, initiate the ON time sequence.
Page 29: How To Use Advanced Functions
REMOTE CONTROLLER INSTRUCTIONS How to Use Advanced Functions ENERGY SAVER function (some models) Press Energy saver button to initiate this function. This function is available on COOL, DRY, AUTO (only AUTO-COOLING and AUTO-FAN) modes. °C/°F (some models) Press this button will alternate the temperature display between the °C & °F. LED DISPLAY Press LED button LED DISPLAY...
Page 30 REMOTE CONTROLLER INSTRUCTIONS How to Use Advanced Functions SLEEP function SLEEP The SLEEP function is used to decrease energy use while you sleep (and don’t need the same temperature settings to stay comfortable). This function can only be activated via remote control. The sleep function is not available in Fan or Dry mode.Please refer to the OWNER’S MANUAL for more details.
Page 31 REMOTE CONTROLLER INSTRUCTIONS...
Page 32: Air Conditioner Limited Warranty
AIR CONDITIONER LIMITED WARRANTY 1-888-365-2230.
