2N Access Unit M
User manual
Firmware 2.43.x.x
Manuals for previous firmware versions can be found at https://wiki.2n.com/auml/inst/.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9161121 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 2N Telekomunikace 9161121

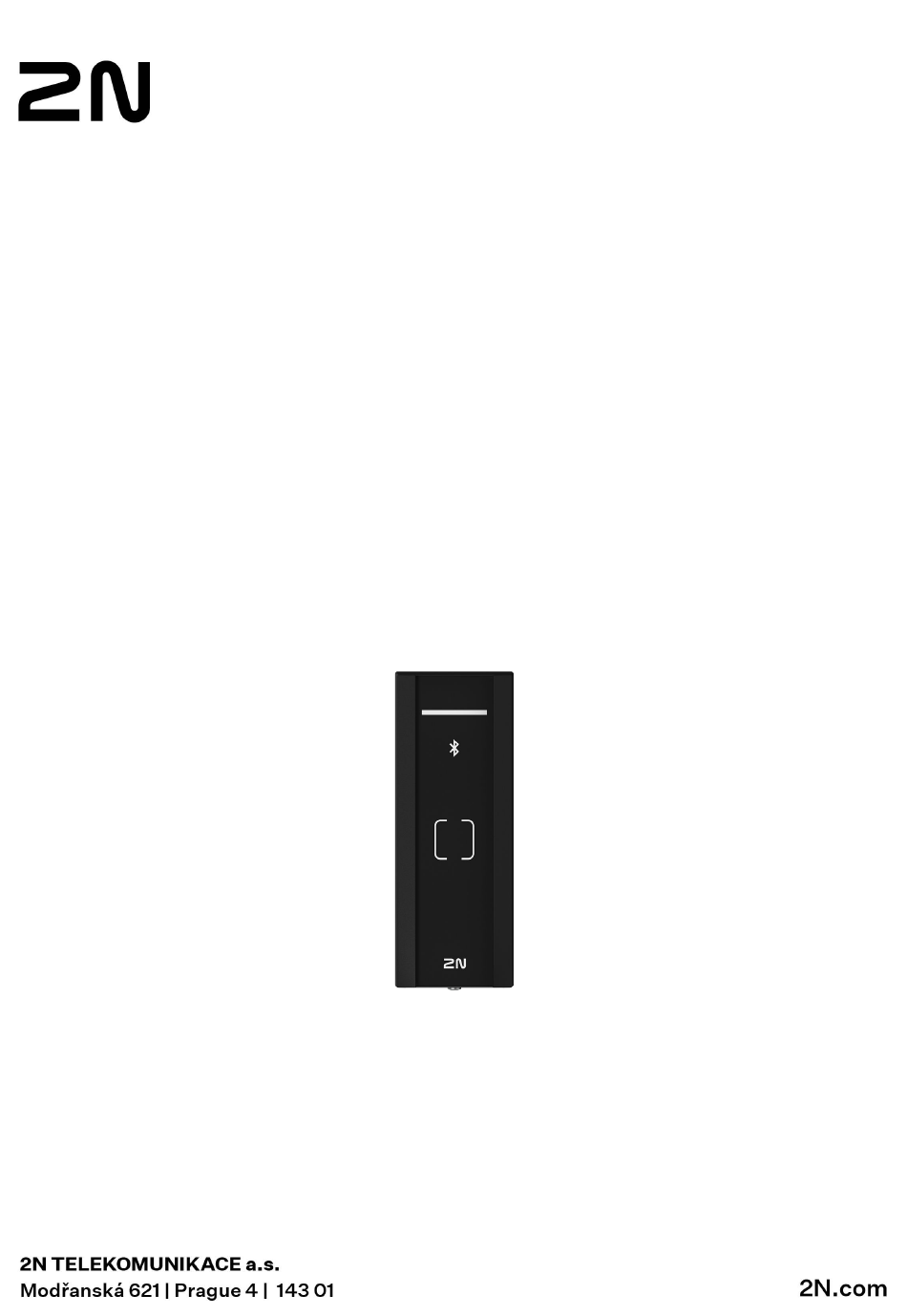

  • Page 1 2N Access Unit M User manual Firmware 2.43.x.x Manuals for previous firmware versions can be found at https://wiki.2n.com/auml/inst/.
  • Page 2: Table Of Contents

    Table of Contents Symbols and Terms Used ........................ 3 Product Description ........................4 Basic Features ..........................4 Product Versions ..........................5 Accessories ........................... 6 Accessories for Installation ......................6 Extenders ........................... 7 Power Supply ..........................8 Other accessories ........................8 Package Completeness Check ......................
  • Page 3: Symbols And Terms Used

    Symbols and Terms Used Symbols and Terms Used The following symbols and pictograms are used in the manual: DANGER Always abide by this information to prevent persons from injury. WARNING Always abide by this information to prevent damage to the device. CAUTION Important information for system functionality.
  • Page 4: Product Description

    Product Description Product Description In this section, we introduce the 2N Access Unit M product, outline its application options and highlight the advantages following from its use. Basic Features 2N Access Unit M is an elegant and reliable IP system equipped with a number of useful functions. 2N Access Unit M is designed as a robust, mechanically resistant access system, which withstands any weather conditions without requiring additional accessories.
  • Page 5: Product Versions

    Product Description Product Versions Part No. 9161121 Axis Part No. 02909-001 2N Access Unit M 13.56 MHz, NFC ready Combining an access reader and a controller, the device is used for access control inside and outside of buildings. The device is used for reading RFID cards in the 13.56 MHz bandwidth with the NFC support.
  • Page 6: Accessories

    Product Description Part No. 9161151 Axis Part No. 02911-001 2N Access Unit M Bluetooth & RFID – 125 kHz, 13.56 MHz, NFC Combining an access reader, a touch keypad and a controller, the device is used for access control inside and outside of buildings. The device is used for reading RFID cards in the 125 kHz and 13.56 MHz bandwidths with the NFC support.
  • Page 7: Extenders

    Product Description Part No. 916121 Axis Part No. 02940-001 Flush Mounting Box The flush mounting box is used for connection and storage of cables below the device. Part No. 916122 Axis Part No. 02932-001 Mounting backplate The wall mounting backplate is used for connection and storage of cables below the device.
  • Page 8: Power Supply

    Product Description Power Supply Part No. 91378100E (with EU cable) Part No. 91378100US (with US cable) Axis Part No. 01403-001 One-port PoE injector For intercom supply via Ethernet cable where the PoE switch is absent. Part No. 91341481E (with EU cable) Part No.
  • Page 9 Product Description Part No. 9159013 Axis Part No. 02523-001 Departure button The departure button is connected to the device logic input for opening the door from inside the building. Part No. 9159012 Axis Part No. 01388-001 Magnetic door contact Set for installation on a door, enabling the status of door opening to be ascertained.
  • Page 10 Product Description Part No. 9134166E Axis Part No. 01396-001 RFID chip fob EM, 125 Hz RFID chip fob, type EM4100, 125 kHz. Part No. 11202601 Axis Part No. 02787-001 RFID chip card MIFARE DESFire, 13.56 MHz RFID chip fob, type MIFARE DESFire EV3 4 K, 13.56 MHz (ISO/ IEC14443A).
  • Page 11 Product Description Suitable for system administration and adding of 13.56 MHz/125 kHz cards and Android devices with NFC/HCE support using the device web configuration or theAccess Commander. Suitable for uploading of MIFARE DESFire cards into the PICard Commander encryption application. The following RFID cards can be read: Supported RFID cards 125 kHz: •...
  • Page 12: Package Completeness Check

    Product Description • Mobile Key • 2N PICard Part No. 9137410E Axis Part No. 01397-001 External IP relay, 1 output Stand-alone IP relay, which can be controlled from an intercom via HTTP commands and helps control devices from an unlimited distance. Part No.
  • Page 13: Package Completeness Check For Installation Accessories

    Product Description 2N Access Unit M Certificate of ownership Quick Start manual Metal wall holder (screwed to the device) 8 x 40 mm dowel 4.5 x 40 mm flat head screw with washer M 3 x 8 mm stainless steel lens head screw for fitting device in holder (ISO 14583) T10 and T20 dual Torx key Package Completeness Check for Installation Accessories The flush mounting box package for 2N Access Unit M includes:...
  • Page 14: Installation

    Installation Installation Mechanical Installation Installation Conditions Make sure that the following 2N Access Unit M installation conditions are met. • There must be enough space for the device installation. • Make sure that the dowel holes have the required diameter. If the diameters are too large, the dowels may get loose! Use the mounting glue to secure the dowels if necessary.
  • Page 15: Surface Installation

    Installation CAUTION • When the proper installation instructions are not met, water might get in and destroy the electronics. As the device circuits are constantly under voltage water leakage causes electrochemical reaction. The manufacturer‘s warranty shall be void for products dam- aged in this way! •...
  • Page 16 Installation What you need for mounting: • 2N Access Unit M • Metal wall holder (screwed to the device) Download the drilling template from 2N.com.
  • Page 17: Surface Installation On Mounting Backplate

    The mounting backplate is used for placing cables below the device 2N Access Unit M during surface installation. NOTE Shortening the LAN cable in units Part No. 9161121, 9161141, 9161151 and 9161161 shall not render the warranty null and void.
  • Page 18 Installation What you need for mounting: • 2N Access Unit M • Mounting backplate (Part No. 916122) • Metal wall holder (screwed to the device) Download the drilling template from 2N.com.
  • Page 19 Installation WARNING Do not handle the screws on the device back side! Prepare dowel holes on a selected place and in a selected height using a drilling template shown on the package. Cut a cable installation hole in the backplate.
  • Page 20: Flush Mounting

    The flush mounting box allows you to place cables in the wall below 2N Access Unit M and mount the device. NOTE Shortening the LAN cable in units Part No. 9161121, 9161141, 9161151 and 9161161 shall not render the warranty null and void.
  • Page 21 Installation What you need for mounting: • 2N Access Unit M • Flush mounting box (Part No. 916121) • Metal wall holder (screwed to the device) Download the drilling template from 2N.com.
  • Page 22 Installation...
  • Page 23 Installation WARNING Do not handle the screws on the device back side!
  • Page 24: Electric Installation

    Installation Make a hole of the size of 1300 (h) x 400 (w) x 650 (d) mm for the mounting box installation. Remove the box cover and the cable installation blank. Replace the cover on the box to be used as a walling spacer. If the box location is convenient, wall the box in.
  • Page 25: External Power Supply

    Current consumption [A] Available power output [W] Cabling Description Cable connection for Part Nos. 9161121, Cable connection for Part Nos. 9161141, 9161151, 9161161 916112, 916114, 916115, 916116 The LAN cable is RJ-45 female terminated. All the available cables are 35 cm long.
  • Page 26 Switch led. RESET RESET / FACTORY RESET button. The table below includes the device cabling color marking. The colors are different for different device models: Part No. 9161121, yellow NO, pink "+", orange "+", red "+", white "+", 9161141, brown NC, gray blue "−"...
  • Page 27: Cable Connection

    Installation WARNING The 12V output is used for lock connection. If the device is installed in a location where there is a danger of unauthorized access (building front, e.g.), we strongly recommend the use of the 2N Security Relay (9159010, 01386-001) to ensure the maximum installation security.
  • Page 28 Installation Power Consumption for Device Versions State Part Nos. Part Nos. Part Nos. Part Nos. 916112/9161121 916114/9161141 916115/9161151 916116/9161161 Axis Part No. Axis Part No. Axis Part No. Axis Part No. 02393-001/02909-001 02394-001/02910-001 02395-001/02911-001 02396-001/02912-001 At re- 1.6 W 1.5 W 1.5 W...
  • Page 29: Overvoltage Protection

    Installation State Part Nos. Part Nos. Part Nos. Part Nos. 916112/9161121 916114/9161141 916115/9161151 916116/9161161 Axis Part No. Axis Part No. Axis Part No. Axis Part No. 02393-001/02909-001 02394-001/02910-001 02395-001/02911-001 02396-001/02912-001 ture mode OUT1 maxi- possi- load Audio 0.7 W 0.7 W 0.7 W...
  • Page 30 Installation Examples of Overvoltage Protection Installation Overvoltage protection installation diagram for a device installed on the building facade and cables outside the building...
  • Page 31 Installation Overvoltage protection installation diagram for a device installed on the building facade and cables inside the building...
  • Page 32 Installation Overvoltage protection installation diagram for a device and cables installed outside the building...
  • Page 33: Brief Guidelines

    Brief Guidelines Brief Guidelines • Device Configuration Interface Access (p. 33) • Configuration via Hardware (p. 34) • IP Address Retrieval (p. 34) • Firmware Update (p. 36) • Device Restart (p. 36) • Factory Default Reset (p. 37) Device Configuration Interface Access 2N Access Unit M is configured via the web configuration interface.
  • Page 34: Configuration Via Hardware

    Brief Guidelines It is recommended that a password is used that is difficult to break. It is not recommended that names, places or things, especially those closely related to the user, are used in the password. For increased password security, it is recommended that: •...
  • Page 35: Ip Address Retrieval Using 2N Network Scanner

    Brief Guidelines IP Address Retrieval Using 2N Network Scanner The application helps you find the IP addresses of all the 2N devices in the LAN. Download 2N Network Scanner from the 2N.com website. Make sure that Microsoft .NET Framework 2.0 is installed for successful app installation.
  • Page 36: Firmware Update

    Brief Guidelines It is recommended that a password is used that is difficult to break. It is not recommended that names, places or things, especially those closely related to the user, are used in the password. For increased password security, it is recommended that: •...
  • Page 37: Factory Default Reset

    Brief Guidelines Factory Default Reset Reset the device factory default values via software in System > Maintenance Default reset. Follow the instructions below 2N Access Unit M to reset the factory default values via hardware: Factory Default Reset Press and hold the RESET button.
  • Page 38: Device Control

    Device Control Device Control 2N Access Unit M is a single-module access system available in several versions. All the versions include an integrated card reader module, which helps control access using an RFID card. With additional software settings, functions other than the door lock switch can be RFID card controlled too. The device control depends on the product version: •...
  • Page 39: Maintenance - Cleaning

    Maintenance - Cleaning Maintenance - Cleaning 2N Access Unit M contains no environmentally harmful components. Dispose of the device in accordance with the applicable legal regulations. 2N Access Unit M contains no environmentally harmful components. Dispose of the device in accordance with the applicable legal regulations.
  • Page 40: Troubleshooting

    Troubleshooting Troubleshooting Refer to faq.2n.com for the most frequently solved problems.
  • Page 41: Technical Parameters

    Technical Parameters Technical Parameters Power Supply Types: IEEE 802.3af (Class 0, max. 12.95 W) External supply 12 V ± 1 V / 1 A DC WARNING 2N Access Unit M cannot be fed from an external power supply and PoE at the same time. A combined supply might result in a device damage.
  • Page 42 Technical Parameters Tamper Switch (part of the 2N Access Unit M main unit) Inputs Can be used in passive or active mode (-30 V to +30 V DC) • OFF = open or U > 1.5 V • ON = short-circuited or U <...
  • Page 43 Technical Parameters Mechanical Parameters Cover Robust ASA/PC construction material, which is also used for such car parts as lateral mirrors, radiator masks, etc. + chemically hardened 3 mm thick glass Dimensions (w x h x d) 132 x 50 x 27 mm Weight 460 g Operating temperature...
  • Page 44: Directives, Laws And Regulations - General Instructions And Cautions

    Directives, Laws and Regulations - General Instructions and Cautions Directives, Laws and Regulations - General Instructions and Cautions 2N Access Unit M conforms to the following directives and regulations: • 2014/53/EU for radio equipment • 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment •...
  • Page 45 / devices of other suppliers, the customer agrees that the 2N TELEKOMUNIKACE a.s. company shall not be held liable for any functionality limitation of such a product or any damage, loss or injury related to this potential functionali- ty limitation.
  • Page 46 Directives, Laws and Regulations - General Instructions and Cautions All applicable legal regulations concerning the product installation and use as well as provisions of technical standards on electric installations have to be obeyed. The manufacturer shall not be liable and responsible for damage or destruction of the product or damage incurred by the consumer in case the product is used and handled contrary to the said regulations and provisions.
  • Page 47 Directives, Laws and Regulations - General Instructions and Cautions • Operating conditions: UL 294 -40 °C to +60 °C Humidity: 10 – 95 % RH (non-condensing) • Wiring requirements: • UL listed or R/C AWM wires that have conductor range of AWG 24-14 shall be used for installation wiring.
  • Page 48: Safety Instructions

    The 2N product shall be used in compliance with local laws and regulations. • 2N Telekomunikace recommends using a shielded network cable (STP). • To use the 2N product outdoors, or in similar environments, it shall be installed in an approved outdoor housing.
  • Page 49 Directives, Laws and Regulations - General Instructions and Cautions Do not place used electric devices and battery packs into municipal waste containers. An undue disposal thereof might impair the environment! Deliver your expired household electric appliances and battery packs removed from them to dedicated dumpsites or containers or give them back to the dealer or manufacturer for environmental-friendly dispos- al.
  • Page 50 2N Access Unit M – User manual © 2N Telekomunikace a. s., 2024 2N.com...
