Summary of Contents for Vantage Hearth GAL COMPACT MOVFR-II

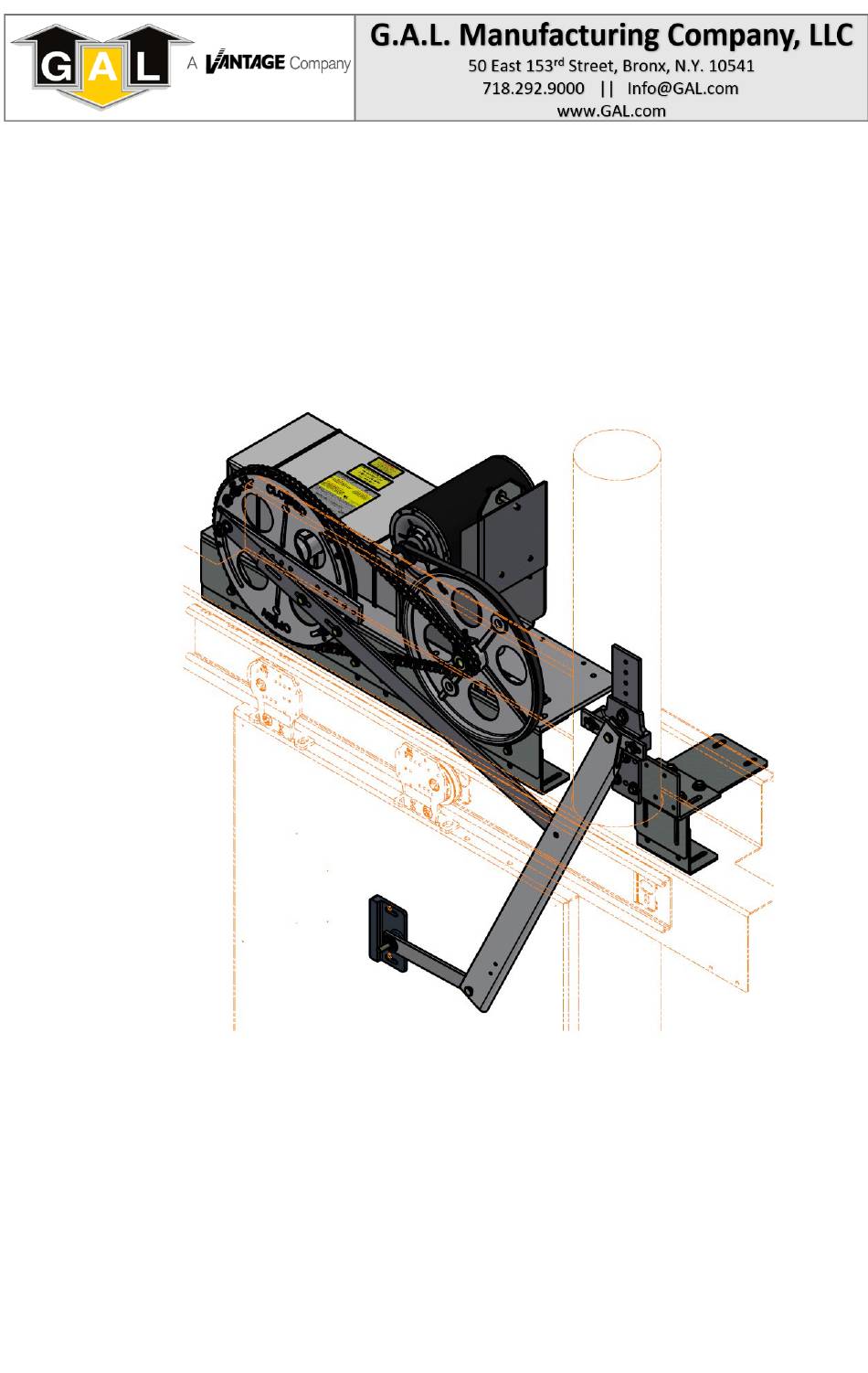

- Page 1 GAL COMPACT MOVFR-II Designed for Installing a GAL Operator in limited cartop space in Dover IVO Jack Cartop Installation Guide Rev A...
-
Page 3: Table Of Contents
GAL COMPACT MOVFR-II KIT Contents Contents ....................... 1 Introduction ....................1 Kit Limitations ..................... 2 General Installation and Setup ..............2 3.1. Preliminary Steps and Data Table Adjustment ........2 3.2. Compact Operator Setup..............3 3.3. Misc. MOVFR-II Setup ................. 5 Data21-5 ...................... -
Page 4: Kit Limitations
GAL COMPACT MOVFR-II KIT 2. Kit Limitations This kit is intended for the following applications. Please contact GAL to explore other options if your modernization falls outside the below. Side Slide openings • 30” to 48” wide door openings •... -
Page 5: Compact Operator Setup
GAL COMPACT MOVFR-II KIT 3.2. Compact Operator Setup Adjustable front support brackets are provided to raise the operator and pivot tower to be level with the rest of the cab. Both pieces of the Operator support brackets are identical. The... - Page 6 GAL COMPACT MOVFR-II KIT The location of the pivot tower depends on the Q dimension from the data table. The bottom support should be mounted first with the slots on the header base and the tapped holes facing you. The faces of the tower and operator support brackets should be even.
-
Page 7: Misc. Movfr-Ii Setup
GAL COMPACT MOVFR-II KIT 3.3. Misc. MOVFR-II Setup The remainder of the installation is identical to normal MOVFR-II setup. The crank arm length, “A” can be adjusted by the 2 bolts on the backside • of the leading-edge pulley, The connecting link length “C” is adjusted using the slots on the 2-piece •... - Page 8 GAL COMPACT MOVFR-II KIT • The false clutch bracket, “link and bracket” or “D” is attached to the door with (2) 5/16-18 bolts. These holes must be drilled on-site. The location of the holes is based on the “M” and “G”...
-
Page 9: Data21-5
GAL COMPACT MOVFR-II KIT 4. Data21-5 Data21-5 | DOC-0159N | G.A.L. Manufacturing Company LLC...
