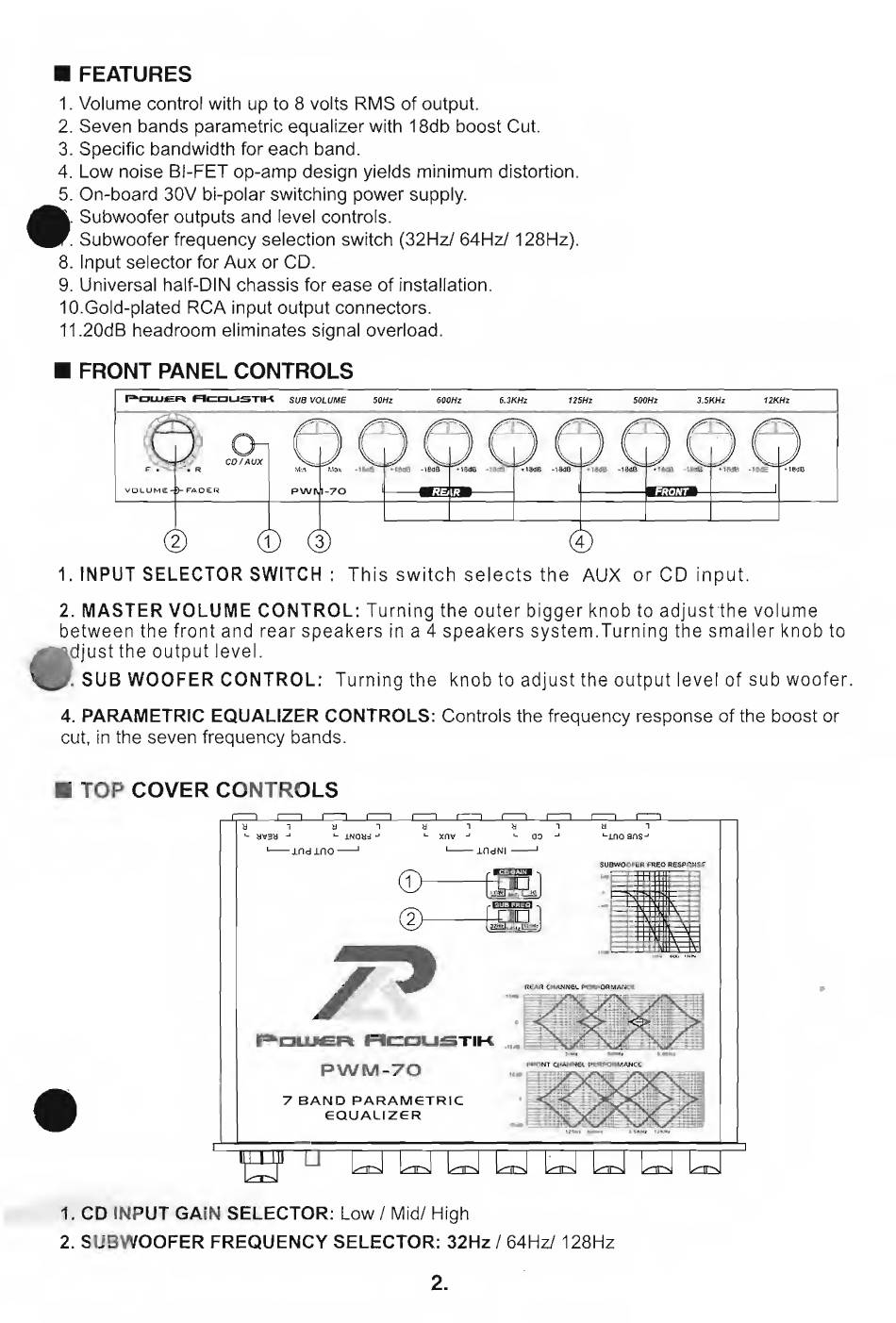

Power Acoustik PWM-70 Owner's Manual page 3

■ FEATURES
1. Volume control with up to 8 volts RMS of output.
2. Seven bands parametric equalizer with 18db boost Cut.
3. Specific bandwidth for each band.
4. Low noise BI-FET op-amp design yields minimum distortion.
5. On-board 30V bi-polar switching power supply.
Subwoofer outputs and level controls.
W-
Subwoofer frequency selection switch (32Hz/ 64Hz/ 128Hz).
8. Input selector for Aux or CD.
9. Universal half-DIN chassis for ease of installation.
10. Gold-plated RCA input output connectors.
11.20dB headroom eliminates signal overload.
■ FRONT PANEL CONTROLS
1.
INPUT SELECTOR SWITCH
: This switch selects the AUX or CD input
2. MASTER VOLUME CONTROL:
Turning the outer bigger knob to adjust the volume
between the front and rear speakers in a 4 speakers system.Turning the smaller knob to
"djust the output level.
SUB WOOFER CONTROL:
Turning the knob to adjust the output level of sub woofer.
4. PARAMETRIC EQUALIZER CONTROLS:
Controls the frequency response of the boost or
cut, in the seven frequency bands.
■ TOP COVER CONTROLS
1.
CD INPUT GAIN SELECTOR:
Low / Mid/ High
2. SUBWOOFER FREQUENCY SELECTOR: 32Hz
/ 64Hz/ 128Hz
