Summary of Contents for DIVAR LWL4CXBAL

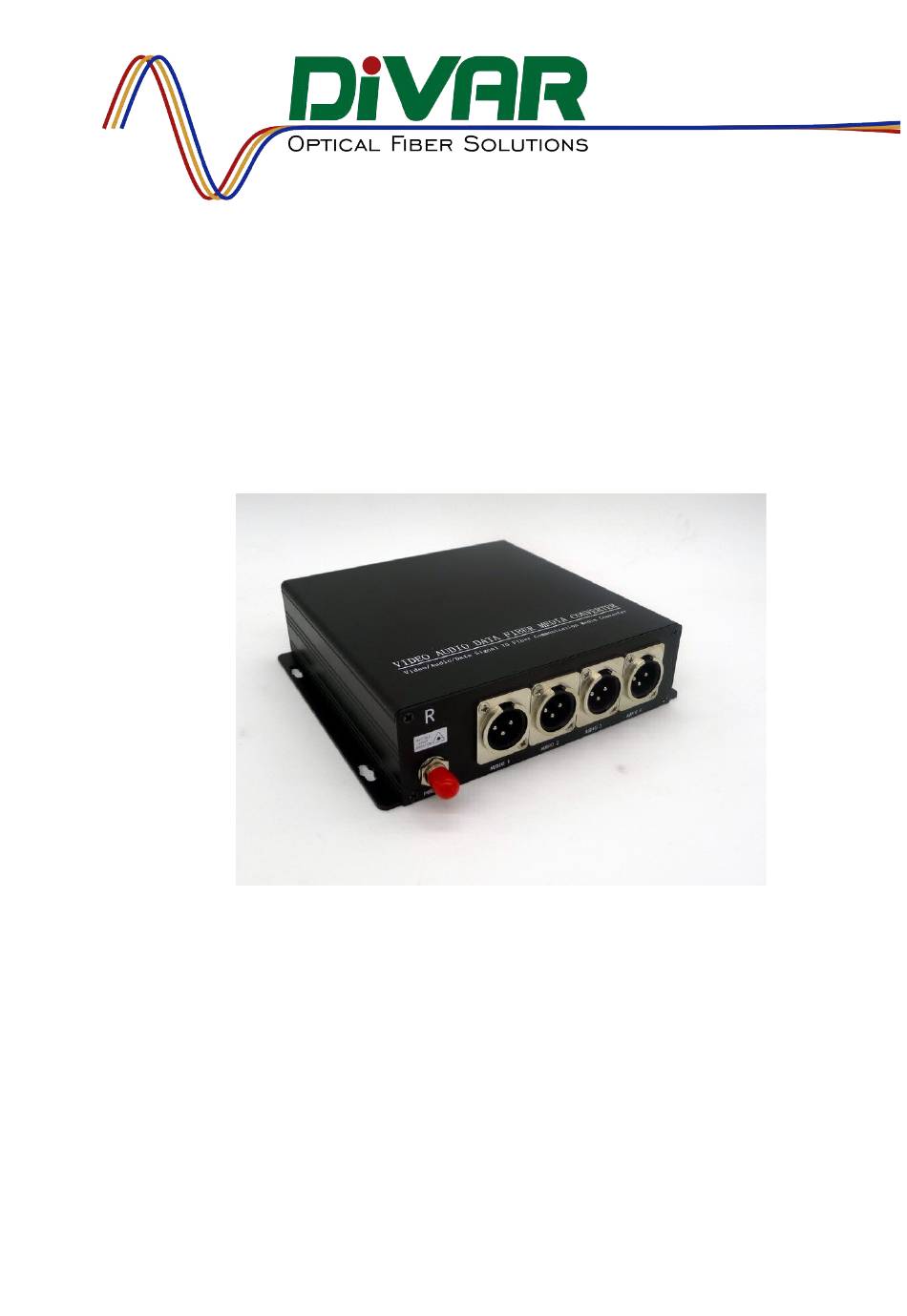

- Page 1 LWL4CXBAL USER MANUAL Line Audio over Fiber - uni-directional Import, Manufacturing and Distribution by vuetec.tv UG (haftungsbeschränkt) Hasselbusch 124a | Henstedt-Ulzburg | Germany +49 - 4193 - 880 3405 | www.vuetec.tv...
- Page 2 LWL4CXBAL LWL4CXBAL Line Audio over Fiber uni-directional The DIVAR LWL4CXMBAL fiber extender kit sends 2-channel, uni-directional, balanced mic and line level audio over a single fiber. The transmitter port 1 accepts MIC level signals. The system consists of a transmitter and receiver that support 16-bit digitally encoded broadcast audio for use on multimode or singlemode optical fiber.
-
Page 3: Specifications
Storage Temperature: -40°C ~ +85°C Relative Humidity: 0% ~ 95% (non-condensing) MTBF: >100,000 hours NOT FOR USE WITH IFB SYSTEMS WHERE AUDIO IS MODULATED WITH VOLTAGE NOT FOR USE WITH PHANTOM POWERED DEVICES DIVAR LWL4CXBAL Quad Audio over Fiber Page 3... - Page 4 1. Audio Line Input to Receiver Output 1 2. Audio Line Input to Receiver Output 2 3. Audio Line Input to Receiver Output 3 4. Audio Line Input to Receiver Output 4 DIVAR LWL4CXBAL Quad Audio over Fiber Page 4...
-
Page 5: Xlr Connector
The industry standard XLR connector is used for Audio at fiber transmission system. See pin-out below. XLR Connector Pin Female Male Pin 1 Audio Ground Audio Ground Pin 2 Balanced Audio + Balanced Audio + Pin 3 Balanced Audio - Balanced Audio - DIVAR LWL4CXBAL Quad Audio over Fiber Page 5... - Page 6 1. Audio Output 1 from Transmitter Line Input 2. Audio Output 2 from Transmitter Line Input 3. Audio Output 2 from Transmitter Line Input 4. Audio Output 2 from Transmitter Line Input DIVAR LWL4CXBAL Quad Audio over Fiber Page 6...
- Page 7 LWL4CXBAL Fiber Connector All DIVAR Fiber Optic devices are available with different fiber connectors. The user can select between following connectors. Type Description Order number SC is a snap-in connector with a 2.5 mm ferrule that LWLxxxxx-SC is widely used for it's excellent performance. Its shell is rectangular, adopted by the pin type and the structure of the coupling sleeve size.
-
Page 8: Power Supply
AC power adapters, similar to the shown above power supply below. Note: The LWL4CXMBAL features environmentally conscious packaging material to protect the LWL22CBAL system during transportation and can be used for temporary storage when better forms of storage are not available. DIVAR LWL4CXBAL Quad Audio over Fiber Page 8... -
Page 9: Setup Instructions
SEEN BY THE NAKED EYE TO THE FIBER AGAIN RENDERING THE SYSTEM USELESS, PLEASE CLEAN THE FIBER OPTICAL CONTACTS EVERYTIME PRIOR TO INSERTING THE CONNECTOR INTO THE JACK ON THE UNITS !!! FIBER OPTIC CLEANING KITS ARE AVAILABLE FROM YOUR DEALER/SUPPLIER !!! DIVAR LWL4CXBAL Quad Audio over Fiber Page 9... -
Page 10: Safety Precautions
• There are no user-serviceable parts inside the unit. If the unit requires service please contact your authorized dealer, or an authorized repair service company. DIVAR LWL4CXBAL Quad Audio over Fiber Page 10... -
Page 11: Conformity Declaration
The following national or international norms (or parts/clauses from this) and specifications were used: • DIN EN 6099 Verbindungsmaterial für Niederspannungsstromkreise für Haushalt und ähnliche Zwecke; Teil 1: Allgemeine Anforderungen • IEC 127-6 Geräteschutzsicherungen Henstedt-Ulzburg, 29.06.2016 Dipl. Ing. Erwin W. Lissy DIVAR LWL4CXBAL Quad Audio over Fiber Page 11... - Page 12 LWL4CXBAL DIVAR is a trademark of vuetec.tv UG Henstedt-Ulzburg Germany ©2016 vuetec.tv UG – All Rights reserved DIVAR LWL4CXBAL Quad Audio over Fiber Page 12...
