IM/OM Series
Industrial/Open-Frame Monitor
Manual Rev.:
Revision Date:
Part Number:
User's Manual
1.2
November 24, 2023
50M-P6000-1020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ADLINK Technology IM Series

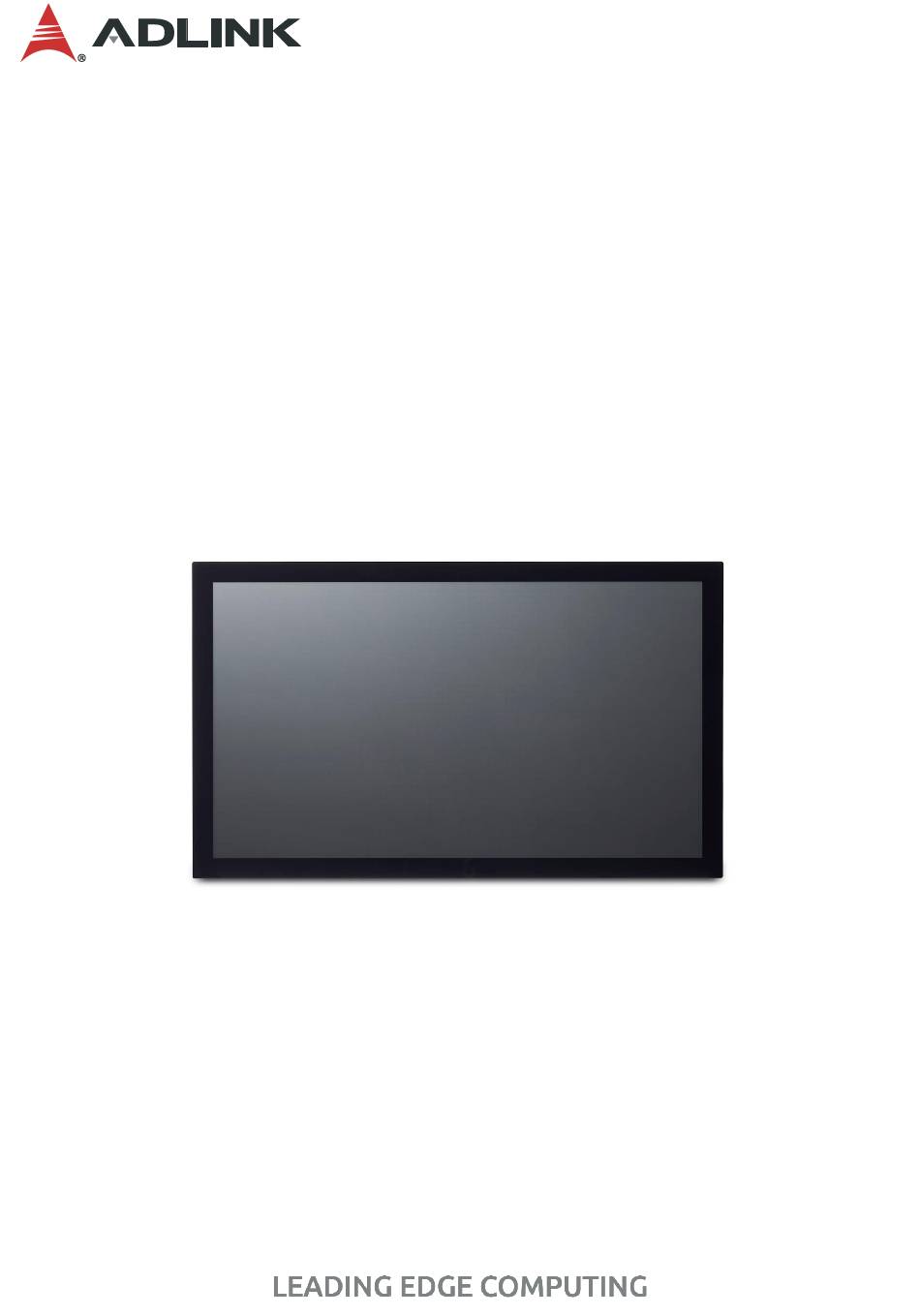

  • Page 1 IM/OM Series Industrial/Open-Frame Monitor User’s Manual Manual Rev.: Revision Date: November 24, 2023 Part Number: 50M-P6000-1020...

  • Page 2: Revision History

    Revision History Revision Description Date Initial release 2022-09-29 Add information for larger models 2023-03-28 Add Fullscreen and High-Brightness models 2023-11-24 Preface...

  • Page 3: Preface

    Preface Copyright Copyright © 2023 ADLINK Technology, Inc. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. Information to prevent minor physical injury, component damage, data loss, and/or program corruption when trying to complete a task.

  • Page 5: Table Of Contents

    1.2. Applications ........................1 1.3. Package Contents ......................2 1.4. Optional Accessories ..................... 2 Specifications ......................3 2.1. IM Series ........................3 2.2. OM Series (Fullscreen Models) ..................5 2.3. OM Series (Widescreen Models) ................... 6 Mechanical Layout ....................9 3.1.

  • Page 6: List Of Figures

    List of Figures Figure 1: IM-215-270/OM-070-270 I/O Connectors ................. 9 Figure 2: OM-320-430 I/O Connectors ..................... 9 Figure 3: IM-215 Mechanical Dimensions ....................14 Figure 4: IM-238 Mechanical Dimensions ....................14 Figure 5: IM-270 Mechanical Dimensions ....................15 Figure 6: OM-070 Mechanical Dimensions ....................15 Figure 7: OM-121 Mechanical Dimensions ....................16 Figure 8: OM-150 Mechanical Dimensions ....................16 Figure 9: OM-170 Mechanical Dimensions ....................17...
  • Page 7 IM/OM Series List of Tables Table 1: IM Series Specifications ......................3 Table 2: OM-070-190 Series Specifications ..................... 5 Table 3: OM-101-270 Series Specifications ..................... 6 Table 4: OM-320-430 Series Specifications ..................... 7 Table 5: IM-215-270/OM-070-270 OSD Button Functions ..............29 Table 6: OM-320-430 OSD Button Functions ..................30...
  • Page 8 This page intentionally left blank. viii Preface...

  • Page 9: Introduction

    Wide viewing angle support for both portrait and landscape modes • IP rating for water and dust protection • Up to 0°C to 60°C operating temperature (see Table 1: IM Series Specifications) • All new true-flat design with edge-to-edge front glass •...

  • Page 10: Package Contents

    1.3. Package Contents Please check that your package contains the items below. If you discover damaged or missing items, please contact your vendor. IM-215/215H/238/270 and OM-101/121/150/156/185/170/190/215/215H/238/270: • 1x DC power cable clamp • 1x Screw M3 (for use with DC power cable clamp) OM-320-430: •...

  • Page 11: Specifications

    IM/OM Series 2. Specifications 2.1. IM Series Table 1: IM Series Specifications IM-215 IM-238 IM-270 Model IM-215H Display 21.5” 23.8” 27” Size Resolution 1920x1080 Aspect Ratio 16:9 Color 16.7M 400 (215) Brightness (Nits w/touch) 1200 (215H) Backlight Life (Hours) 30,000...
  • Page 12 Specifications...

  • Page 13: Om Series (Fullscreen Models)

    IM/OM Series 2.2. OM Series (Fullscreen Models) Table 2: OM-070-190 Series Specifications Model OM-070 OM-121 OM-150 OM-170 OM-190 Display Size 7.0” 15.0” 17.0” 19.0” 12.1” Resolution 800x480 1024x768 (XGA) 1280x1024 Aspect Ratio Color 16.7M Brightness (w/touch) 400 nits 300 nits Backlight Life (Hours) 50,000 View Angle (U/D/R/L)

  • Page 14: Om Series (Widescreen Models)

    2.3. OM Series (Widescreen Models) Table 3: OM-101-270 Series Specifications OM-215 Model OM-101 OM-156 OM-185 OM-238 OM-270 OM-215H Display 18.5” 21.5” 23.8” 27.0” 10.1” 15.6” Size Resolution 1280x800 1920x1080 Aspect Ratio 16:10 16:9 Color 16.7M 240 nits 400 nits 400 nits (215) Brightness (w/touch) 200 nits 1200 nits (215H)

  • Page 15: Table 4: Om-320-430 Series Specifications

    IM/OM Series Table 4: OM-320-430 Series Specifications OM-430 Model OM-320 Display 32" 43" Size 1920 x 1080 Resolution Aspect Ratio 16:9 Color 16.7M Brightness (w/ touch) 400 nits 50,000 Backlight Life (Hrs) 89/89/89/89 Viewing Angle (U/D/R/L) 4000:1 Contrast Ratio Touchscreen 10-point, PCAP, Anti-fingerprint coating Bonding Air bonding...
  • Page 16 This page intentionally left blank. Specifications...

  • Page 17: Mechanical Layout

    IM/OM Series 3. Mechanical Layout 3.1. I/O Connectors HDMI Type-B Input Figure 1: IM-215-270/OM-070-270 I/O Connectors Figure 2: OM-320-430 I/O Connectors VGA Connector A 15-pin VGA connector is provided to connect the monitor to a computer. Pin No. Pin Name Signal Type Pin Assignment Analog In...
  • Page 18 DVI (OM-320-430 Only) A DVI connector is provided to connect the monitor to a computer. Pin No. Signal Pin No. Signal TMDS Data2- Hot Plug Detect TMDS Data2+ TMDS Data0- TMDSData0+ DDC Clock [SCL] DDC Data [SDA] Analog vertical sync 23 TMDS Clock + TMDS Data1- TMDS Clock -...
  • Page 19 IM/OM Series HDMI Connector An HDMI Type-A socket is provided to connect the monitor to a computer. Pin No. Pin Name Signal Type Pin Assignment TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock +...
  • Page 20 Pin No. Pin Name Signal Type Center Pin +12V @5A Power Use the cable clamp provided in the package contents to secure the DC power connector to the rear panel as shown below (IM Series shown, OM Series similar). Mechanical Layout...
  • Page 21 IM/OM Series DC Power Connector (OM-320-430) A 2.5mm center pin DC barrel jack connector is provided for power input. Pin No. Pin Name Signal Type Center Pin +24V @5A Power Mechanical Layout...

  • Page 22: Mechanical Dimensions

    3.2. Mechanical Dimensions All dimensions are in mm. IM Series 3.2.1.1. IM-215 and IM-215H Figure 3: IM-215 Mechanical Dimensions 3.2.1.2. IM-238 Figure 4: IM-238 Mechanical Dimensions Mechanical Layout...

  • Page 23: Figure 5: Im-270 Mechanical Dimensions

    IM/OM Series 3.2.1.3. IM-270 Figure 5: IM-270 Mechanical Dimensions OM Series (4:3) 3.2.1.4. OM-070 Figure 6: OM-070 Mechanical Dimensions Mechanical Layout...

  • Page 24: Figure 7: Om-121 Mechanical Dimensions

    3.2.1.5. OM-121 Figure 7: OM-121 Mechanical Dimensions 3.2.1.1. OM-150 Figure 8: OM-150 Mechanical Dimensions Mechanical Layout...

  • Page 25: Figure 9: Om-170 Mechanical Dimensions

    IM/OM Series 3.2.1.1. OM-170 Figure 9: OM-170 Mechanical Dimensions 3.2.1.2. OM-190 Figure 10: OM-190 Mechanical Dimensions Mechanical Layout...

  • Page 26: Figure 11: Om-101 Mechanical Dimensions

    OM Series (16:9) 3.2.1.3. OM-101 Figure 11: OM-101 Mechanical Dimensions 3.2.1.4. OM-156 Figure 12: OM-156 Mechanical Dimensions Mechanical Layout...

  • Page 27: Figure 13: Om-185 Mechanical Dimensions

    IM/OM Series 3.2.1.1. OM-185 Figure 13: OM-185 Mechanical Dimensions 3.2.1.2. OM-215 and OM-215H Figure 14: OM-215 Mechanical Dimensions Mechanical Layout...

  • Page 28: Figure 15: Om-238 Mechanical Dimensions

    3.2.1.2.1. OM-238 Figure 15: OM-238 Mechanical Dimensions 3.2.1.3. OM-270 Figure 16: OM-270 Mechanical Dimensions Mechanical Layout...

  • Page 29: Figure 17: Om-320 Mechanical Dimensions

    IM/OM Series 3.2.1.1. OM-320 Figure 17: OM-320 Mechanical Dimensions 3.2.1.1. OM-430 Figure 18: OM-430 Mechanical Dimensions Mechanical Layout...

  • Page 30: Mounting

    3.3. Mounting This section includes details for VESA and panel mounting options. Risk of physical injuries and / or property damage: When mounting the device, use four M4 x 6mm screws (IM-215-270/OM-101-270) or four M6 x 7mm (OM-320-430) to mount the VESA bracket to the rear of the device. Tighten all four screws firmly to support the weight of the device.

  • Page 31: Figure 20: Om-070 Cut Out Dimensions

    IM/OM Series Panel Mounting (OM-070-270 only) The OM-070-270 can be panel-mounted with 14 mounting clips (not included). Make sure there is adequate space behind the panel for ventilation, and that the panel material and thickness can support the weight of the device. Step 1: Cut the panel opening using the appropriate cutout dimensions.

  • Page 32: Figure 23: Om-170 Cut Out Dimensions

    Figure 23: OM-170 Cut Out Dimensions Figure 24: OM-190 Cut Out Dimensions Figure 25: OM-101 Cut Out Dimensions Mechanical Layout...

  • Page 33: Figure 26: Om-156 Cut Out Dimensions

    IM/OM Series Figure 26: OM-156 Cut Out Dimensions Figure 27: OM-185 Cut Out Dimensions Figure 28: OM-215/OM-215H Cut Out Dimensions Mechanical Layout...

  • Page 34: Figure 29: Om-238 Cut Out Dimensions

    Figure 29: OM-238 Cut Out Dimensions Figure 30: OM-270 Cut Out Dimensions Step 2: If rear access will be limited after installation, attach I/O cables to the device before installing into the panel (see I/O Connectors on page 9). Step 3: Place the device into the panel cutout. Figure 31: Insert Monitor into Cut Out Mechanical Layout...

  • Page 35: Figure 32: Secure Monitor With Mounting Clips

    IM/OM Series Step 4: Insert the mounting clips into the slots on the sides of the device as shown. Hand-tighten the mounting clips with a Phillips-head screwdriver to secure it to the panel. Do not overtighten the clips to avoid damaging the device enclosure. Figure 32: Secure Monitor with Mounting Clips Panel Mounting (OM-320-430 only) The OM-320-430 can be panel-mounted using the screw holes on the back of the device.

  • Page 37: On-Screen Display (Osd)

    IM/OM Series 4. On-screen Display (OSD) This chapter describes the IM/OM Series OSD features. 4.1. OSD Buttons OSD buttons are located on the rear panel of the monitor. IM-215-270/IM-215H/OM-070-270/OM-215H OSD Buttons Figure 33: IM/OM Rear Panel OSD Buttons Table 5 IM-215-270/IM-215H/OM-070-270/OM-215H OSD Button Functions Button Function Remark...

  • Page 38: Figure 34: Om-320-430 Rear Panel Osd Buttons

    OM-320-430 OSD Buttons Figure 34: OM-320-430 Rear Panel OSD Buttons Table 6: OM-320-430 OSD Button Functions Button Function Remark Auto Execute Autotune (VGA only) Press to execute autotune after clicking the "Auto" key. OSD menu Press to open the OSD menu. Menu Enter/select/deselect Press to enter a submenu or select an item.

  • Page 39: Osd Menus

    IM/OM Series 4.2. OSD Menus OM-070/121/150/170/190/215H The table below lists the OSD menu structure and items. Table 7: OSD Menu Overview for OM-070/121/150/170/190/215H Main Menu Submenu Item Value/Range Default Value Comment Auto Toggle Off/On Toggle Auto Dimming feature Dimming Brightness Slider 0-100 Adjust brightness...
  • Page 40 4.2.1.1. Picture Menu Submenu Auto Dimming Brightness Contrast Auto Color Controls BLU to adjust Brightness controls Contrast controls gray Automatically adjust Description luminance. gray level offset to level gain to affect color. affect screen darkness. screen brightness. Values: Off/On Values: 0-100 Values: 0-100 4.2.1.1.
  • Page 41 IM/OM Series 4.2.1.1. Input Menu Submenu Auto Select HDMI Description Automatically selects available Input source is VGA. Input source is HDMI. input source to display. 4.2.1.2. Display Menu Submenu HPosition VPostion Clock Phase Aspect Ratio Auto Adjust Description Adjust the Adjust the vertical Adjust VGA Adjust VGA...
  • Page 42 4.2.1.1. Other Menu OSD V Pos OSD Timeout OSD Rotation Submenu Transparency Menu Time OSD H Pos Reset Description Adjusts the Controls OSD Adjusts the Adjusts the Adjusts the Adjusts the Resets OSD transparency menu horizontal vertical time before roation of the user setting of the OSD timeout.
  • Page 43 IM/OM Series 4.2.1.3. Information Menu This menu displays the input source information. On-screen Display (OSD)

  • Page 44: Table 8: Osd Menu Overview For Om-101/156/185/215/238/270 And Im-215/238/270

    OM-101/156/185/215/238/270 and IM-215/238/270 The table below lists the OSD menu structure and items. Table 8: OSD Menu Overview for OM-101/156/185/215/238/270 and IM-215/238/270 Main Menu Submenu Item Value/Range Default Value Comment Backlight Slider 0-100 Adjust luminance Brightness Slider 0-100 Adjust brightness Picture Contrast Slider 0-100...
  • Page 45 IM/OM Series 4.2.1.4. Picture Menu Submenu Backlight Brightness Contrast Sharpness Controls BLU to adjust Brightness controls Contrast controls gray Adjusts image edge Description luminance. gray level offset to level gain to affect sharpness. affect screen darkness. screen brightness. Values: 0-100 Values: 0-100 Values: 0-100 Values: 0-4...
  • Page 46 4.2.1.6. Color Menu Submenu Temperature Saturation Auto Color Description Select color Adjust hue to affect Adjust saturation to Automatically tune the temperature. image color. affect image color. color parameter when input source is VGA. 9300K is cool 6500K is neutral 5800K is warm.
  • Page 47 IM/OM Series 4.2.1.8. Input Menu Submenu Auto Select HDMI Description Automatically selects available Input source is VGA. Input source is HDMI. input source to display. 4.2.1.9. Other Menu Submenu Reset Menu Time OSD H Pos OSD V Pos Language Transparency Description Resets OSD Controls OSD Adjusts the...

  • Page 48: Table 9: Osd Menu Overview For Om-320-430

    OSD Menus for OM-320-430 The table below lists the OSD menu structure and items. Table 9: OSD Menu Overview for OM-320-430 Main Default Submenu Item Value/Range Comment Menu Value Brightness Slider 0-100 Adjust brightness Contrast Slider 0-100 Adjust contrast Black level Slider 0-100 Adjust black level...

  • Page 49: Troubleshooting

    IM/OM Series 5. Troubleshooting In the event that you experience trouble with your monitor, check the following items before contacting the dealer from whom the monitor was purchased. The most common problems usually involve an incorrect connection from the graphics card to the monitor. We recommend that you also consult your graphics card user's manual during the troubleshooting procedure.

  • Page 50: Safety Instructions

    Safety Instructions Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use. • Please read these safety instructions carefully. • Please keep this User‘s Manual for later reference. •...

  • Page 51: Getting Service
