Delta-Therm DTC-110 Installation Instructions

OVERVIEW
PRECAUTIONS
COMPONENTS
OPERATION
DELTA-THERM Corporation, 6711 Sands Rd Ste A Crystal Lake, IL 60014
110°F Setpoint Line Sensing Thermostat device
The DTC-110 Thermostat senses pipe temperature. It is designed for single circuit
applications where Ground Fault and Temperature Maintenance are required. The
device is factory set at 110°F. The DTC-110 contains a UL Listed Class 2 Transformer,
a UL Recognized contactor, and a low voltage circuit board.
Installation must comply with local electrical codes.
•
All related components and this control should be properly rated for the specifi ed
•
location classifi cation.
The control must be installed by a qualifi ed electrician.
•

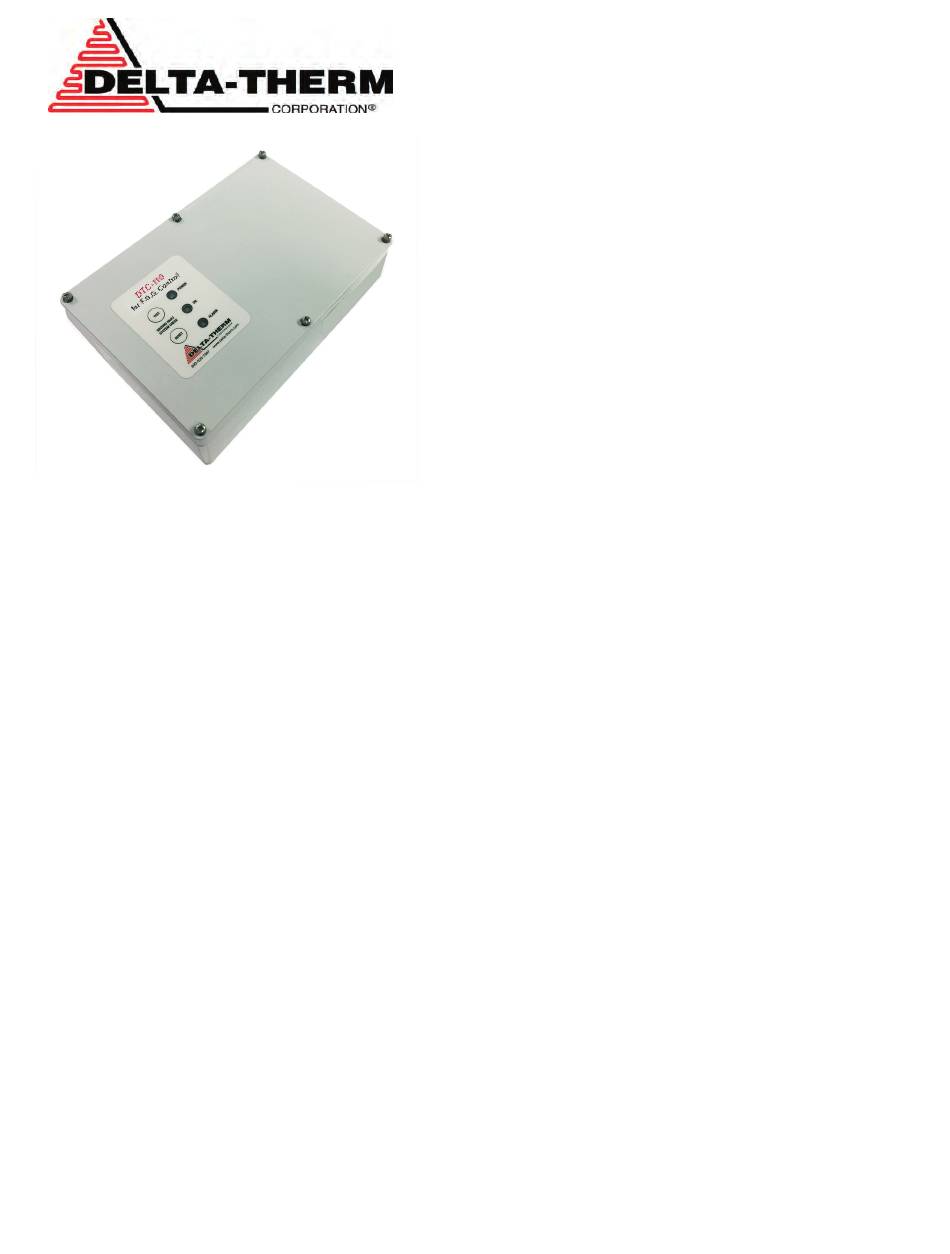

DTC-110 Thermostat
DTC-110TS Temperature Sensor
The DTC-110 is intended to control heating cable in Grease Waste applications. The
DTC-110 provides low voltage for an external temperature sensor. The thermostat will
activate when temperature falls below 110°F. The thermostat will remain on until the
temperature seen at the sensor rises above 113°F.
The thermostat can provide a low temperature alarm if required. The low temperature
alarm is factory set at 95°F. A jumper pin on the circuit board is used to select this function.
The thermostat will switch up to a 40 Amp load. The specified voltage is factory preset per
order information.
The thermostat provides alarm indicator for Ground Fault, Loss of Power, Low
Temperature, and Sensor Wire Fault. The enclosure cover provides visual indication of
Power, Activation and Alarm along with Ground Fault Test and Reset buttons.
Installation Instructions
with 30mA Ground Fault Protection
INSTALLATION begins on the next page
(847) 526-2407 Fax (847) 526-4456
1
DTC-110
(800) 526-7887
