Summary of Contents for Aerpro G5100

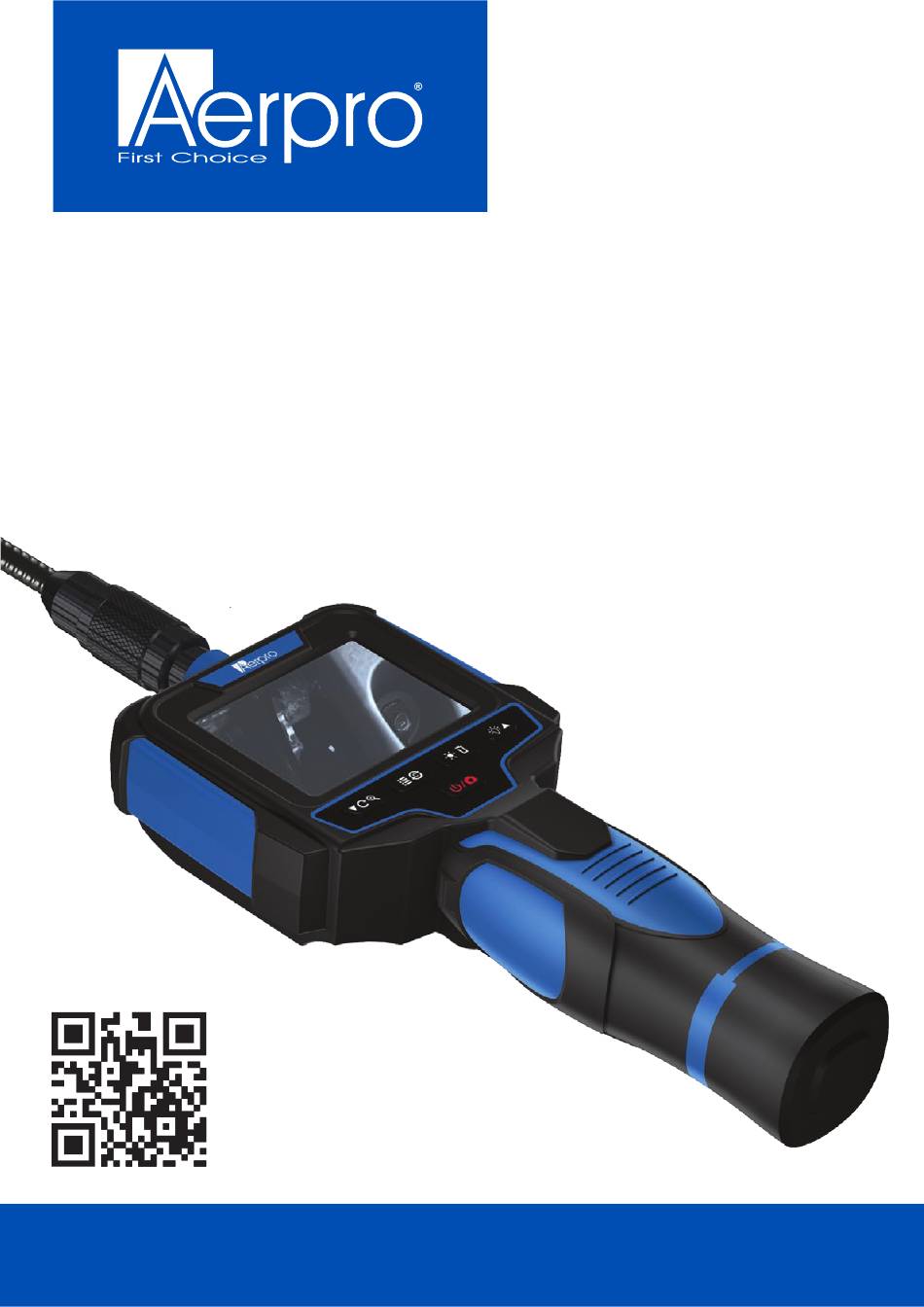

- Page 1 G5100 INSPECTION CAMERA 2.7” Colour LCD Monitor USER MANUAL aerpro.com...
- Page 2 THANK YOU Congratulations on your purchase of our Aerpro G5100 inspection camera. Please read the user manual carefully before using this product. This camera can live stream as well as record photos to the Internal flash drive storage. FEATURES • 2.7 Inch LCD colour display •...
-
Page 3: Battery Installation
STRUCTURE Micro USB input Battery compartment Flexible tube rear cover interface (Detachable) LCD colour display Flexible tube LED lens BATTERY INSTALLATION 1. Open the back cover of the battery compartment. 2. Insert 4 AA batteries (Not included) into their appropriate slots, with the proper orientation as indicated on the battery compartment. -
Page 4: Attaching Accessories
ATTACHING THE FLEXIBLE TUBE First make sure the keyed end of the tube is aligned with the slot in the handle. Then use slight force to push them together. Once aligned, twist the threaded knob anti-clockwise until the connection is secure. ATTACHING ACCESSORIES To attach the included accessories (Mirror, hook and magnet) to the camera head as illustrated below. - Page 5 KEY LAYOUT & DESCRIPTION Power On/Off/Snapshot Downward/Rotate/zoom LED Light/Upward LCD Backlight/Delete Playback/Colour...
-
Page 6: Key Function
KEY FUNCTION OPERATION MODE DELETE PRESS PHOTO BLACK & WHITE LIVE VIEW MODE PLAYBACK MODE FUNCTION TIME MENU MODE MODE Delete all Snapshot Snapshot SHORT photos Power LONG Power OFF Power OFF Power OFF Power OFF Rotate Previous photo Rotate SHORT LONG Zoom... - Page 7 OPERATING Power On/Off/Snapshot Long press to turn the display On/Off. Short press in Live View Mode to take a snapshot (picture). Short press in Delete Photo Menu Mode to delete all pictures. LED light Saved Battery level Photos level LCD screen Zoom level level...
- Page 8 OPERATING LED Light/Upward Short press in Live View Mode to turn the LED light On/Off and brightness level. Short press in Playback Mode to select next picture (photo). LCD Backlight/Delete Short press in Live View Mode to adjust the LCD screens brightness.
-
Page 9: Specifications
Storage capacity is 120 photos Internal flash drive storage^ TECHNICAL ASSISTANCE If you need assistance setting up or using your Aerpro product now or in the future, call Aerpro Support Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am –...
