RiDom Ri-TD-1 Installation Manual

Temperature detector
Installation guide
1 GENERAL INFORMATION
1.1 The temperature detector «Ri-TD-1» (hereinafter referred to as the
Detector) monitors the air temperature and transmits digital readings
via a two-way radio channel in accordance with the «Ri-Contact-R»
protocol.
1.2 The Detector works as part of the RiDom smart home security
system, communicating with the «Ri-HUB-1» control center (hereinafter
referred to as the Hub) using the «Ri-Contact-R» radio channel protocol.
1.3 The Detector does not require licensing and registration as a radio
transmission product.
1.4 Two frequencies – the main and the backup – are used for the
exchange of radio signals between the Detector and the Hub. The
transition to the backup frequency happens automatically.
1.5 The ambient temperature range is set at the factory: from -55 °С
to +125 °С. The boundaries of the controlled range are stored in the
non-volatile memory of the Detector and can be changed by a
command from the Hub. When the air temperature goes beyond the
controlled range, an «Alarm» notification is generated.
1.6 The Detector transmits of the following notifications over the radio
channel:
- the normal status – when the temperature is within the specified range;
- alarm – when the temperature exceeds the specified range by
0.5 °C or more;
- opening of the case;
- battery discharge;
- «Linking» mode;
- «Identification» mode;
- quality of communication.
1.7 The Detector is designed for continuous round-the-clock operation.
1.8 The Detector is resistant to electromagnetic interference.
2 SPECIFICATIONS
Table 1
Parameter
Frequency range
Radiation power, no more
Temperature measurement accuracy in the
operating range
Protection class
Battery type
Duration of operation of the Detector from the
battery under normal climatic conditions and a
set period airing of 60 seconds
Dimensions
Weight
Average service life
Operational conditions
Operating temperature range
Permissible air humidity at a temperature
of +25 °C, without moisture condensation
3 SCOPE OF SUPPLY
Table 2
Name
Temperature detector «Ri-TD-1»
Screw 3-3x30.016
Lithium battery CR123A
Installation guide for the «Ri-TD-1»
* Included
«Ri-TD-1»
Value
868,7...869,2 MHz
25 mW
± 1 °С
CR123A, 1 pc.
36 months
97х25х22 mm
50 g
8 years
-20... +55
Up to 98 %
4 VIEW AND DESIGN
The Detector consists of a case cover and a case base with a mounted
printed circuit board (1).
The following elements are located on the printed circuit board:
- built-in temperature sensor (2);
- RESET contacts (3);
- opening sensor (4);
- battery holder (5);
- battery (6) with insulator (7);
- red and green LED indicators (8);
- antenna (10).
The board is fixed in the base of the case with a latch (9).
There are mounting holes on the base of the case in the lower part (11)
and in the side wall (13).
10
9
8
7
5 INDICATION
The Detector generates the following types of indication:
- the «Linking» mode indication (registration of the Detector in the Hub);
- the «Identification» indication turns on upon receipt of the appropriate
command from the Hub and remains active for 15 minutes or until the
case is opened;
Indicator modes are listed in Table 3.
Table 3
Detector status
«Linking» mode
Completion of
«Linking»
«Channel 1 alarm»
«Channel 2 alarm»
«Identification»
mode
Connection
quality assessment
«Normal»
IP30
6 CHOOSING THE PLACE OF INSTALLATION
The Detector should be installed indoors only. When choosing a place
for installation of the Detector, consider the presence of obstacles that
can weaken the transmission of the radio signal.
The Detector is intended for indoor installation only.
DO NOT install the Detector if the following cases:
1. In close proximity to electrical wiring.
2. Near metal objects and mirrors that cause attenuation of the radio
signal or shield it.
3. Outdoor.
С
о
7 CONNECTING THE DETECTOR TO THE SYSTEM
7.1 Open the RiDom application and click
Then press
of devices and follow the prompts in the application.
7.2 Open the case by pressing the latch with a screwdriver.
7.3 When prompted by the application, remove the battery isolator.
7.4 The Detector will periodically turn on the green LED, which
indicates that it is in the «Linking» mode. In the absence of the indication,
Qty.
interconnect the «RESET» contacts for 2-3 seconds.
1 pc.
7.5 Upon successful connection to the Hub, the indicator on the sensor
2 pcs.
will turn red for 2-3 seconds, then you can see the Detector in the appli-
1 pc.*
cation, as well as all the information about it. The «Linking» mode time
is limited to 100 seconds. To resume the mode, it is necessary to briefly
1 copy
interconnect the «RESET» contacts.
7.6 Install the case cover back.
а) case base with PCB
1
2
3
4
5
6

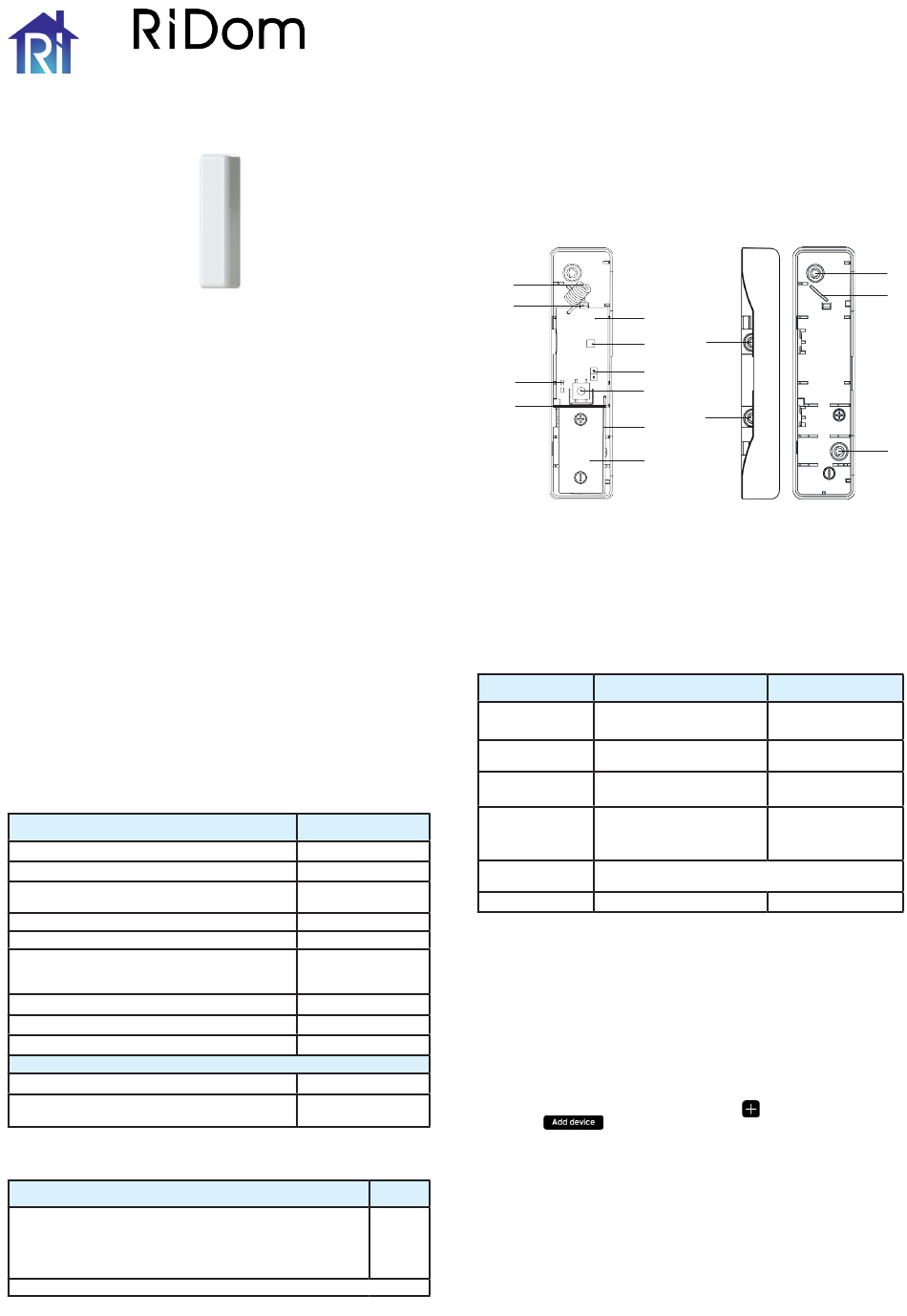

Picture 1 – «Ri-TD-1» detector case
Indication
Turning on the green
indicator with a period of 1 s
Turning on the red indicator
for 2–3 s
Periodic turning on of the red
indicator with a period of 8 s
Alternately turning on the
red and green indicators
See «Connection quality assessment» paragraph
Off
button. Select the «Ri-TD-1» detector from the list
б) case base
11
12
13
13
11
Notes
Registration of the
Detector in the Hub
With case closed
Received the
corresponding
command from the
Hub
in the My Devices tab.
