UIg WATCH DETECTOR User Manual

Live scan & 3d imaging detector

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WATCH DETECTOR and is the answer not in the manual?

Questions and answers

Alex
February 11, 2025

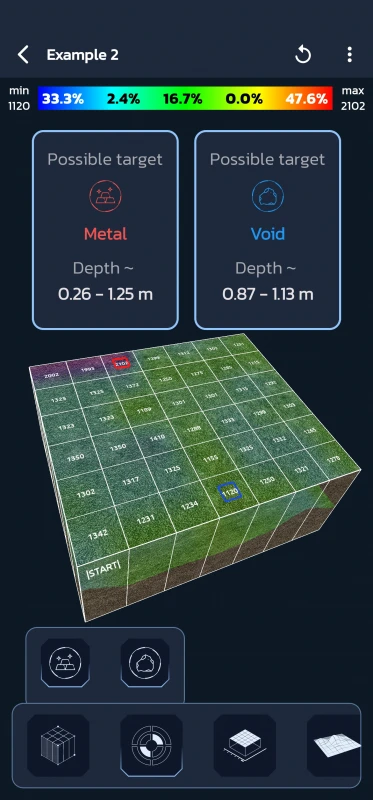

Hi there I just bought UIG WATCH detector.what is meant that number in the square box?

User image 67ab85b1d8f8e

Summary of Contents for UIg WATCH DETECTOR

  • Page 3 Live Scan & 3D Imaging Detector USER MANUAL ENGLISH...
  • Page 4 INDEX Critical Warning............... 6 Overview................7 Device Overview............. 8 Features and Specifications .......... 8...
  • Page 5 9 ......Smart Watch connection process 10 ..........Device Operation Steps 22 ..............Accessories 23 ........... Technical Specifications...
  • Page 6: Critical Warning

    Critical Warning Ensure all necessary precautions are taken to avoid risks. Refrain from using your device during rainy conditions. Operate the device only after confirming all components are properly in place and connected. Verify the device battery is fully charged before starting searching, It is recommended to recharge the better before it reaches 10%.
  • Page 7: Overview

    The UIG Watch is the smallest imaging device in the world, operating with three- dimensional imaging technology. UIG WATCH DETECTOR is the first device of its kind in the world that functions with three professional scanning and imaging techniques with a multi-tasking imaging sensor with modern and highly effective techniques.
  • Page 8: Device Overview

    Charge Input Power Button Power Indicator Features And Specifications The UIG Watch is designed to easily explore and search for precious metals, treasures, archaeological relics, passageways, caves, and voids underground. Three professional scanning and imaging techniques with a multi-tasking imaging sensor.
  • Page 9 In this case, the watch is connected to the mobile phone but the search application has not been installed. - Press the “Install UIG Watch App” button to download the application to the smartwatch (ensure the watch is connected to the internet to complete the download process).
  • Page 10 Device Operation Steps Live Scan System Operation Steps (For Ground) First Using the ground live scan system with the smartwatch: To start using this system, attach the device holder to your leg and then turn on the device by pressing and holding the power button, and then place the device into the holder.
  • Page 11 Walking should be in one direction, without changing direction. If there is an obstacle, we must remain in the same direction and take steps to the right or left to move away from the obstacle, then continue walking. If we want to change the search direction, we rotate and stabilize, press the calibration button and wait until the calibration process is completed, then continue walking.
  • Page 12 Second Using the ground live scan system with the mobile phone: To start using this system, the device must be straight and stable in the direction of the ground. We click on the “Live Scan System” icon on the application’s main screen, wait until the device is calibrated with the ground, and then move while considering the previous instructions.
  • Page 13 In the case of detecting a target: A schematic representation will gradually fill with yellow and red colors. A change in the percentage and an increase in the target’s chart indicator, accompanied by accelerated sound. Metal Target In the case of detecting a void: A schematic representation will gradually fill with green and blue colors.
  • Page 14 Live Scan System Operation Steps (For Wall) First Direct the device towards the wall horizontally and straight. The device should be positioned at a distance of 2 to 10 centimeters from the wall. Maintaining the device parallel to the wall surface should be considered.
  • Page 15 3D Imaging System Operation Steps Using the 3D Imaging System with a Mobile Phone: Enter the main screen of the application, and press the “3D Imaging System” button to navigate to the search properties selection screen, which includes: Column and Step Selection Page: specify the number of columns and steps in each column according to the available space in the search area.
  • Page 16 After selecting the search properties, stand still and stabilize the device towards the ground, then press the “Start” button, the device will calibrate with the soil. Upon completion of the calibration, the following elements will appear on the screen: Information Section: containing information about the selected search properties, current and remaining columns, and steps.
  • Page 17 To start the imaging process: Take close and equal steps of 30 to 40 cm in the designated search area. Keep the device stable and directed towards the ground Paying attention to the arrow’s direction to determine the steps. In automatic mode: The image will be captured automatically with each step.
  • Page 18 After completing all the steps, a data processing message will appear, and you will be directed to the search result page, which includes: Top Toolbar: containing the following buttons: Save: to save the search result within the application files. Reset the image to default. Full screen.
  • Page 19 Tool Bar: containing the following icons: Show/hide column and step lines. Identify the location of the target or void in the search area (it just gives the depth for the high possibility of existing targets or voids). Show/hide search values or area information. Control the shape between full 3D, diagram, or 2D.
  • Page 20 Second: Using the 3D Imaging System with a Smartwatch: To start, press the watch icon from the application’s main screen to activate the operation mode on the smartwatch: You can close the phone while keeping it near to the device. Open the application on the smartwatch.
  • Page 21 Upon completion of the calibration, the following elements will appear on the screen: Percentage: to know the percentage of search progress. Arrow’s direction: to know the direction of the next step. In manual scan mode, th e capture button will appear in the middle of the screen. Menu Icon: containing a button to turn off the screen while keeping the search mode active, and a button to exit the search.
  • Page 22 Important Note: For the best accuracy in results, selecting the maximum possible number of rows and columns is recommended. On the main screen of the phone application, there is an icon to open previously saved search files, along with examples of pre-loaded search operations.
  • Page 23 The Device Parts And Accessories Smart Watch Main Unit Carrying bag (gift) Charger cable Device carrier Car Charger Smart Watch Charger Warranty Card charger...
  • Page 24: Technical Specifications

    Technical Specifications Frequency 1KHz Data processing speed 72 MHz Operating Temperature Range 0 C° to 70 C° Up to 95 % non-condensing Operating Humidity Range - 20C° to 70C° Storage Temperature Range Storage Humidity Range Up to 98 % Relative Humidity Operating Time (5.18 Wh Battery) 10 Hours Not waterproof (weatherproof only)
  • Page 25 Thank you for choosing UIG WATCH Detector UIG DETECTORS Gold, Diamonds & Gemstones Detectors +90 539 544 02 23 +90 531 852 40 31 info@uigdetectors.com www.uigdetectors.com...
