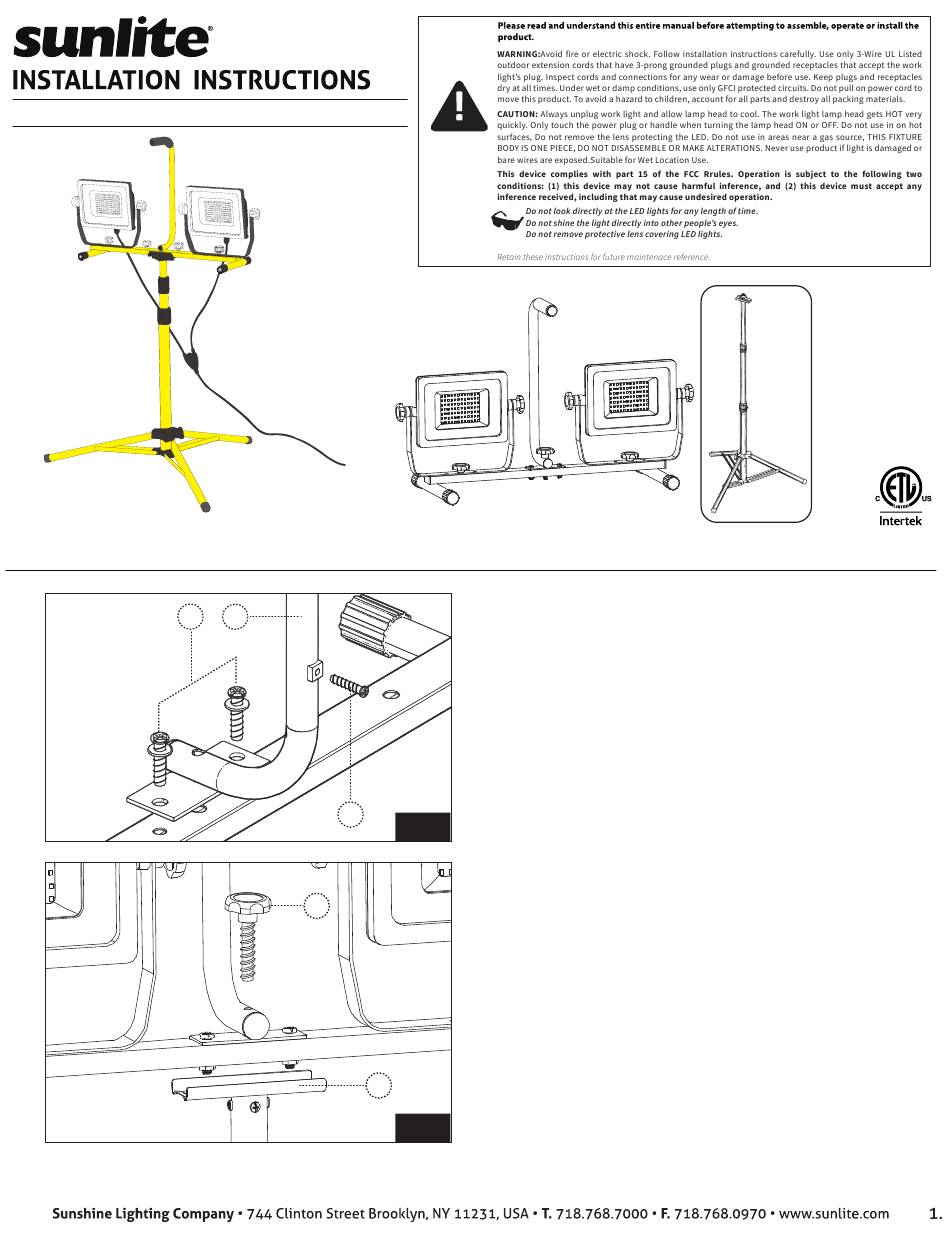

Model: 88178-SU | LFX/WL/2H/144W/40K | LED WORK LIGHT
Installa�on
B
A
C
Fig. 1
B
A
Fig.2
STEP 1. CENTER HANDLE ASSEMBLY (FIG. 1)
Remove the two bolts (B) from the "H" Sled. Fasten the
Handle to the Sled with the bolts as shown. attach the Y
cord joint to the handle by the center screw (C).
STEP 2. MOUNTING THE LED LIGHT TO THE TRIPOD (Fig. 2)
Place the LED Sled Assembly on the tripod rectangular
mounting shoe (A). Align the center handle hole, to the
hole at the top of the Tripod Stand. Insert the Knob with
threaded Bolt (B) through the handle and into the tripod
center hole. Twist and tighten the knob until snug.
Advertisement
Summary of Contents for Sunlite 88178-SU
- Page 1 Model: 88178-SU | LFX/WL/2H/144W/40K | LED WORK LIGHT Installa�on STEP 1. CENTER HANDLE ASSEMBLY (FIG. 1) Remove the two bolts (B) from the “H” Sled. Fasten the Handle to the Sled with the bolts as shown. attach the Y cord joint to the handle by the center screw (C).
- Page 2 STEP 3 TRIPOD STAND SETUP Loosen the Knob (D) located at the bottom junction of the three legs ( Fig. 3). Fully spread the legs apart by pulling the legs outward to start and then pushing down on the Bottom Junction. Tighten the knob until snug.
