Emergi-Lite Prestige Series Manual

Prestige Series - CC PLX Series
Flat trim AC, AC/DC and Self-Powered models
Risk of Electrical Shock.
Disconnect Power before Installation.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1.
All servicing should be performed by qualified service personnel.
2.
All unused wires must be insulated to prevent shorting.
3.
Do not use outdoors.
4.
Do not let power supply cords touch hot surfaces.
5.
Do not mount near gas or electric heaters.
6.
Equipment should be mounted in locations and at heights where it will not
readily be subjected to tampering by unauthorized personnel.
7.
The use of accessory equipment not recommended by the manufacturer
may cause an unsafe condition.
8.
Do not use this equipment for other than its intended use.
9.
Units to be installed only as per configuration described in this
instruction manual.
10.
SAVE THESE INSTRUCTIONS
This sign shall be installed only where there is adequate
colour contrast between the sign legend and the interior
IMPORTANT:
wall finish behind the sign, to provide for sufficient
visibility.
Installation Instructions
Turn off AC power.
Installation
(Figure 1,2 & 3)
1. Remove the proper knockout in the back box for the entry of the AC wires.
2. Install the bar hangers in the adjustment brackets (see figure 2). Mount the
back box so that it is flush with the ceiling surface (see figure 3).
3. Route AC circuit of rated voltage into the back box and leave 6" of wire
length.
4. Connect the incoming ground to the short ground wire provided in the back
box.
5. Electrical connection (Figures 4, 5)
a. Connect the long ground lead with eyelet from the back box to the ground
screw on the trim plate assembly.
b. Make the proper connections. The system can accept input voltages of
120 VAC to 347 VAC. For regular models connect the purple (line) and
white (common) leads to the building utility (see figure 4). For models
with diagnostic feature or nexus interface, connect the white (common),
black (120 VAC) or orange (277 VAC) leads to the building utility (see
figure 5).
c. AC/DC Models only:
For DC portion: wire the Red lead to the positive (+) DC input voltage and the
Blue lead to the negative (-) DC input voltage. Note: DC input voltage range
is 6 volts to 24 volts.
Emergi-Lite®
Tel: (888) 552-6467
®
WARNING:
2
3
4
5
6

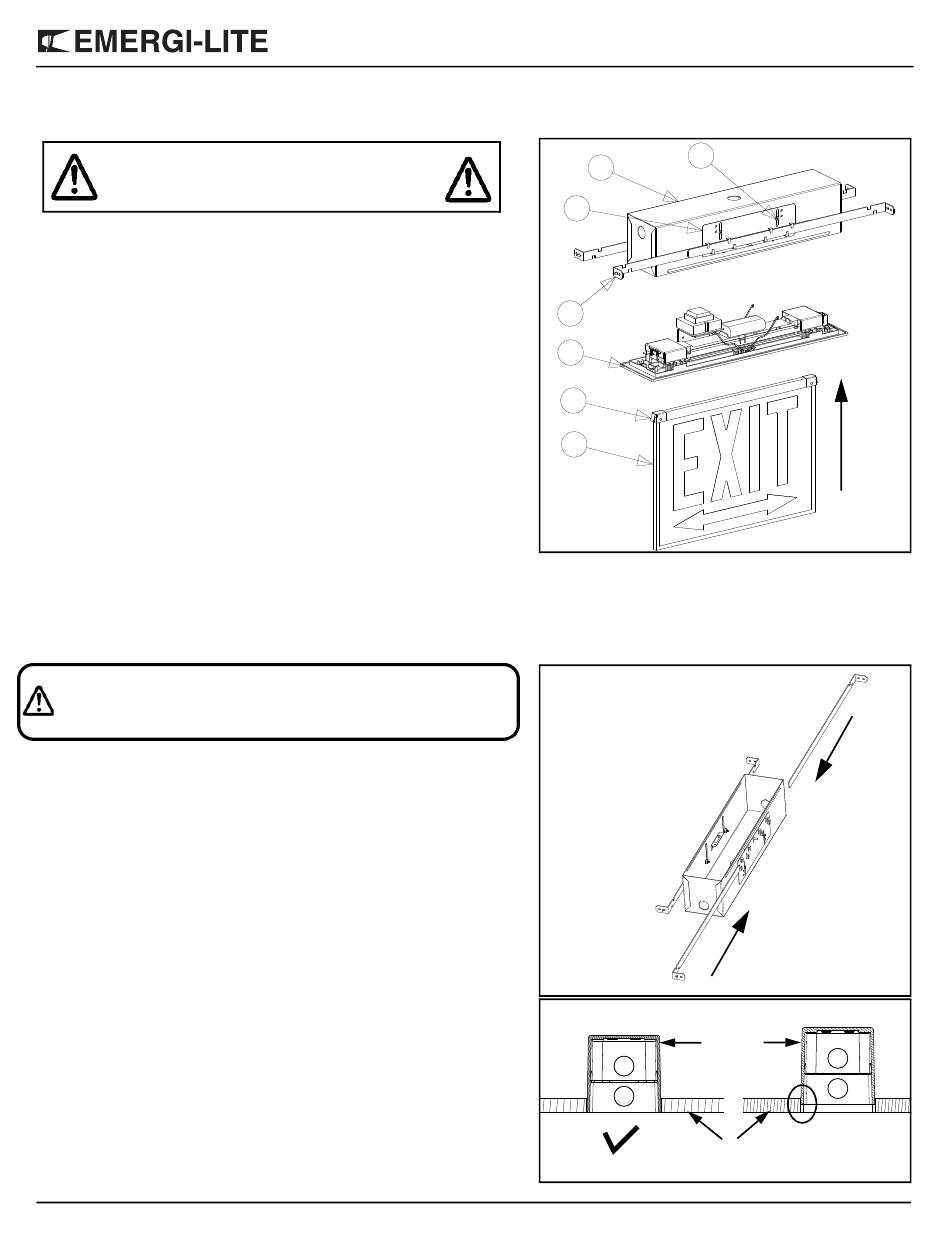

Figure 1
Parts List
1. Back box
2. Adjusment brackets (2)
3. Bar hangers (2 pair)
4. Trim plate assembly
Figure 2
Figure 3
Fax: (800) 316-4515 www.emergi-lite.com
Prestige Series - CC PLX Series
7
1
5. Clips (2)
6. Pictogram panel
7. Screws (4)
FLUSH
Back box
Ceiling
OFFSET
X
04/16 750.1878 Rev. A
1/2
