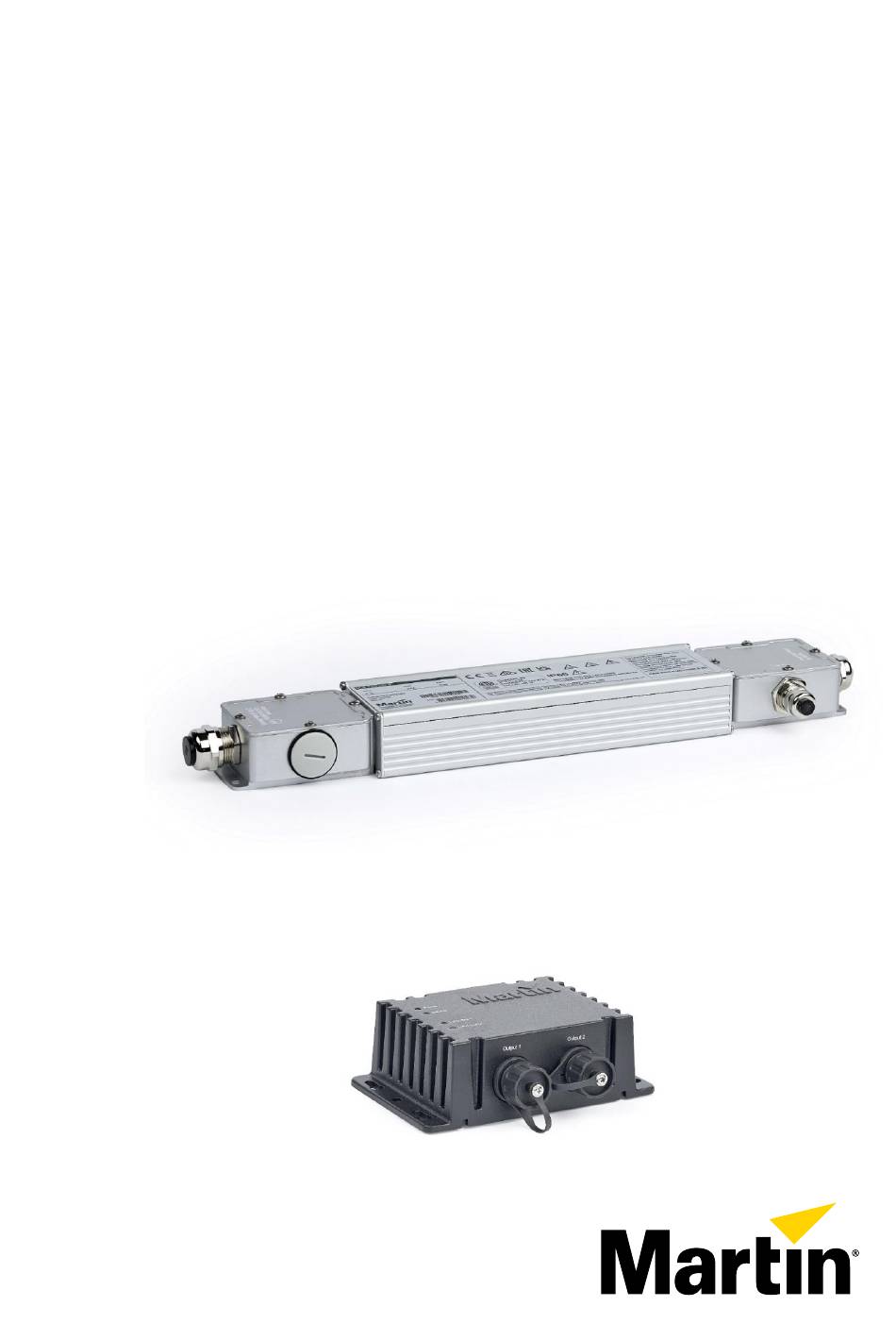

  • Page 1 DCE Accessories DCE PSU 240 IP DCE Data Splitter/Booster IP Safety, Installation and User Manual DCE PSU 240 IP DCE Data Splitter/Booster IP...
  • Page 2: Dimensions

    Martin is a registered trademark of HARMAN PROFESSIONAL DENMARK ApS registered in the United States and/or other countries.
  • Page 3: Table Of Contents

    Safety information ........................... 4 Introduction ............................8 Unpacking ..........................8 Accessories and related items ....................8 Installing with cable glands ......................8 DCE PSU 240 IP ..........................9 Overview ............................ 9 Installing ............................. 9 Connecting ..........................9 DCE Data Splitter/Booster IP ......................11 Overview ..........................
  • Page 4: Safety Information

    Follow the safety precautions listed in the following section and observe all warnings in this manual and printed on the product. The latest version of this User Manual is available for download from the Martin website at www.martin.com. Before you install, operate or service the product, check the Martin website and make sure that you have the latest user documentation for the fixture.
  • Page 5 • maximum number of devices that can be connected. The external diameter of the cables used to connect DCE PSU 240 IP products to power and data must be suitable for the cable glands provided, or water can enter the product and create a safety hazard or cause damage.
  • Page 6 • Network data in: 5-8 mm (0.2-0.32 in.) To connect a DCE PSU 240 IP device to AC mains power – or to connect DCE PSU 240 IP devices to AC mains power in a chain that takes power from one source – use minimum 18 AWG or 1.0 mm...
  • Page 7 In the event of an operating problem, stop using the product immediately and disconnect it from power. Do not attempt to use a product that is obviously damaged. Do not modify the product in any way not described in this manual. Install genuine Martin parts only.
  • Page 8: Introduction

    Creative LED fixtures fitted with hybrid DCE connectors. The following products are available: • DCE PSU 240 IP – for powering Martin Creative LED fixtures without the advanced features offered by the P3 PowerPorts (see the information on Martin P3 PowerPorts on the Martin website at www.martin.com)
  • Page 9: Dce Psu 240 Ip

    Read the ‘Safety Information’ section starting on page 4 before installing, applying power to or operating the device. The IP66-rated DCE PSU 240 IP is designed to be mounted on a flat surface in any orientation with four screws or other suitable fasteners. Holes for fasteners are provided in each corner of the device.
  • Page 10 10. Check that the seal is dry and in perfect condition, then reinstall the seal and cover on the DC power and data connections box so that the box is sealed against the entry of water and moisture. ® Martin DCE Accessories Safety, Installation and User Manual...
  • Page 11: Dce Data Splitter/Booster Ip

    Holes for fasteners are provided in flanges on each side of the device. Use fasteners that are suitable for the application and for the installation environment. ® Martin DCE Accessories Safety, Installation and User Manual...
  • Page 12: Making Connections

    The DCE Data Splitter/Booster IP has cable connectors for one hybrid input cable and two hybrid output cables. All connections support hot-plugging. Keep the connector caps installed on unused connectors at all times to maintain a seal against humidity and dirt. ® Martin DCE Accessories Safety, Installation and User Manual...
  • Page 13: Service And Maintenance

    Important! Excessive dirt buildup causes overheating and will damage the product. Damage caused by inadequate cleaning is not covered by the product warranty. The user will need to clean the device periodically. other service operations must be carried out by Martin Professional or an authorized Martin service agent.
  • Page 14 European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of Martin products ®...
  • Page 16 www.martin.com...
