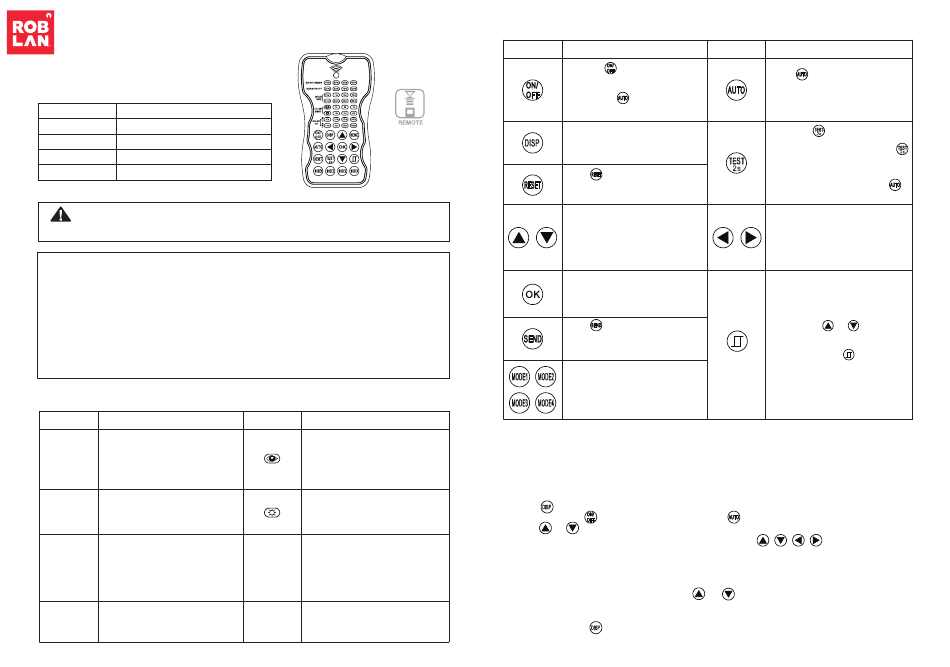

ROBLAN CONTSENSV5F3 Manual

REMOTE CONTROL - SENSOR ASTRO F3/V5
CONTSENSV5F3
Specifications
Power Supply
2 X AAA 1.5V battery, Alkaline preferred
Carrying case RC-100 in carrying case
Upload range Up to 15 m (50ft.)
Op. Temperature 0ºC~50ºC (32ºF~122ºF)
Dimensions 123 x 70 x 20.3mm
WARNING
Remove the batteries from compartment if the remote Will not be used in 30 days.
OVERVIEW
The remote-control Wireless IR Configuration Tool is a handheld tool for remote configuration of
IR-enabled fixture integrated sensors. The tool enables device to modify via pushbutton without
ladders or tools, and stores up to four sensor parameter modes to speed configuration of
multiple sensors.
The remote control send sensor setting at mounting height up to 50 feet. The device can display
previously established sensor parameters, copy parameters and send new parameters or store
parameter profiles. For projects where identical settings may be desire across many areas or
spaces, this capability provides a streamlined method of configuration. Settings can be copied
throughout a site, or in different sites.
LED INDICATORS
LED DESCRIPTION
High end trim turning function (to
Brightness
set the output level of connected
lighting during occupancy).
To set the occupancy sensing
Sensitivity
sensitivity of the sensor.
The time that the Sensor Will turn off
Hold time (you choose stand-by level is 0) or
dim the light to a low level after the
area is vacated.
Daylight
To represents various thresholds of
natural light level for the sensor.
sensor
LED DESCRIPTION
To select the current surrounding lux
value as the daylight threshold. This
feature enables the fixture
function well in any real application
circumstances.
The daylight sensor stops working,
and all motion detected could turn
on the lighting fixture, no matter
how bright the natural light is.
To set the output level of connected
lighting during vacancy. The sensor
Will regulate the lighting output at
Stand-by
the set level. Setting the STAND-BY
Dim
DIM level at 0 means light full off
during vacancy.
To represents the time that the
Stand-by
sensor will keep the light at low dim
Time
level after the HOLD TIME elapsed.
1
BUTTON OPERATION
BOTTON DESCRIPTION
Press the
to permanent on or permanent off
mode, and the sensor is disabled.
(Muest press
mode for setting).
Display the current latest setting
parameters in LED indicators (the
LED indicators will on for showing
the setting parameters).
Press button, all settings go
back to settings of dip Switch in
sensor.
Enter in the setting condition, the
parameter LEDs of remote control
will flash to be selected. And
Navigate to UP and DOWN for
choose selected parameters inf LED
indicators.
Confirm the selected parameters
selected parameters in remote
control.
Press button, upload the current
parameters to sensor(s), the led light
which the sensor connects will on/off
as confirm.
4 Scene modes with preset
parameters which are available to be
changed and saved in modes.
SETTING
The Setting Content contains all available setting and parameters for remote sensors. It allows
you to change the available control, parameters, and operation of the sensor from factory
to
default or current parameters.
Change multiple setting of sensor(s).
1. Press button, the remote-control LEDs will show the latest parameters you set.
NOTE: if you push button before, you must push
2. Press or enter in the setting condition, the parameter LEDs of remote control will flash
to be selected, navigate to the desired setting by pressing
parameters.
3. Press ok to confirm all setting and saving.
4. Aim at the target sensor and press to upload the new parameter, the led light which the sensor
connects will on/off as confirm.
NOTE: the setting works key step is by Push
NOTE: the led light which the sensor connects will on/off after getting the new parameter as
confirm.
NOTE: If you press button, the remote led indicator will show the latest parameters which
were sent.
BOTTON
button, the light goes
Press
to function, and all settings remain
the same as the latest status before
button to quit this
the light is switched on/off.
The button
sensitivity only. After you choose
sensitivity thresholds, then you press
button. The sensor goes to lest model
(hold time is only 2s) automatically,
meanwhile the stand-by period and
daylight sensor are disabled. Press
button quit from this mode.
Navigate to LEFT and RIGHT for
choose selected parameters in LED
indicators.
Open and close smart daylight
sensor. Press
setting condition, the parameter
LEDs of remote control will flash to
be selected, press
close daylight sensor.
button to unlock the sensor.
or , enter in the setting condition.
2
DESCRIPTION
button, the sensor starts
is for testing purpose
or enter in the
for open or
to select the new
