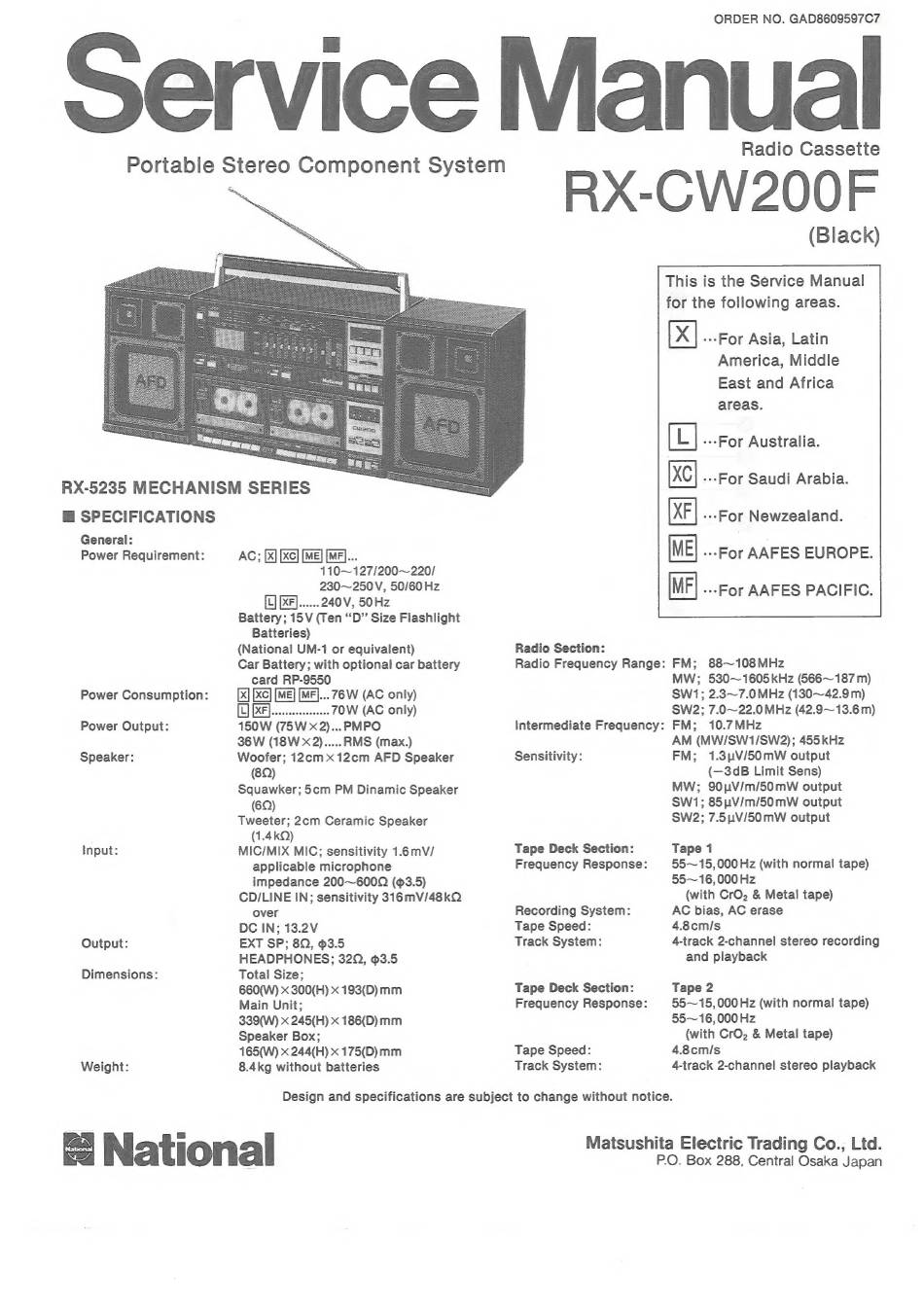

National RX-CW200F Service Manual

ORDER NO. GAD8609597C7
ervice Manual
Radio Cassette
RX-CW200F
(Black)
Portable Stereo Component System
This is the Service Manual
for the following areas.
---For Asia, Latin
America, Middle
East and Africa
areas.
--For Australia.
RX-5235 MECHANISM SERIES For Saudi Arabia.
@ SPECIFICATIONS ---For Newzealand.
General:
Power Requirement: AC; [x] [xc] [ME] [MF]... ---For AAFES EUROPE.
110~127/200~220/
230~250V, 50/60 Hz a
ee 240, 50Hz For AAFES PACIFIC.
Battery; 15V (Ten "D" Size Flashlight
Batteries)
(National UM-1 or equivalent) Radio Section:
Car Battery; with optional car battery Radio Frequency Range: FM; 88~108MHz
card RP-9550 MW; 530~1605kHz (566~ 187 m)
Power Consumption: [x] [xc] [ME] [MF]... 76 W (AC only) SW1; 2.3~7.0MHz (130~42.9m)
huevisevantvavest 70W (AC only) SW2; 7.0~22.0MHz (42.9~13.6m)
Power Output: 150W (75W x2)... PMPO Intermediate Frequency: FM; 10.7MHz
36W (18W x 2)..... RMS (max.) AM (MW/SW1/SW2); 455kHz
Speaker: Woofer; 12cm x 12cm AFD Speaker Sensitivity: FM; 1.3yV/50mW output
(8Q) (—3dB Limit Sens)
Squawker; 5cm PM Dinamic Speaker MW; 90uV/m/50mW output
(6Q) SW1; 85yuV/m/50mW output
Tweeter; 2cm Ceramic Speaker SW2; 7.5uV/50 mW output
(1.4kQ)
Input: MIC/MIX MIG; sensitivity 1.6mV/ Tape Deck Section: Tape 1
applicable microphone Frequency Response: 55~ 15,000 Hz (with normal tape)
impedance 200~600Q (3.5) 55~16,000 Hz
CD/LINE IN; sensitivity 316mV/48kQ
(with CrO, & Metal tape)
over Recording System: AC bias, AC erase
DC IN; 13.2V Tape Speed: 4.8cm/s
Output:
EXT SP; 8Q, 3.5
Track System:
4-track 2-channel stereo recording
HEADPHONES;; 32Q, $3.5 and playback
Dimensions: Total Size;
660(W) x 300(H) x 193(D) mm Tape Deck Section: Tape 2
Main Unit; Frequency Response: 55~15,000 Hz (with normal tape)
339(W) x 245(H) x 186(D) mm 55~ 16,000 Hz
Speaker Box; (with CrO. & Metal tape)
165(W) x 244(H) x 175(D) mm Tape Speed: 4.8cm/s
Weight: 8.4kg without batteries Track System: 4-track 2-channel stereo playback
Design and specifications are subject to change without notice.
aX = i Matsushita Electric Trading Co., Ltd.
Nationa P.O. Box 288, Central Osaka Japan
