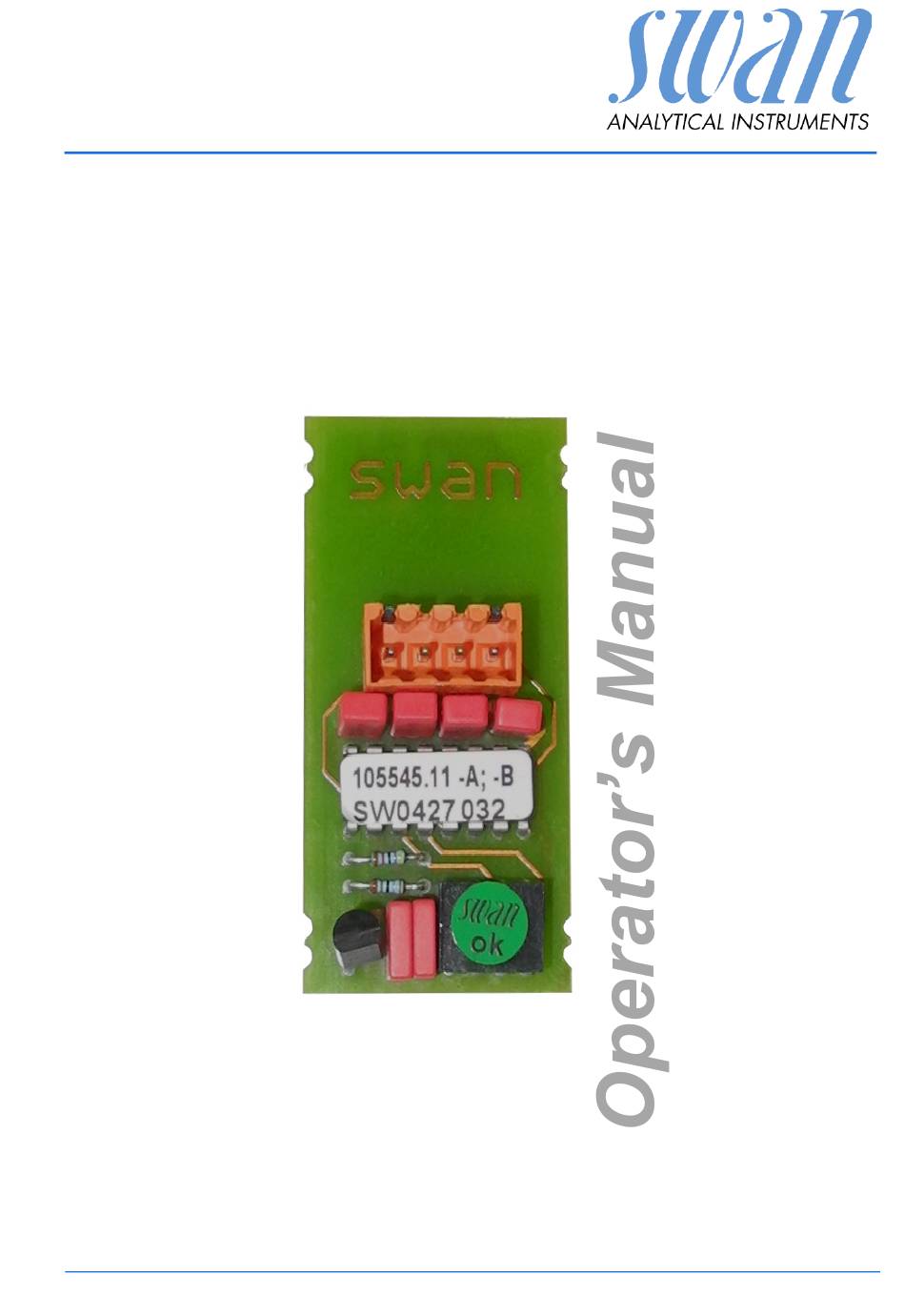

  • Page 1 AMI RS232 Interface A-96.250.411 / 301115...

  • Page 2: Customer Support

    SWAN representative, or the manufacturer: SWAN ANALYTISCHE INSTRUMENTE AG Studbachstrasse 13 8340 Hinwil Switzerland Internet: www.swan.ch E-mail: support@swan.ch Document Status AMI RS232 Interface Operator’s Manual Title: A-96.250.411 Revision Issue November 2005 June 2012 Description of SWAN Terminal added November 2015 Extender board added ©...

  • Page 3: Table Of Contents

    Table of Contents Installation of the optional AMI RS232 Interface ......1.1. Installing the AMI RS232 Interface ....

  • Page 4: Installation Of The Optional

    AMI RS232 Interface Installation of the optional AMI RS232 Interface Installation of the optional AMI RS232 Interface This document describes the main steps for the installation of the AMI RS 232 Interface and its function for logger download and firm- ware upload.
  • Page 5 AMI RS232 Interface Installation of the optional AMI RS232 Interface 3 Insert the AMI RS232 Interface [C] into the slot [A] at the upper right corner of the transmitter’s main board. If the version of the installed mainboard is V2.5 or newer, use the enclosed extender board [B].

  • Page 6: Configuration Of The Ami Transmitter

    AMI RS232 Interface Installation of the optional AMI RS232 Interface 1.2. Configuration of the AMI Transmitter 1 Enter the menu 5.5.1 on the AMI transmitter and choose Hyper- Terminal for the sub-menu Protocol. Interface 5.5.1 Protocol Protocol HyperTerminal Profibus Baud Rate...

  • Page 7: Functions Of The Ami Rs232 Interface

    AMI RS232 Interface Functions of the AMI RS232 Interface Functions of the AMI RS232 Interface The AMI RS232 Interface has two functions: It allows the transfer of logger data onto a PC and the upgrade of AMI instruments with a new firmware.

  • Page 8: Clear Logger

    AMI RS232 Interface Functions of the AMI RS232 Interface 2.1.3 Clear Logger To delete all logger data, proceed as follows: Operation Sensors Signal Outputs Relay Contacts Logger Logger 4.4.2 Log Interval 30 Minutes Clear Logger Enter Select yes and press Clear Logger to accept.

  • Page 9: Software Installation, Configuration

    AMI RS232 Interface Software Installation, Configuration Software Installation, Configuration 3.1. SWAN Terminal The operating System Windows 7 does not any longer include the hyperterminal program. To be able to upload Firmware and down- load logger data, we recommend to install the SWAN Terminal pro- gram.
  • Page 10 AMI RS232 Interface Software Installation, Configuration 3 Click the “Next” button. 4 Follow the dialog on the screen A-96.250.411 / 301115...
  • Page 11 AMI RS232 Interface Software Installation, Configuration A-96.250.411 / 301115...
  • Page 12 AMI RS232 Interface Software Installation, Configuration A-96.250.411 / 301115...

  • Page 13: Functions Of The Swan Terminal

    AMI RS232 Interface Software Installation, Configuration 3.1.2 Functions of the Swan Terminal The Swan terminal has the following functions:  Downloading logger data from an AMI transmitter to a PC via RS232 interface.  Deleting logger data.  Upgrading of AMI instruments with a new firmware release.
  • Page 14 AMI RS232 Interface Software Installation, Configuration The Status bar indicates whether the Swan Terminal is connect- ed to a COM port. In the Function catalog the desired function (e.g. Download Logger) can be chosen. In the Baud rate selection drop down window select the same baud rate as the AMI transmitter has been set (normally it is set to 115200 baud).

  • Page 15: Download Logger

    AMI RS232 Interface Software Installation, Configuration 3.1.3 Download Logger To download a logger file proceed as follows: 1 Start the Swan Terminal 2 Select “Download Logger” 3 Press “Enter” to start the logger download Download A text file AMI*.TXT is created. Existing files are renamed Procedure AMI*0.TXT, AMI*1.TXT, AMI*2.TXT, etc.

  • Page 16: Erase Logger

    AMI RS232 Interface Software Installation, Configuration Date Time Code Desc State 25.11.05 12:22:36 E021 1DIS invalid Active 25.11.05 2:22:37 E018 Reagent pump Active 25.11.05 12:22:41 E010 Sample Flow Low Active Calibration History of an AMI Codes: CALCOD.txt Dis Date Time Factor 25.11.05...

  • Page 17: Firmware Upload

    “aout.a37”. If you have to update different Instruments create a folder for each instrument and store the corresponding firmware in it. Prerequisite  The AMI RS232 interface must be installed, connected and configured correctly. See Installation of the optional AMI RS232 Interface, S.
  • Page 18 AMI RS232 Interface Software Installation, Configuration 5 Select the firmware file you want to upload. 6 Click to Upload  The upload starts. After the upload has been finished navigate to <Installation> <Miscellaneous> <Set defaults>, press <Enter> and select <completely>.

  • Page 19: Hyperterminal

    AMI RS232 Interface Software Installation, Configuration 3.2. HyperTerminal 3.2.1 HyperTerminal Configuration on the PC A-96.250.411 / 301115...
  • Page 20 AMI RS232 Interface Software Installation, Configuration * Note: If your computer has no COM port, you need an USB-COM-Con- verter to connect the cable to the PC. After having it connected find out via the Device Manager which port you are using (Settings/Control Panel/System/Hardware/De- vice Manager).
  • Page 21 AMI RS232 Interface Software Installation, Configuration This address of the port should be used for configuring the Hyper- Terminal. A-96.250.411 / 301115...
  • Page 22 AMI RS232 Interface Software Installation, Configuration A-96.250.411 / 301115...

  • Page 23: Logger Download

    AMI RS232 Interface Software Installation, Configuration 3.2.2 Logger download Download Procedure  On the keyboard, press Esc.  Browse to the folder you have created to archive printouts. A text file AMI*.TXT is created. Existing files are renamed AMI*0.TXT, AMI*1.TXT, AMI*2.TXT, etc.
  • Page 24 AMI RS232 Interface Software Installation, Configuration Example of a Logger download of an AMI Codes (without pH- and temperature sensor). logger file: AMICOD.txt Date Time Alarms Temp Flow 19.10.05 09:46:34 0000000000 1.074 25.0 7.00 19.10.05 09:47:34 0000000000 1.087 25.0 7.00 19.10.05...

  • Page 25: Firmware Upload

    Only SWAN trainaed and authorized personnel shall perform the tasks described in this section. Prerequisites The AMI RS232 interface must be installed, connected and config- ured correctly. See Installation of the optional AMI RS232 Interface, 2. The HyperTerminal connection must be configured. See perTerminal, S.
  • Page 26 AMI RS232 Interface Software Installation, Configuration If upload fails (instrument does not restart), repeat steps and 4. Perform Set defaults 5.4.2 > completely and setup the instrument according to user specifications. A-96.250.411 / 301115...
  • Page 27 AMI RS232 Interface Software Installation, Configuration A-96.250.411 / 301115...
