Ace ACF100-4 Manual

Specifications
Line Motor
Voltage Voltage
Motor Current
Model (VAC) (VAC)
ACF100-4 115 115
AC Line Voltage .............................................................115 VAC ± 10%, 50/60 Hz, single phase
AC Line Current ...............................................................................................2x motor current
AC Motor Voltage ...........................................................115 VAC, 60 Hz, single or three phase
Overload Capability ...............................................................................200% (2x) for 1 minute
Standard Carrier Frequency .............................................................................................16 kHz
Output Frequency Range ............................................................................................0 - 120 Hz
Adjustable Maximum Output Frequency Range .....................................................30 - 120 Hz
Adjustable Minimum Output Frequency Range .......................................0 - 50% of maximum
Adjustable DC Injection Voltage ................................................................................0 - 17 VDC
Acceleration Time Range .....................................................................................1 - 12 seconds
Deceleration Time Range .....................................................................................1 - 12 seconds
Analog Input Voltage Range (Signal must be isolated) ................................................0 - 5 VDC
Input Impedance (S1 to S2) ....................................................................................>100K ohms
Vibration (20 - 50 Hz) ..........................................................................................0.5G maximum
(>50 Hz) ..............................................................................................0.1G maximum
Ambient Temperature Range .....................................................................................0°C - 40°C
Weight ..............................................................................................................................1.4 lbs
Installation
Mounting
• Drive components are sensitive to electrostatic discharge. Avoid direct contact with the circuit
• board. Hold the drive by the chassis only.
• Protect the drive from dirt, moisture, and accidental contact.
• Provide sufficient room for access to the terminal block and calibration trim pots.
• Mount the drive away from heat sources. Operate the drive within the specified ambient operating
• temperature range.
• Prevent loose connections by avoiding excessive vibration of the drive.
• Mount the drive with its board in either a horizontal or vertical plane. Four 0.20" (5 mm) wide slots
• in the chassis accept #8 pan head screws.
• The chassis should be earth grounded. Use a star washer beneath the head of at least one of the
• mounting screws to penetrate the anodized chassis surface and to reach bare metal.
Wiring
Use 18 - 24 AWG wire for logic wiring (DIR, E1, E2, S1, S2, S3).
Use 14 - 16 AWG wire for AC line (L1, L2) and motor (U, V, W) wiring.
Shielding Guidelines
As a general rule, ACE recommends shielding of all conductors. If it is not practical to shield power
conductors, ACE recommends shielding all logic-level leads. If shielding of logic-level leads is not
practical, the user should twist all logic leads with themselves to minimize induced noise. Refer to
the user's manual for details on earth grounding shielded wires and filtering.
Fusing
ACE drives require an external line fuse for protection. Use fast acting fuses rated for 250 VAC or
higher and 150% of the maximum line current. Fuse the HOT leg of the AC line.
ACF100-4
Open Chassis Microprocessor-based
Variable Frequency AC Drive
READ ALL SAFETY WARNINGS BEFORE INSTALLING THIS EQUIPMENT
Continuous
Motor
• DO NOT INSTALL, REMOVE, OR REWIRE THIS EQUIPMENT WITH POWER APPLIED. Have a
Horsepower
• qualified electrical technician install, adjust and service this equipment. Follow the National
(Amps) Range
• Electrical Code and all other applicable electrical and safety codes, including the provisions of the
• Occupational Safety and Health Act (OSHA), when installing equipment.
4.0 1/8 - 1/2
• Circuit potentials are at 115 above earth ground. Avoid direct contact with the printed circuit
• board or with circuit elements to prevent the risk of serious injury or fatality. Use a non-metallic
• screwdriver for adjusting the calibration trim pots. Use approved personal protection equipment
• and insulated tools if working on this drive with power applied.
• Reduce the chance of an electrical fire, shock, or explosion by using proper grounding, over-current
• protection, thermal protection, and enclosure. Follow sound maintenance procedures.
• ACE strongly recommends the installation of a master power switch in the line voltage input. The
• switch contacts should be rated for 250 VAC and 200% of motor nameplate current.
• Removing AC line power is the only acceptable method for emergency stopping. Do not use
• DC injection braking, decelerating to minimum speed, or coasting to a stop for emergency stopping.
• They may not stop a drive that is malfunctioning. Removing AC line power is the only acceptable
• method for emergency stopping.
• Line starting and stopping (applying and removing AC line voltage) is recommended for infrequent
• starting and stopping of a drive only. DC injection braking, decelerating to minimum speed, or
• coasting to a stop is recommended for frequent starts and stops. Frequent starting and stopping can
• produce high torque. This may cause damage to motors.
• Do not disconnect any of the motor leads from the drive unless power is removed or the drive is
• disabled. Opening any one lead while the drive is running may destroy the drive.
• Under no circumstances should power and logic level wires be bundled together.
• Be sure potentiometer tabs do no make contact with the potentiometer's body. Grounding the
• input will cause damage to the drive.
• Caution should be taken when operating fan-cooled motors at low speeds because their fans may
• may not move sufficient air to properly cool the motor. ACE recommends "inverter-duty" motors
• when the speed range is beyond 10:1.
• Drive is designed to work with permanent split capacitor, shaded pole, and standard three phase
• induction motors. In general, the drive can work with capacitor-start motors, but it is conditional
• on the current pull when the capacitor is in effect and how long the application calls for a speed that
• the capacitor will stay in the auxiliary winding.
Line Input
Connect the AC line power leads to terminals L1 and L2 115, or to a single-throw, single-pole master power
switch (recommended). The switch should be rated at a minimum of 120 VAC and 150% of line current.
Motor
If using a three phase motor, connect the AC motor leads to terminals U, V, and W. If the motor does not
spin in the desired direction, power down the drive and swap any two of these connections. If using a single
phase motor, connect the AC motor leads to terminals U and V. Refer to the Operations section for
possible wiring setups.
Speed Potentiometer
Use a 5K - 20K ohm, 1/4 W potentiometer for speed control. Connect the counter-clockwise end of the potentiometer
to S1, the wiper to S2, and the clockwise end to S3. If the potentiometer works inveresly of desired functionality,
(i.e. to increase motor speed, you must turn the potentiometer counterclockwise), power off the drive and swap
the S1 and S3 connections.
Direction Switch
If a direction switch is desired, wire a switch to terminals E1 and DIR. When the connection is open, the motor will
run in the forward direction. When the connection is closed, the motor will run in reverse. If no direction switch is
desired, leave this connection open.
Enable
Open the terminals E1 and E2 to coast the motor to minimum speed. Close terminals E1 and E2 to accelerate the
motor to set speed. If no enable switch is desired, jumper terminals E1 and E2. Do not use the enable for
emergency stopping.
Safety Warnings
Connections
POWER
LOGIC
14300 De La Tour Drive South Beloit, IL 61080
•
Phone: (815) 624-6915 Fax: (815) 624-6965
•
www.americancontrolelectronics.com

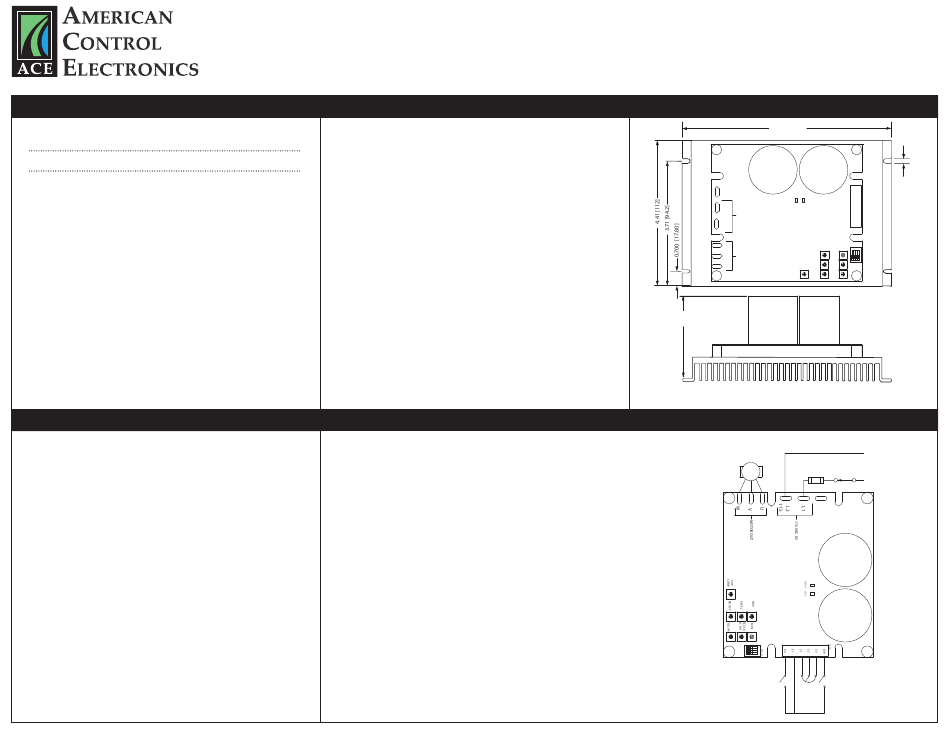

Dimensions
6.90 [17.5]
TB501
L1 STATUS LEDS
115 VAC IN
L2
115
U
ON
MAX
V MOTOR OUT MIN
DECEL/
ACCEL
DC BR
W
SLIP
BOOST
TQ/LIM
COMP
3.45
[87.63]
ALL DIMENSIONS IN INCHES [MILLIMETERS]
STOP
MOTOR FUSE SWITCH
ENABLE/ DISABLE
DIRECTION
SWITCH
SWITCH
SPEED
(open to disable)
POT
0 1 . 8 8
5 [ ]
DIR
S3
S2
S1
E1
E2
SW501
1 2 3 4
NEUTRAL
AC LINE
VOLTAGE
115 VAC
HOT
