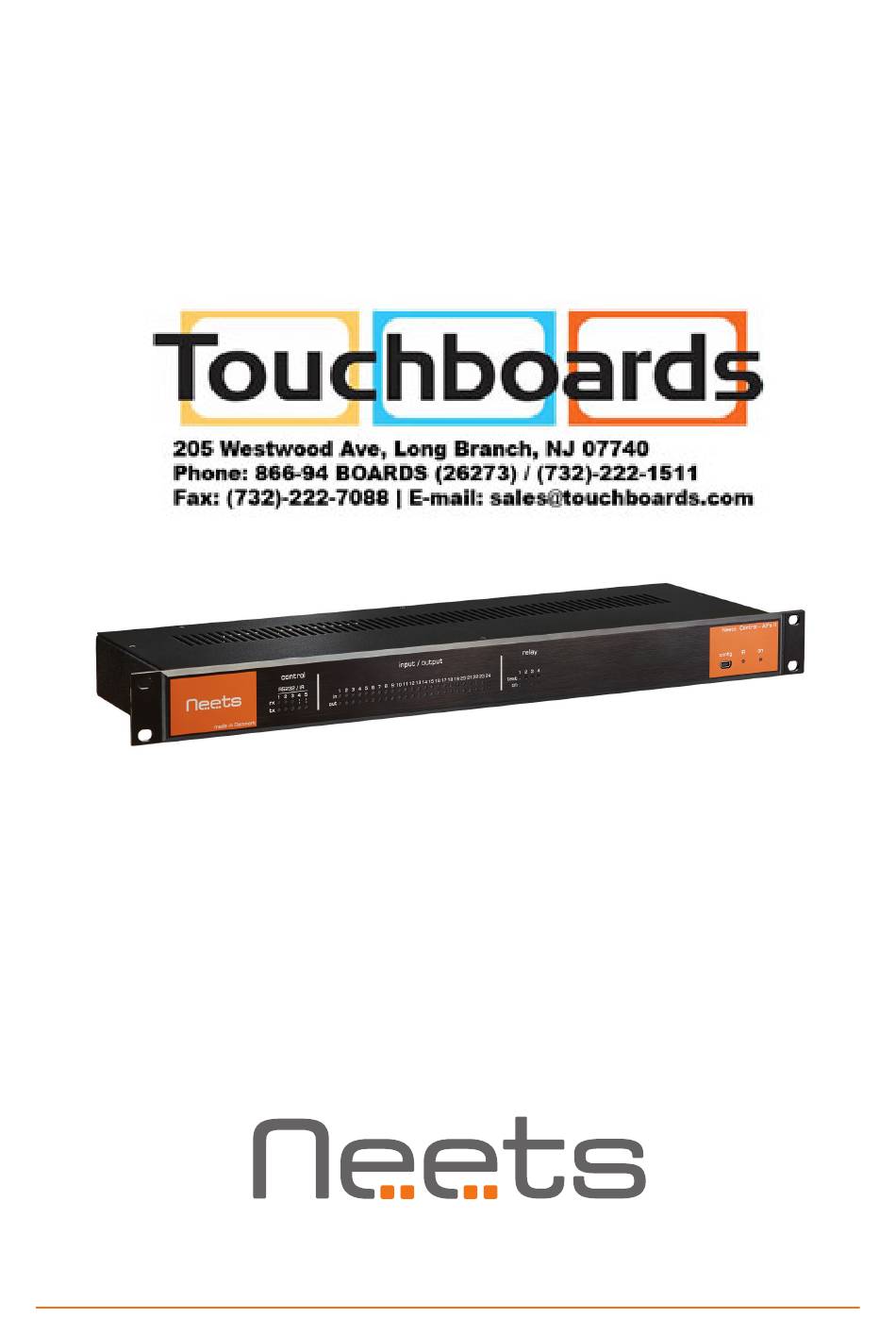

- Page 1 Neets Control – AlFa II Installation Manual...
-
Page 2: Foreword
Foreword The purpose of this document is to describe how to install and configure the Neets Control – AlFa II. COPYRIGHT - All information contained in this manual is the intellectual property of and copyright- ed material of Neets. All rights are reserved. You may not allow any third party access to con- tent, information or data in this manual without Neets’... -
Page 3: Important Safety Instructions
Important Safety Instructions Caution: Read these instructions: Read and understand all safety and operating instructions before using the equipment. Keep these Instructions: The safety instructions should be kept for future reference. Heed all Warnings: Follow all warnings and instructions marked on the equipment or in the user information. Avoid Attachments: Do not use tools or attachments that are not recommended, because they may be hazardous Warning!:... -
Page 4: Table Of Contents
Connections on AlFa II ........ -
Page 5: Description
All AV systems throughout the room are easily controllable from any mobile touch device. The AlFa II is very well suited for integrating videoconference into meeting rooms and makes it very easy to control both your AV-equipment and videoconference and with a tablet. -
Page 6: Specifications
Specifications Power input Transmit frequency 400 Hz to 500 KHz Voltage 100 VAC – 240 VAC IR Learn frequency 1 KHz to 150 KHz Frequency 47 Hz – 63 Hz Power usage 10 W uSD-Card Connector type IEC plug Type Micro-SD Card size min / max 1Gb / 4Gb... -
Page 7: Connections On Alfa Ii
Connections on AlFa II Connectors and indicators are available on the front and rear panels. These are shown below: Front: Number: Description Indication for transmitting or receiving on RS-232 or IR Indication for Input and Output on rear panel (I/O) -
Page 8: Hardware Installation
Hardware installation The AlFa II is designed to be mounted in a rack or as a stand-alone unit on a desk, drawer or other stable surface. Always allow at least 40 mm of free space above the unit as air circulation around the unit is needed for reliable performance. -
Page 9: Mount Cable Relief Bracket And Covers
Connections and Controls AC Line Connect the AlFa II to the AC line supply using the supplied power cable. The cable will be equipped with a line socket connector for use in the country of sale. The AlFa II incorporates a universal mains power supply which accepts AC line input from 100 V to 240 V. -
Page 10: Power Out
(also called open drain/collector function). Each I/O can draw up to 24VDC/500mA. For each I/O there is a LED on the front of the AlFa II indicating the current out- put state. The LED is on when the output is active (the output is connected to GND). -
Page 11: Neb Port
AlFa II and your NEB devices. However, you MUST connect NEB extender module (Neets P/N 310-0005) at the end for your NEB units. The AlFa II has a built-in NEB extender; therefore, you need an extender for all your NEB units as well. uSD-Card... -
Page 12: Lan
AC power. The USB connector for connecting to the Neets Control – AlFa II is type “mini USB B 5P”. (It is available on the web as a USB A to Mini USB B 5P). -
Page 13: Troubleshooting
Troubleshooting On the front of the unit you will find LED indicators used for error indication (the “on” LED and input/output LED number 1-6). The “on” LED can have the following indications: Description “on” LED behavior System starting Orange non-flashing System running White non-flashing System error... - Page 14 When adding a Neets Network unit (e.g. Switching Relay - 4 or 8), the network unit AlFa II displays this error when it does not have contact with all units. Check to be certain the SN used in the Project Designer matches the one for the unit on your network.
