Summary of Contents for Xtool SafetyPro IF2

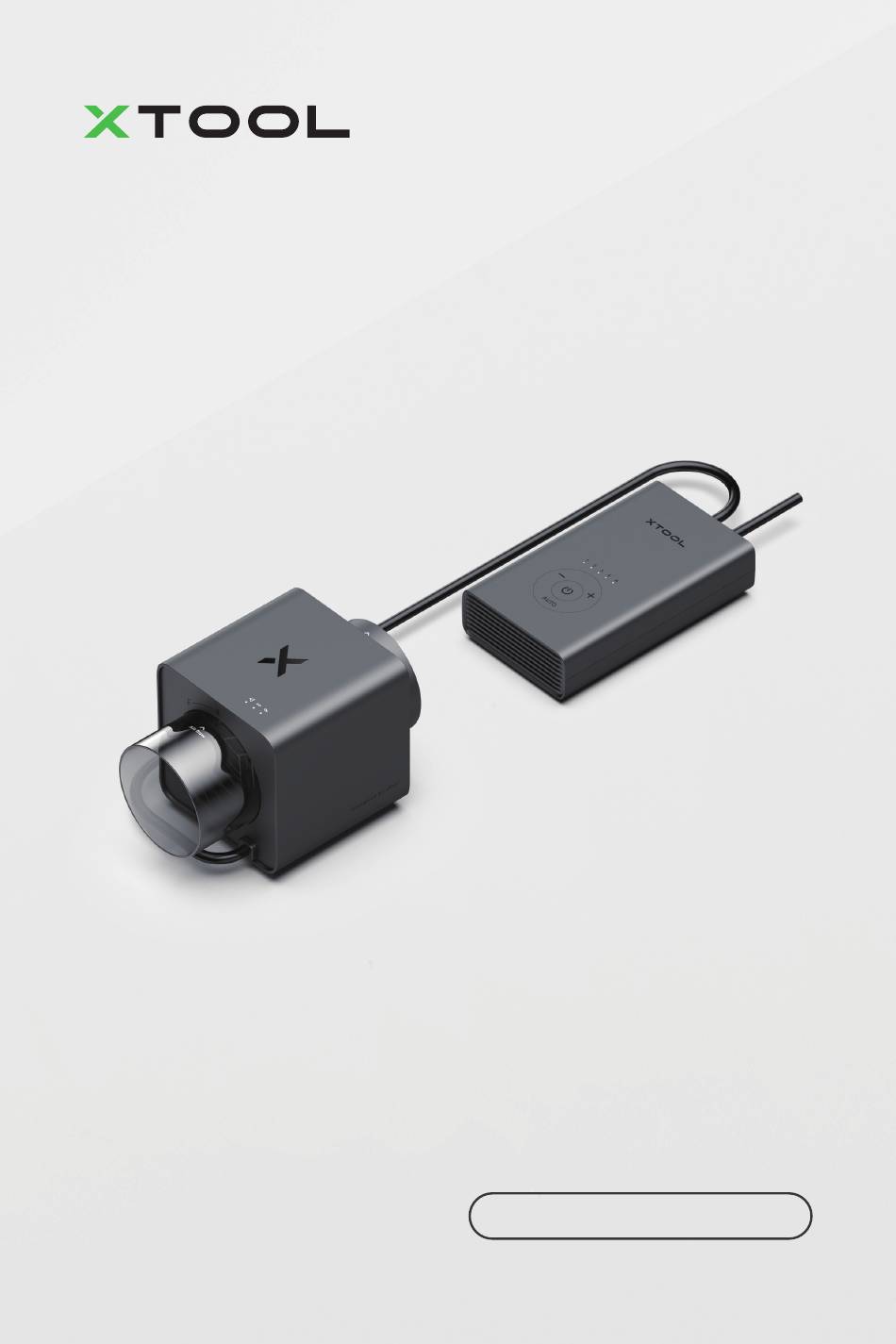

- Page 1 SafetyPro™ IF2 Quick Start Guide...
-
Page 2: Table Of Contents
List of items Meet xTool SafetyPro™ IF2 Connect xTool SafetyPro™ IF2 (Optional) Wall mounting Use xTool SafetyPro™ IF2 Use with XCS Indicator description Maintenance... -
Page 3: List Of Items
The power cable varies according to the region in which the product is delivered. ■ Pipe connector 1 is applicable to xTool S1 and F1 Ultra. ■ Pipe connector 2 is applicable to xTool M1 Ultra, M1, F1, P2, P2S, D1, and D1 Pro. Meet xTool SafetyPro™ IF2 Fault indicator Wireless connection indicator... -
Page 4: Connect Xtool Safetypro™ If2
Install the protective cover to the inline fan. Align the airflow inlet label with the locking symbol as illustrated. Install the smoke exhaust pipe of the xTool SafetyPro™ IF2 ■ Connect the pipe connector and pipe included in the pack to the airflow outlet of the fan. - Page 5 Connect the smoke exhaust pipe of xTool machines Applicable to xTool S1 and F1 Ultra Note the thread directions. Smoke exhaust pipe of the machine ■ ■ Connect the smoke exhaust pipe of the Rotate the pipe connector machine to pipe connector 1.
- Page 6 2. counterclockwise to secure the pipe and connector. ■ Connect the pipe connector and pipe to the airflow inlet of the fan. Applicable to xTool M1, P2, P2S, D1, and D1 Pro ■ Loosen the pipe clamp.
- Page 7 Smoke exhaust pipe of the machine ■ Tighten the pipe clamp. ■ Connect the pipe connector and pipe to the airflow inlet of the fan.
-
Page 8: Set Up Wireless Connection
Connect to a power supply Set up wireless connection A wireless connection can be established only with xTool S1, M1 Ultra, P2S, and F1 Ultra. ■ Connect the Bluetooth dongle to the extension port of the xTool machine. The preceding figure is for reference only. -
Page 9: (Optional) Wall Mounting
(Optional) Wall mounting ■ To fix the device in a place, you can fasten it to a wall-mounting fixture before installing the smoke exhaust pipes. The following tools are required but not included in the pack. Screwdriver Wrench Pencil Drill ■... - Page 10 ■ Slide the fan body along the fixture, with the wall-mounting bracket of the fan fitting on the fixture. ■ Never mount the wall-mounting fixture sideways or mount on a ceiling. Otherwise, the inline fan may not be fixed properly.
-
Page 11: Use Xtool Safetypro™ If2
You can also press to switch between the four levels. Note that AUTO mode is available only for xTool S1, M1 Ultra, F1 Ultra, and P2S. Use with XCS Download XCS Use xTool SafetyPro™ IF2 on XCS support.xtool.com/article/1644... -
Page 12: Maintenance
Maintenance Clean the fan In the case of abnormal fan speed or poor smoke exhaust due to dust build-ups, you need to clean the fan blade. 1. Remove the fan ■ ■ Disconnect the power cable. Remove the protective cover by rotating it counterclockwise. - Page 13 ■ Hold one terminal and press the position illustrated using your thumb. Then take out the terminal. Repeat the steps and take out the other terminal. 2. Clean the fan ■ Clean the fan blade using a degreasing cleaner. Avoid applying the cleaner on the terminals.
- Page 14 ■ Wash the fan blade with a gentle stream of water. Ensure that water does not come into contact with the terminals. Note: To prevent damage to the fan, do not use a high-pressure water spray to rinse the fan or immerse the fan completely in water.
