Summary of Contents for Allnet 205818

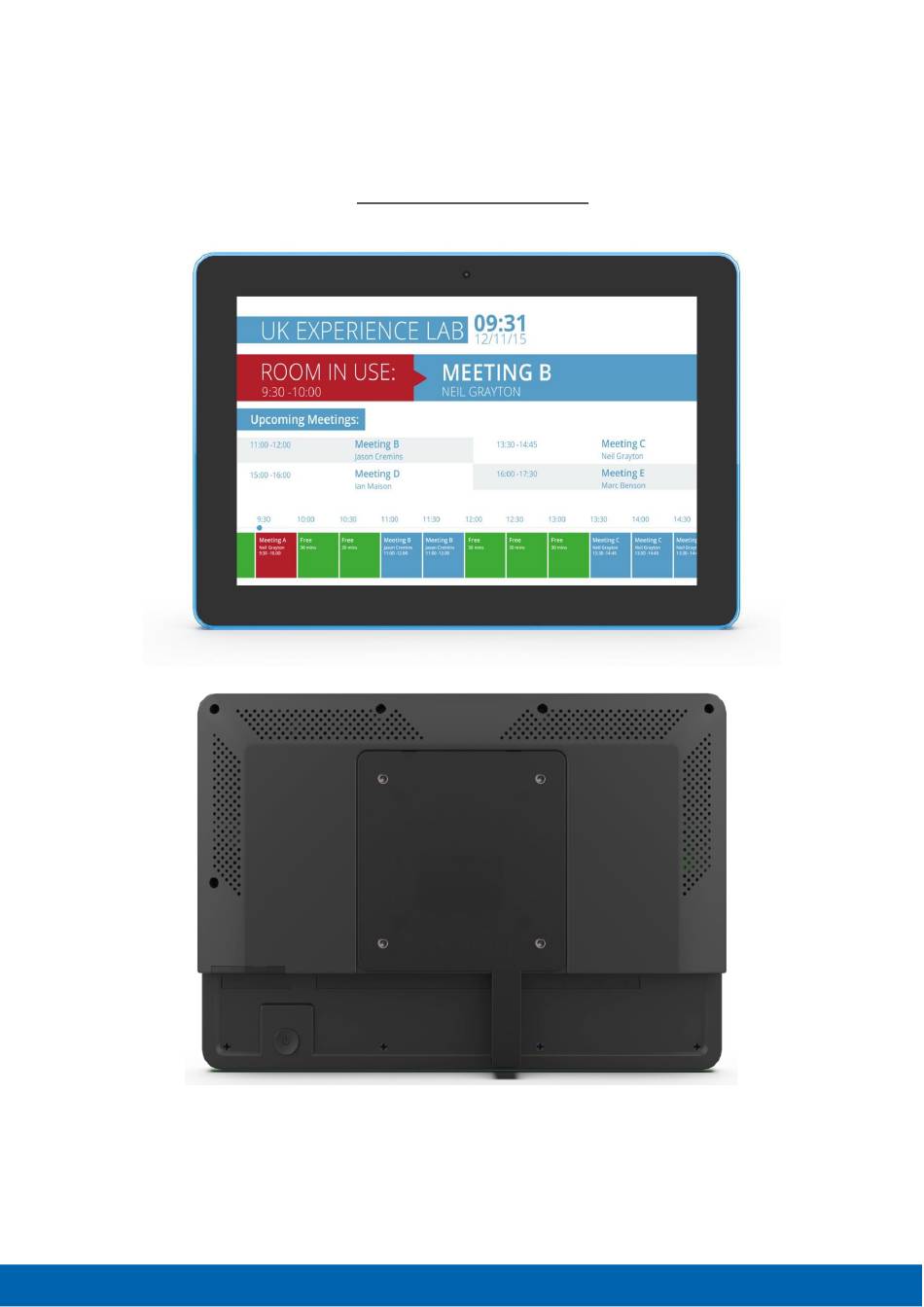

- Page 1 Quick ALLNET Meeting Room Display ITEM NO.: 10 inches (205818) www.allnet.de...
-
Page 2: Table Of Contents
Screen Lock Settings ........................... 31 Attitude Volume change ..........................31 Display Settings ............................32 Hide navigation bar/status bar ........................33 "Automatically turn off the display" settings ....................34 Connection to the Google Play Store ......................34 Quit the app ..............................36 www.allnet.de... - Page 3 Split Screen Function: ..........................37 Take a screenshot ............................37 Update Firmware: ............................39 CE ..............................40 www.allnet.de...
-
Page 4: Package Contents
Package Contents Please check the contents of the packaging before proceeding with the display start-up. • ALLNET PoE Display • 12V Power Supply • Printed Quick Start Guide General The display is a non-mobile display with no BATTERY. It is used to visualize data and has Android 11 as its operating system. -
Page 5: Warnings
The signal word "WARNING" indicates a warning of possible danger to life and/or serious irreversible injuries! The signal word "CAUTION" indicates a warning of possible moderate and/or minor injuries! The signal word "WARNING" indicates possible damage to property. "Note" identifies useful or important information about the product. www.allnet.de... -
Page 6: Directives And Standards
• RoHS Directive 2011/65/EU. ALLNET Computersysteme GmbH hereby declares that the ALLNET PoE Displays is following the essential requirements and other relevant provisions of the following Directives and Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: http://ce.allnet.de and at the end of the instructions. -
Page 7: Disposal Of Packaging
Permanently installed portable batteries or accumulators may remain in the device when disposed of at the collection point. www.allnet.de... -
Page 8: General Security
The device remains connected to the mains even when it is turned off. Unplug the power supply from the socket if the appliance is not used for a long time. • In the event of malfunctions or smoke and odours from the housing, immediately www.allnet.de... -
Page 9: Safety Instructions For The Installation Of The Device
Do not display a still image permanently. This could cause damage to the display. • Do not open the housing, but contact your specialist dealer or the manufacturer in case of a repair. • Work on the appliance may only be carried out if it has been disconnected from the power www.allnet.de... -
Page 10: Safety Notice For Repair And Maintenance
(n. installed). This device complies with CE regulations. The manufacturer assumes no liability for damage caused by improper use. Read the operating instructions carefully before using it. This is the only way to ensure that all functions can be used safely and reliably. www.allnet.de... -
Page 11: Operating Requirements
The device is designed for use indoors and must be protected from excessive dust, extreme temperatures, moisture and condensation. The environmental requirements are specified as follows: Service conditions: Temperature 0° - +40° Humidity 20% - 80% non-condensing Storage: Temperature 0° - +60° Humidity 10% - 90% non-condensing www.allnet.de... -
Page 12: Technical Details
4G Module Yes (optional with 222843) RFID Camera No camera Other Microphone Single microphone Speaker 2*2W LED light bar LED light bar with RGB and mixed color Working temp 0--40degree Certificates CE/FCC Language Multi-language Adapter Adapter,12V/1.5A Accessoires User manual www.allnet.de... - Page 13 Output current (Ausgangsstrom) 1.5A Output power (Ausgangsleistung) Average operational efficiency 85,00% (Durchschnittliche Effizienz im Betrieb) Efficiency at low load (Effizienz bei 70,92% geringer Last, 10 %) Power consumption at no load 0.1W Max (Leistungsaufnahme bei Nulllast) Energy efficiency class (Energieeffizienzklasse) www.allnet.de...
-
Page 14: Dimensions
Dimensions Connection Overview and Dimension: 10inch www.allnet.de... -
Page 15: Service
Display Rotation The display can be used horizontally and also vertically. To do this, please go to the Display/Screen rotation settings. In the pop-up, select the number of degrees of rotation. The tablet will now restart in the set mode. www.allnet.de... - Page 16 www.allnet.de...
- Page 17 With this feature, you can have an app launch automatically. To do this, please go to Settings/Apps & Notification. From there, click on View all apps. Now select the desired app and press it for a long time until the following pop-up window appears for confirmation. www.allnet.de...
-
Page 18: Fixing An App
The app can still be terminated by pressing a keyboard shortcut. A professional kiosk APP can be found in the Playstore under "Ekiosk Browser". Go to Settings/Security and click on "Advanced" Screen Fix. www.allnet.de... - Page 19 There please go to the item "Screen Fixation/App Pinning" and click on it. Now you can turn on the main switch. www.allnet.de...
- Page 20 As an option, you can also install a security system that locks the tablet when the app is terminated. www.allnet.de...
- Page 21 Below the square in the navigation bar, you'll find the most recently opened APPs. Click on the middle icon on the app you want to use at the top. This screen freeze is no longer active after a reboot, and the freezing procedure must be performed again. www.allnet.de...
-
Page 22: Setup Ethernet
Setup Ethernet Open the "Settings" Select "Network & Internet", then click "More" Please click on "Ethernet" If the switch is not activated, please press it. www.allnet.de... -
Page 23: Auto-Ping - Set Up A Persistent Network Connection
Under "Ethernet Ip mode" you can select DHCP or Static Ip. Auto-ping – set up a persistent network connection The "Enable Auto Ping network" feature ensures a steady connection to your network. This function is particularly helpful when used as a door intercom. www.allnet.de... -
Page 24: Toggle Wi-Fi Internal/External
Wi-Fi stick (requires ALL-WA0300AC) to the USB 3.0 port. To do this, you need to go to Settings/Network and tap on "Wifi Module Settings". In the pop-up, select External or Internal. The display has to restart to take over the drivers. www.allnet.de... -
Page 25: Setup Wi-Fi
Select "Wireless & Network," then click Wi-Fi and turn on the toggle Select the desired Wi-Fi network and enter the password if necessary Once the connection is successfully established, the tablet will automatically connect to the network if it is in range. www.allnet.de... -
Page 26: Change Language Settings
You can set up a static network connection under IP Setting. By clicking on "static" you can set up the IP address, gateway and DNS server. Change language settings Open the Settings app Under "System", select "Language & Input", then click on Language and select the desired language www.allnet.de... - Page 27 www.allnet.de...
-
Page 28: Change Time Zone, Date And Time Settings
You can activate the language by dragging the language up on the right edge. Change time zone, date and time settings In the "Settings" app, open the "System" item. Select the menu item "Date and Time" from the menu item "System". www.allnet.de... - Page 29 You can either obtain the appropriate time zone automatically via the network or change it manually via "Select time zone". www.allnet.de...
- Page 30 www.allnet.de...
-
Page 31: Screen Lock Settings
Under the item "Device security/screen lock" you can then assign a PIN to unlock the tablet, among other things. Volume Change Setting Open the Settings app Select the menu item "Sounds" from the menu item "Device". Here you can adjust the volume for media playback, alarms, and notifications. www.allnet.de... -
Page 32: Display Settings
Display Settings Open the Settings app Select "Display", then click on Brightness Level, now you can adjust the brightness continuously. In addition to the brightness, you can also change the background or choose a screensaver. www.allnet.de... -
Page 33: Hide Navigation Bar/Status Bar
Open the Settings app Select "Display", then turn off "Show NavigationBar/ or Phone StatusBar". You can also operate the tablet with a mouse and keyboard. The left mouse button is the "mouse click", the right mouse button is the "back" button www.allnet.de... -
Page 34: Automatically Turn Off The Display" Settings
Connection to the Google Play Store Open the Play Store app and sign in with your Google account credentials to install the apps you want. If you don't have an account yet, you can create a new account directly from the app. If you www.allnet.de... - Page 35 Internet. This app can also be downloaded from external download sites such as APK Mirror. Please note that downloading external pages can be risky. We do not accept any liability for this! www.allnet.de...
-
Page 36: Quit The App
Quit the app Click on the rectangular icon in the bottom navigation bar. You will then be shown all active apps, which you can then close as desired. www.allnet.de... -
Page 37: Split Screen Function
These must be opened beforehand so that they can be selected. Take a screenshot Under Settings you will find the item "Screenshot". Click to open a settings window. Here you can switch on the function in the navigation bar. www.allnet.de... - Page 38 www.allnet.de...
-
Page 39: Update Firmware
Note: Please check that no other ADB drivers are installed on the system. This can lead to errors in the recognition of the tablet. To flash the firmware, you need the v5.1.1 AndroidTool_Release. Please write to our support to receive the firmware and the download link, support@allnet.de. Here are the steps: 1. Install the "Release_DriverAssitant" driver. - Page 40 ETSI EN301 489-1 V2.2.3 (2019-11) ETSI EN301 489-17 V3.1.1 (2017-02) ETSI EN300 328 V2.2.2 (2019-07) EN62368-1:2014+A11:2017 This equipment is intended to be run in all countries. This declaration is made by ALLNET GmbH Computer Systems Maistraße 2 82110 Germering Germany Germering, 03.09.2021 www.allnet.de...
