Rowley R-TEC AUTOMATION RTAHR16CV1W User Manual

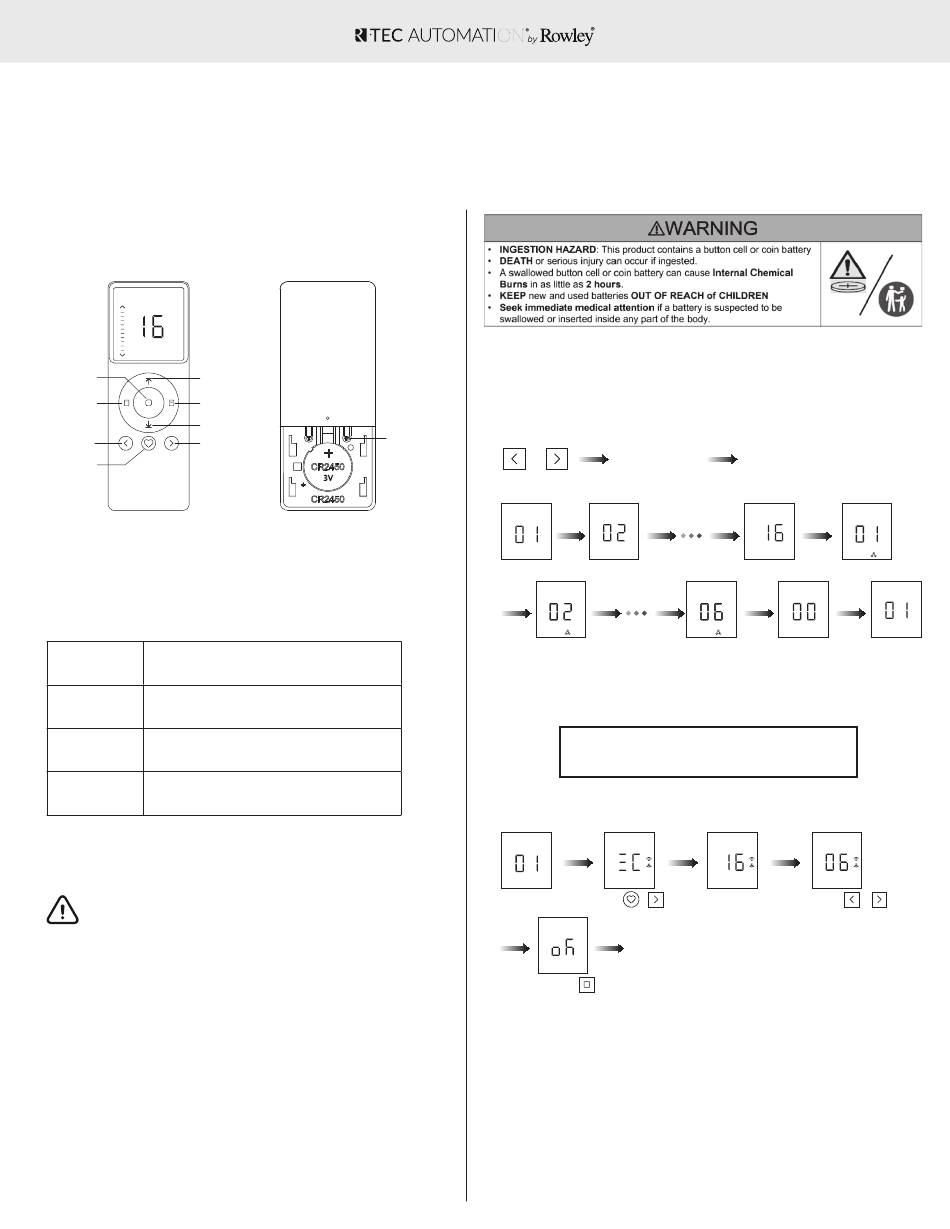

1. PRODUCT DIAGRAM
FRONT
Stop Up
30% Closed 60% Closed
Down
Channel- Channel+
Fav
RTAHR16CV1W
Hand-held 16-channel with percentage
LCD Remote Controller
2. REMOTE SPECIFICATIONS
Battery
Type
Work
Temperature
Radio
Frequency
Transmit
Distance
3. CAUTION
WARNING: Important safety and operation
instructions to be read before installation and use.
1. This product is intended for indoor use only. Do not
expose the remote to moisture or extreme temperatures.
2. If the remote becomes less responsive and has a shorter
transmission range, please check whether the battery
needs to be replaced.
3. Use or modification outside the scope of this instruction
manual will void warranty.
4. When the battery voltage is too low, the orange LED will
flicker during operation.
5. Please properly dispose of used batteries and replace
with only the specified battery type.
RTAHR16CV1W
16-channel LCD Remote Controller
BACK
Programming
Button
RTAHR16CV1W
CR2450*3V*1
14°-122°F
433.92M + - 100KHz
>=98.5' indoor
User Manual
4. INSTRUCTIONS
A. CHANNELS & GROUPS TOGGLING
First select the desired channel to pair with your motor(s).
or
Short Press
Note：Channel 0 is the group control for all the channels.
Channel 1 Channel 2
Group 2
Note: A maximum of 15 motors can be added to one channel.
All motors added to the same channel will operate simultaneously.
Channel 0 is the group control for all the channels.
Note：Channel 0 is the group control for all the channels.
Follow the motor pairing instructions first
before completing the following steps below:
B. HIDE UNUSED CHANNELS
Under
Channel 1
Short press
Note: Max&Min number is 16&1 when it's set under channel 1-16.
Once the desired channel is
To toggle through selected the motor(s) can now
be paired. Follow motor pairing
channels & groups
instructions for further steps.
Note：Channel 0 is the group control for all the channels.
Channel 16
Group 6
Press & Release it
after 3s
to choose channel number
Complete
RowleyCompany.com | updated 06/10/2024
I-RTEC5
Group 1
Channel 0 Channel 1
Short press or
