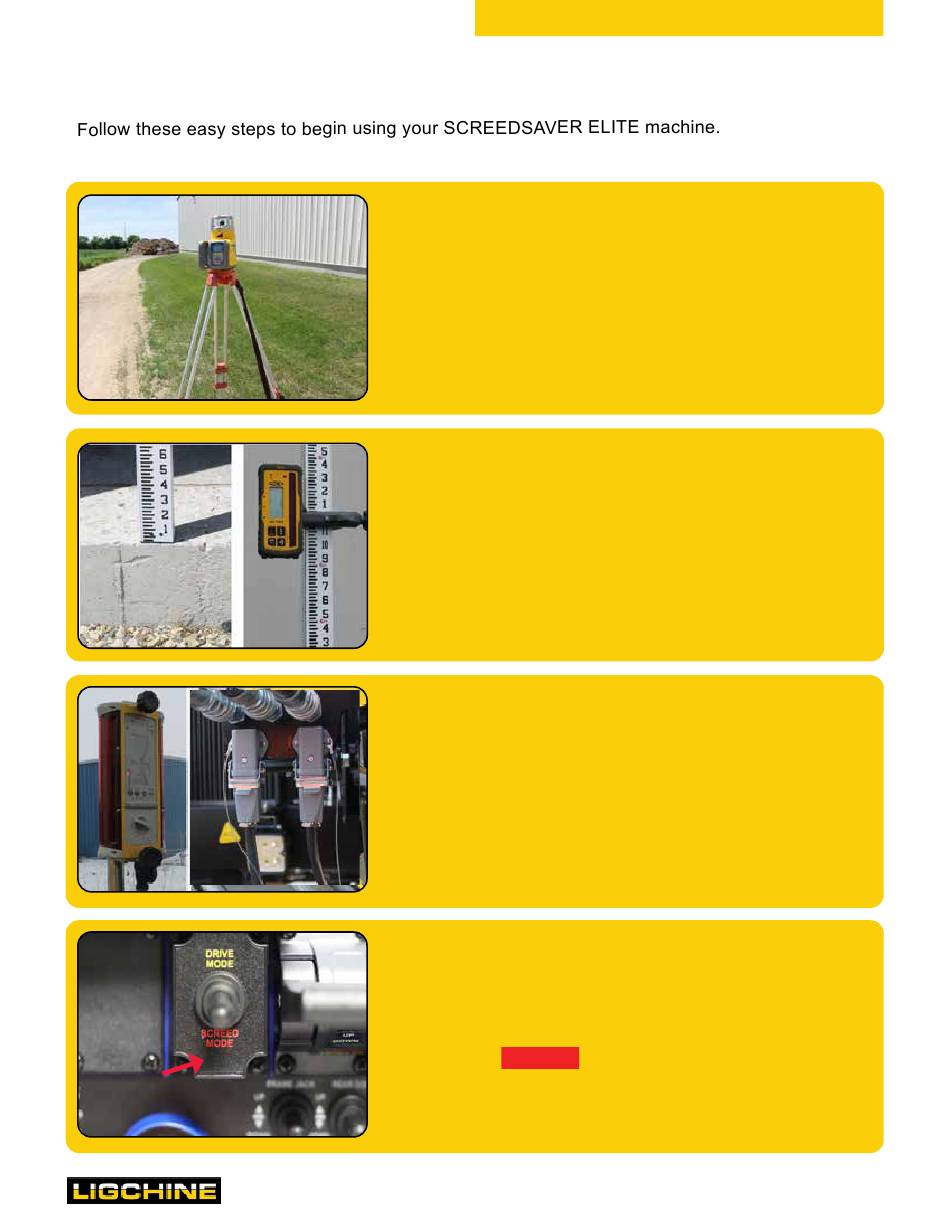

QUICK START GUIDE
STEP 1:
Laser transmitter
Setup laser transmitter in appropriate jobsite location
(free from interference).
STEP 2:
Grade Height
Set the grade rod to the finished concrete slab grade
height.
STEP 3:
Laser receiver
Attach laser poles, both laser eye receivers, and
cables to the front of the machine.
Setup for first pass
STEP 4:
Drive machine to first screed pass location. Place
machine into SCREED mode.
V1.0 | 1/21
QUICK START GUIDE
67
Advertisement
Related Manuals for Ligchine SCREEDSAVER ELITE
Summary of Contents for Ligchine SCREEDSAVER ELITE
- Page 1 QUICK START GUIDE QUICK START GUIDE STEP 1: Laser transmitter Setup laser transmitter in appropriate jobsite location (free from interference). STEP 2: Grade Height Set the grade rod to the finished concrete slab grade height. STEP 3: Laser receiver Attach laser poles, both laser eye receivers, and cables to the front of the machine.
- Page 2 QUICK START GUIDE STEP 5: Center side shift Use the side shift buttons on wireless remote and adjust the sideshift so the screedhead is centered against machine. STEP 6: Adjust frame height Retract the undercarriage tight to the frame with FRAME JACK function Adjust all 3 downriggers until machine is relatively level or parallel to subgrade and there is approximately 3...
- Page 3 QUICK START GUIDE STEP 9: Pinch bolts Resecure the two pinch bolts that secure the pivoting center post. Make sure the screedhead is perpendicular to the boom before tightening. STEP 10: R/L head setting RIGHT LEFT Hold the bottom of the grade rod level with the bottom of the finish blade on the right and left sides of the screed head.
- Page 4 There are many methods and shortcuts to set up a laser-leveling screed. The previous Quick-Start setup is the most precise for a typical application. No matter how you choose to configure the ELITE for use, Ligchine strongly recommends that you always make an initial screed pass. Then, immediately check the concrete with a laser grade rod to verify it is precisely where it should be before proceeding with additional screeds.
