Summary of Contents for INVATEC BM-03

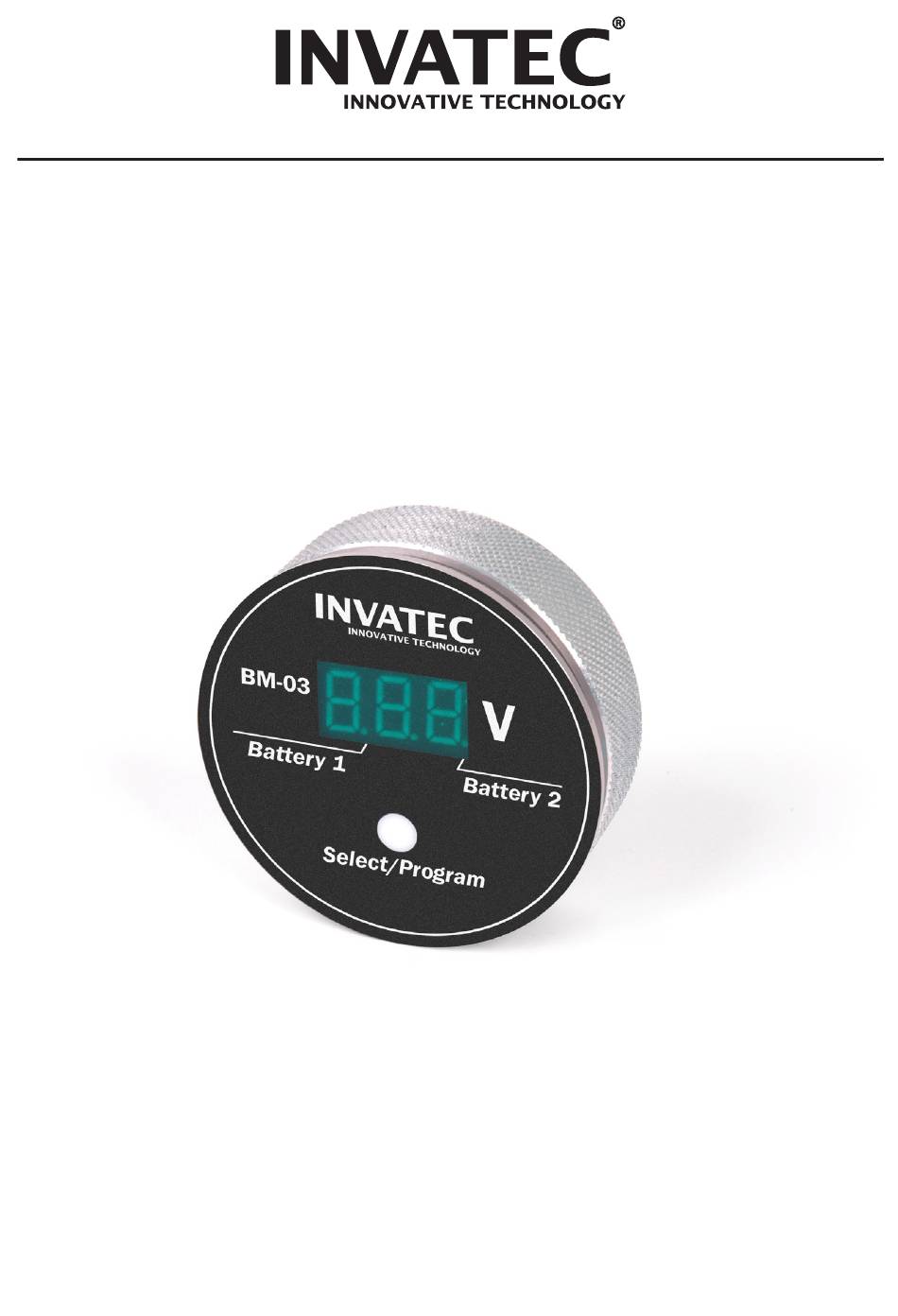

- Page 1 BM-03 Batteri voltmeter og -alarm for 12 and 24 volt systems English User Manual NOTE: Read through the manual and its safety information carefully before installation and use. Subject to change without notice...
- Page 2 Purpose Features The BM-03 is a smart battery meter which can ƒ Low mounting depth measure and display the voltage of one or more ƒ Multiple battery monitoring batteries. It can also generate an alarm for under- Programmable ƒ and over-voltage and voltage differential.
- Page 3 (mV). If no differential voltage alarm is desired the option “---” can be chosen. After the last programmed value is set the display will shortly blank after which the BM-03 will operate normally again.
- Page 4 03. These are: Order of connection First the minus (-) of the BM-03 should be connected to the minus (-) of battery (system). If you are using the alarm output this should be connected now. Next the bat2 (+) connec- tion of the BM-03 should be connected and at last the bat1 (+) connection of the BM-03 with the battery.
