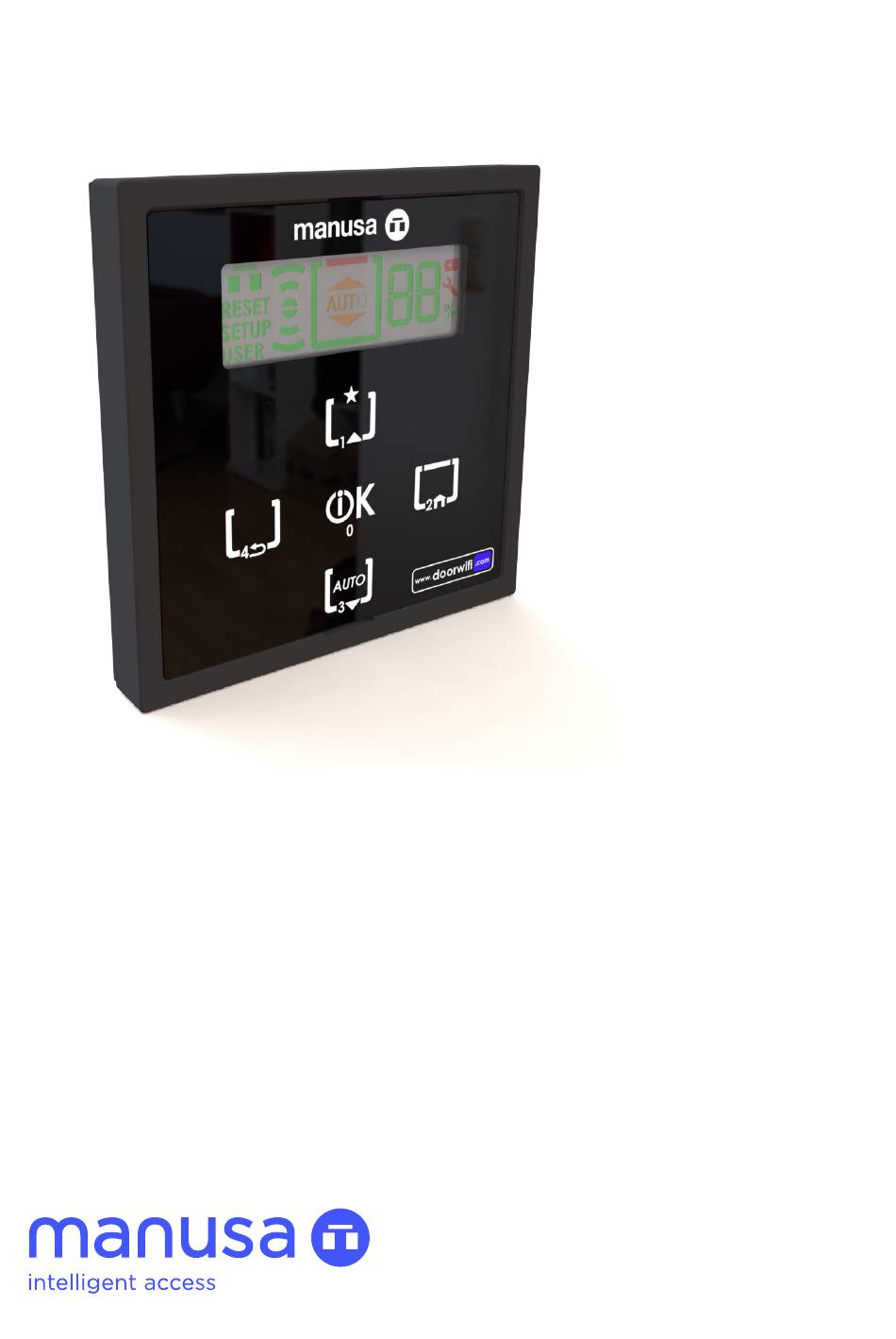

- Page 1 Installation manual Optima+...
-
Page 2: Table Of Contents
Installation manual I Manusa D01230EN-v4 Manusa table of contents 1. Description 1.1 Technical specifications 1.2 Compatibility 1.3 Site 1.3.1 Physical and environmental requirements 1.3.2 Electrical preinstallation requirements 1.4 Safety instructions 1.5 Training requirements for fitters 2. Commissioning 2.1 Assembly 2.1.1 Tools required for the assembly 2.1.2 Description of symbols... -
Page 3: Description
Installation manual I Manusa D01230EN-v4 1. Description Manusa program switch enables the control of the automatic door and the receipt of feedback about the state of the door. Manusa This data is transmitted via the bus. The screen and its illuminated indicators, which are visible from a distance, enable the identification of the various states in an easy and intuitive manner. -
Page 4: Electrical Preinstallation Requirements
In the case of Manusa, the DDS-A monitoring radars indicate to the operator that the door in question is an emergency exit and, as a result, if the batteries are insufficiently charged, the door remains open in any mode other than “Closed”. -
Page 5: Commissioning
Inadequate handling can cause injuries to persons and/or damage to the machine. Important note. You must comply with the instructions accompanying this symbol. 2.1.3 Identification of elements Case: 1) Frame; 2) Front; 3) Manusa bus cable; 4) Screws. 2. Commissioning... -
Page 6: Installation
Installation manual I Manusa D01230EN-v4 Electronics: 1) Screen; 2) Connector #1 Bus Manusa; 3) Conector #2 Bus Manusa; 4) PCA; 5) Button (Low battery). 2.1.4 Installation Detach the front from the frame. 2. Commissioning... - Page 7 Installation manual I Manusa D01230EN-v4 Position the frame as a template. Make holes as required for the installation. The notch down Check and enable the passage of the cable and connector through the indicated space. 2. Commissioning...
- Page 8 With the cable threaded through, screw the frame to the aluminium cover or to the lag bolts in the case of a wall installation. Use the supplied DIN 7982 screws. Connect the cable to one of the Manusa bus contacts. The indicator screen powers up.
- Page 9 Installation manual I Manusa D01230EN-v4 Mount the front. 2. Commissioning...
-
Page 10: Wiring
Installation manual I Manusa D01230EN-v4 2.2 Wiring Visio+ electronics. Wiring to the operator You can use any of the Manusa bus connectors of the program switch or the operator electronics. 2.3 Navigation map Usuario Administrador e-SAT Only exit/ 0. User function... -
Page 11: Hmi Interface
Installation manual I Manusa D01230EN-v4 2.4 HMI interface 2.4.1 Interface elements 2. Keypad Navigation keypad and direct access to modes. 1. Screen 3. www.doorwifi.com Menu, status, mode, and auxiliary icons. Illuminated wifi signal. 2.4.2 Navigation The navigation keyboard is the control system that allows access to the different menus. -
Page 12: Menus
Installation manual I Manusa D01230EN-v4 2.5 Menus 2.5.1 Menus The user menu has five keys for the operation of its functions. Depending on how they are pushed, they can have one function or another: One click: “OK”. menu [T0] 3 s: . -
Page 13: Administrator Menu
Installation manual I Manusa D01230EN-v4 2.5.3 Administrator menu administrator menu You access the by pressing the key [T0] for 3 seconds. You are asked to enter a PIN with [n] digits. Enter PIN (default [9 9 9 9]): The value of digits in “x” is increased or decreased by means of the keyboard arrows, each time the desired digit is selected, confirm with the OK key. - Page 14 Installation manual I Manusa D01230EN-v4 Workflow: Menu 1: Reduction opening This menu defines the second function of the key [T1] (3-sec hold): By default, a *60% reduction opening is defined. This can be set between 1 and 9, whereby 1 represents 10% and 9 represents 90%.
- Page 15 Installation manual I Manusa D01230EN-v4 Workflow: Menu 4: Hold-open time Allows you to control the amount of time that the door is held open. The value range is from 0 to 9, whereby 0 = 0 s and 9 = 9.9 s.
- Page 16 Installation manual I Manusa D01230EN-v4 Workflow: Menu PS: Passwords The passwords are saved in the electronics. There are two levels: Sequence of keys with 4 digits (T1, T2, T3, T4) PS1- User Numeric code of between 4 and 8 digits PS2- Administrator User password [N3].
-
Page 17: E-Sat Menu
Installation manual I Manusa D01230EN-v4 2.5.4 e-SAT menu You access the e-SAT menu by pressing the key [T3] for 3 seconds. Menu Keypad Screen Screen 3 sec Access to e-SAT menu e-SAT Submenu 100 ....Enter sequence Submenu 200 Enter sequence .. - Page 18 Installation manual I Manusa D01230EN-v4 Function Code Keypad WiFi-Off: Turns the wifi connectivity off. Once the sequence 101 has been validated, the icon goes out once there is no wifi connection. WiFi-On: Turns the wifi connectivity on. Once the sequence 102 has been validated, the wifi icon lights up once there is a connec- tion..
- Page 19 Installation manual I Manusa D01230EN-v4 Function Code Keypad Self-adjustament: Once the sequence 201 has been validated, the self-adjustment menu appears on the screen. After a few seconds, the self-adjustment starts, and the marked icons flash When the self-adjustment has finished, the icons stop flas- hing.
- Page 20 Installation manual I Manusa D01230EN-v4 Function Code Keypad Disable warning Lack of security when opening (Password re- quired) Disable warning Lack of security when closing (Password re- quired) Disconnects auxiliary output Evacuation exits: It deactivates the opening of the door for 24 hours in case of error 11 (Password required) Reset.
- Page 21 Installation manual I Manusa D01230EN-v4 Function Code Keypad Reset. Wifi: Once the sequence 303 has been validated, the “Re- set parameters” menu appears on the screen. A password is requi- red and is validated with the key [T0]. After a few seconds, the Wifi reset function starts and the marked icons flash.
-
Page 22: Warning Messages
Installation manual I Manusa D01230EN-v4 2.6 Warning messages When the automatic door operator detects a malfunction in the door operation, the program switch screen will show a numeric code. The code interpretation is summarised in the following table: Warning Possible cause Corrective action Emergency signal enabled. -
Page 23: Warning Icons
Perform proper waste management at the end of the sensor’s life. The tasks of installation, maintenance, adjustment and repair of the sensors are reserved to technical personnel authorized by Manusa. Manusa is not responsible for sensors that have been manipulated by personnel outside Manusa. 3. Maintenance... - Page 24 The characteristics indicated in this manual are purely informative and are in no way binding. The manufacturer reserves the right to make modifications without prior notice. Via Augusta, 85-87, 6ª Planta 08174 Sant Cugat del Vallès · Barcelona · España manusa@manusa.com +34 902 321 400 I +34 935 915 700 www.manusa.com 3. Maintenance...
