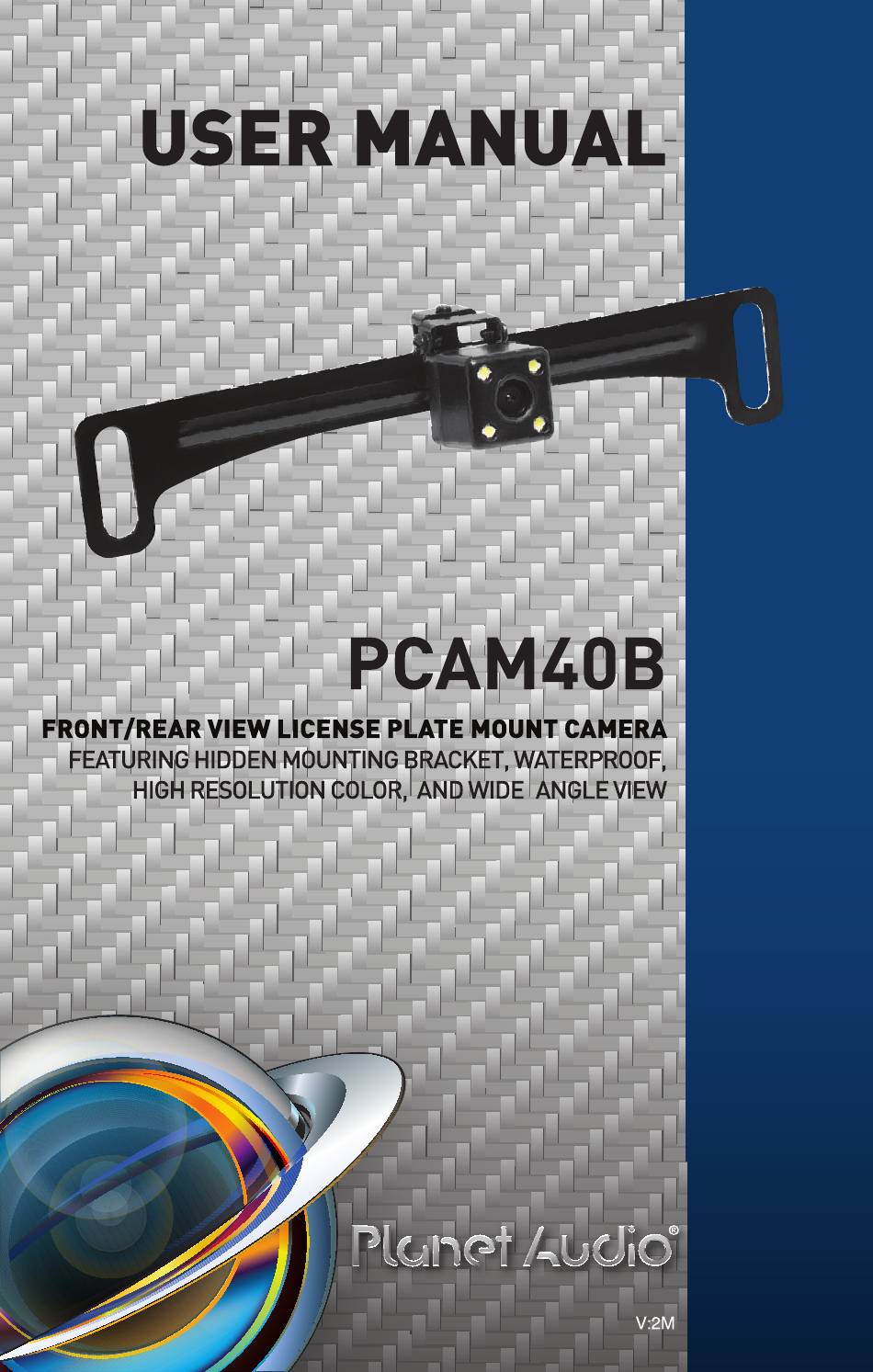

Planet Audio PCAM40B User Manual

Front/rear view license plate mount camera featuring hidden mounting bracket, waterproof, high resolution color, and wide angle view

Download this manual

Table of Contents

Need help?

Do you have a question about the PCAM40B and is the answer not in the manual?

Page 2: Package Contents
Introduction This camera is designed for use as a front view or rear facing back up camera. Conveniently mounted behind your license plate while hiding the mounting bracket. When installed with any of our camera-capable head units, the camera feed may be automatically triggered by shifting into reverse or manually selected from the home screen.
Page 3 Wiring • Follow the steps described below to install this product as a front camera or a rear camera. • For the rear camera view to automatically display on the head unit when reversing, ensure the “REVERSE” input trigger wire is connected to the vehicle’s positive reverse light wire.
Page 4: Troubleshooting
Mounting The camera is designed to be mounted behind the license plate of your vehicle. Line up the camera mount with the existing holes on the license plate. Drilling is not required for the camera mount. Identify an opening near the license plate to route the wiring into the vehicle.
Page 5: Specifications
Image Setting Options • The camera supports AHD (720p) and CVBS (480p) video format. If your monitor does not support AHD (unable to display images), cut the green wire loop (labeled “AHD/CVBS Resolution”) which splits from the camera’s cable to switch the camera to CVBS format. •...
