Summary of Contents for Bofan DM08

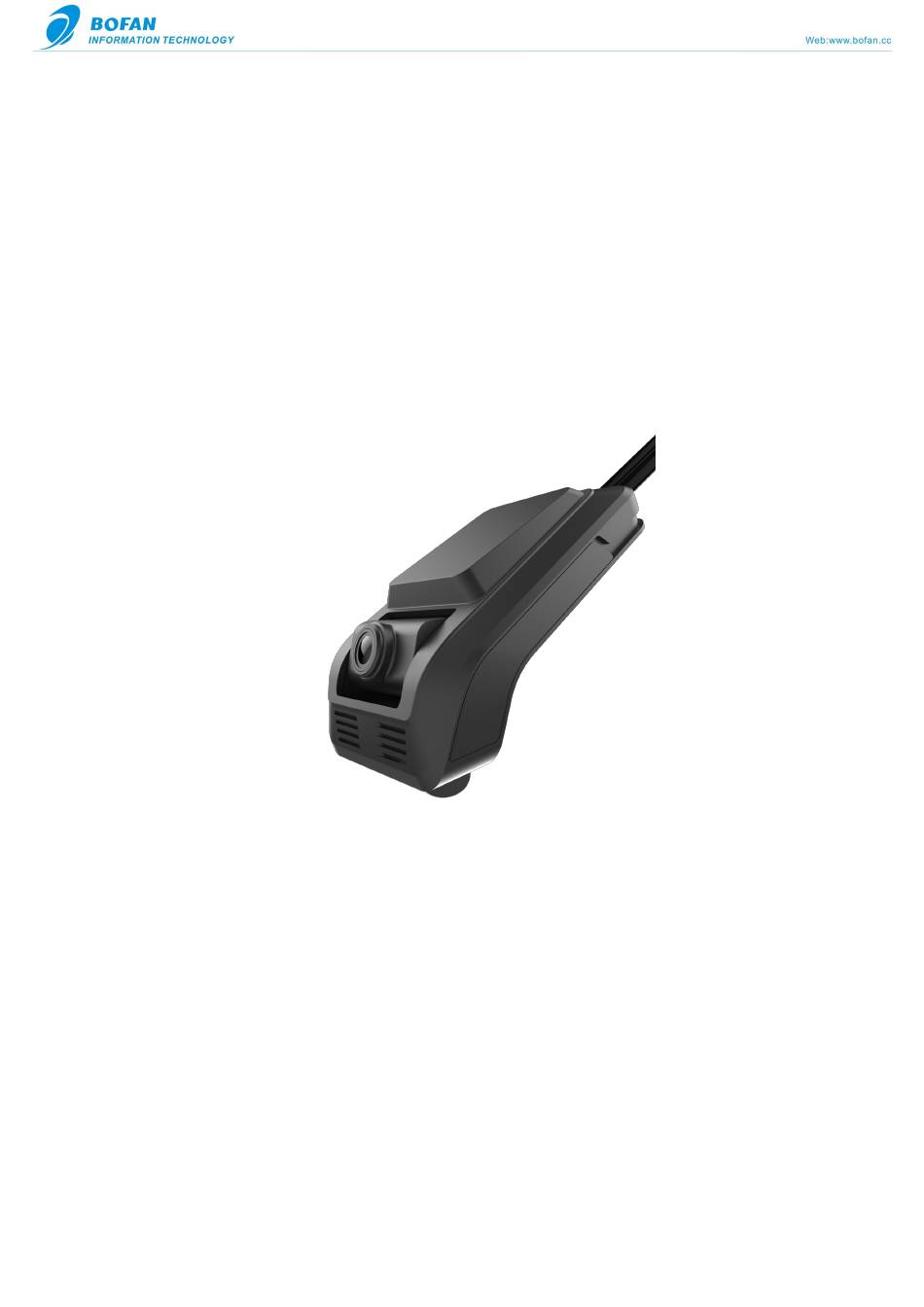

- Page 1 DM08 4G DSM+ADAS Dash Camera User Manual...
-
Page 2: Table Of Contents
Contents Contents ..................................2 1. Introduction ................................3 1.1 Attention ................................3 1.2 Instructions of safety ............................3 1.3 Terminology ..............................3 2. Basic Description ..............................3 2.1 Package ................................3 2.2 Product Appearance ............................4 2.3 Specification ..............................5 2.4 Features ................................6 2.5 Application ............................... -
Page 3: Introduction
Use original parts, qualified batteries and peripheral equipment to avoid damages. BOFAN is not responsible for any harm caused by using wrong parts or cables. BOFAN shall not be liable to any responsibility for accidents caused by customers using the products. -
Page 4: Product Appearance
2.2 Product Appearance [1] Exterior camera [2] Adhesive tape [3] SIM card slot [4] TF card slot [5] Fixing hole [6] Interior camera [7] Restore factory setting key [8] Work indicator [9] Basic BMW line [10] Expand BMW line [11] Heat sinks [12] Fixing hole [13] Protective plate [14]MIC... -
Page 5: Specification
Extended BMW line: external camera interface X2, CVBS video output interface, io2 alarm input, as shown in the figure below 2.3 Specification Basic configuration ARM Cortex-A7 1.0GHZ Memory Outside camera 2MP sensor,95 Degree.F4.3 Support wide dynamic WDR In-car camera 1MP sensor,115 Degree Wide angle.F2.16 With infrared night vision, the video is clearly visible in the dark environment in the car Dual memory card Support TF cards，32GB/64GB/128G/256G... -
Page 6: Features
file format Special file system, can export asf file Network parameters All domestic Netcom supports China Mobile, China Unicom, telecommunications cards, and IoT cards; Overseas support for global frequency bands； WIFI 2.4G frequency, support WIFI STA/AP mode, support mobile preview External Interface powered by 9V-36V Ground... -
Page 7: Application
4G version The built-in super capacitor ensures that the recorder can continue to work for 5 seconds under abnormal power failure to protect the integrity of video files. It has information acquisition interface, which can collect video, log information, etc. ... -
Page 8: Step3：Bmw Line Connection
Step3：BMW line connection The red and black lines connect directly to the car's battery or receive the battery out of the insured total power point, the red line is positive, and the black is negative. The yellow line is connected to the car ignition line ACC switch (i.e. the gear switch before the car starts the motor), the unit will start automatically when the car key is turned on and the vehicle key will be switched off automatically if the vehicle key is turned off. -
Page 9: Step6：Paste Recorder
Step8：mobile phone connection recorder Download and install the app from this link: https://download.bofancloud.com/apk/DM08-App.apk Turn on WiFi on the mobile phone, search for WiFi open by the device / device LAN WiFi, and click Connect. -
Page 10: Start Tracking
4. Start Tracking You can start to track the camera after GSM and GPS light work normally. 4.1 Dash Camera server setting: Open App, click “Setting”, Password is 111111 Set Tracker ID Go to menu “System Manage” -> “Terminal Config” Dev ID is the tracker id, format is12 digital number, should start with your FMS ID. -
Page 11: Tracking By Fms Platform
Central Server Go to menu “System Manage” -> “Network Settings” Protocol: JT808-2011-M1 Gps interval: 30 or 60 Server IP: ip.fmsdns.com Server Port: 10115 Note: Generally Dash camera can connect with our platform with the default settings, if not, then try to set APN. Set SIM card APN ... -
Page 12: Live
Name: can be any unique name for your camera. Tracker ID: should be same with the Dev ID. Model: select the model number 10115 Cameras: select 2 or 3 (if connects DSM camera). Please click “Submit” button after you finish the basic information. 4.3 Live... -
Page 13: Playback
4.4 Playback Note: The selected date range cannot exceed one day. 5. Trouble Shooting 5.1 Device Reset: The device reset button can restore the WIFI of the device to the default AP mode (WIFI name: M08_TEST, password :88888888). The device reset button is positioned next to the TF card, as shown below. 5.2 Common trouble shooting Symptom Description Solution of the fault... -
Page 14: Sd Card File Manager
Power off the device, take out the SD card, and connect to pc, windows can find the U Disk as below: Notice: windows may prompt that the u disk need to format, please ignore it, DO NOT format! 6.2 Playback: Download the player from this link: https://download.bofancloud.com/DM08/DashcamPlayer.exe Open DashcamPlayer application:... -
Page 15: Export Video Files
Select u disk ( for example G:), player search all videos in the sd card automatically. 6.2 Export Video Files: Download the file manager application from this link: https://download.bofancloud.com/DM08/DashcamFileManager.rar Click FILE MANAGER.exe and open the File Manager application. Select correct U disk and select “Search” condition as below:... - Page 16 Double click the date, after a few seconds, all videos are listed below. Select video files and save direction, click “export” button to export video files as below:...
