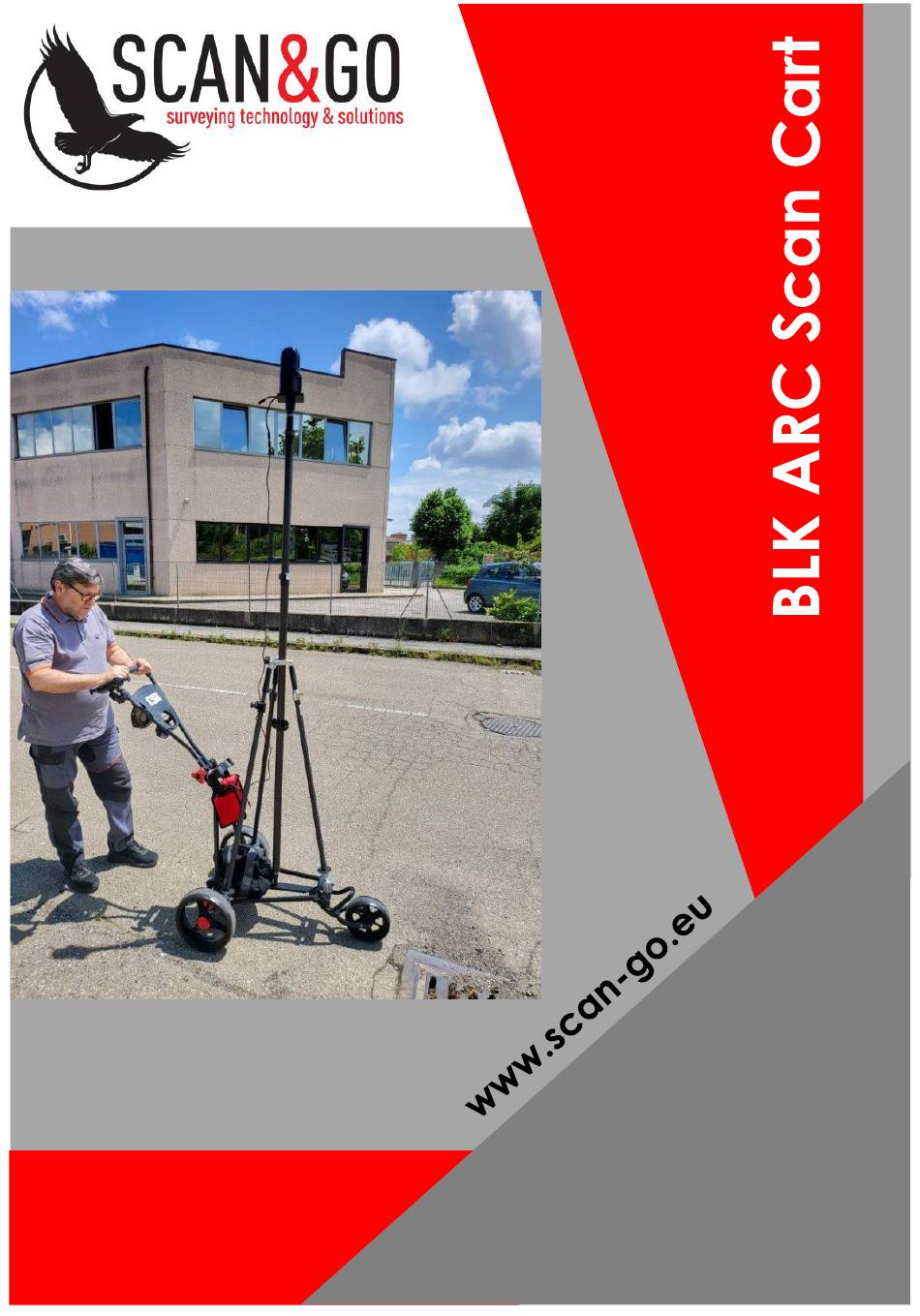

- Page 1 SCAN&GO srl Via della Tecnica 34 A/B - 41051 Castelnuovo Rangone (MO) - Italy MANUAL OF USE Cell. +39 3924627285 info@scan-go.eu June 2023...
- Page 2 BLK ARC Scan Cart CART WITH TELESCOPIC CARBON POLE BLK ARC Scan Cart is a system mounted on a three-wheel trolley that allows you to move freely on the ground, inside industrial buildings, cycle paths and sidewalks. The extendable carbon pole can bring the BLK ARC to a height of 3.95 meters above the ground and can be easily levelled thanks to the carbon tripod with three adjustable legs.
- Page 3 BLK ARC Scan Cart Trolley with carry bag for transportation Extandable Carbon Pole with rigid case for transportation Carbon Tripod with carry bag for tran- sportation Ballast bag (gravel or sand not inclu- ded) Spherical Bubble Battery bag Phone holder...
-
Page 4: Assembly And Use Instructions
ASSEMBLY AND USE INSTRUCTIONS Open the red locking lever and insert the wheels inside the Rotate the front wheel until the locking seat. clip clicks. Close the red lever to lock the wheels. To close the wheel, keep the red button Work in the opposite direction to extract the wheels. - Page 5 ASSEMBLY AND USE INSTRUCTIONS Insert the tripod inside the hou- Lock the tripod spheres Insert the telescopic pole sing with the special elastic pins Loosen the locking knobs of the tripod's extensible legs and by acting on the buttons, level the pole, lock the pole and close the leg locking knobs ATTENTION: DURING THE MOVE ALL THE BLOCKS MUST BE CLOSED Place phone holder...
- Page 6 ASSEMBLY AND USE INSTRUCTIONS Remove the original cable and replace it with the cable supplied with the trolley, loosen the 3 locking screws Do not wrap the cable around the bottom of the Mount the bracket by letting the cables enter into scanner the appropriate seats Place the bracket on the locking screws and slide it to the fixation position...
- Page 7 ASSEMBLY AND USE INSTRUCTIONS Screw the 5/8” female adapter on the carbon pole and mount the instrument Lock the instrument by screwing the side knob, open the connector cap Connect the power cable extension and insert it into the battery...
