EZ MIDI CONTROL
EZ MIDI Control- The fastest way to add MIDI, savable presets
and tap tempo to nearly an effect design. Easily Customize
using the EZ Wizard board for your purposes without coding.
Use the features you need and not worrying about the ones
that you don't.
7 PWM / Control voltage outputs
Control up to 3 MCP42xxx dual digital pots.
Over 200 LFO/Modulation sources available.
Supports analog switch or latching relay bypass.
1
Subdecay Studios, Inc. ©2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ MIDI CONTROL and is the answer not in the manual?

Questions and answers

Related Manuals for Subdecay EZ MIDI CONTROL

Summary of Contents for Subdecay EZ MIDI CONTROL

  • Page 1 EZ MIDI CONTROL EZ MIDI Control- The fastest way to add MIDI, savable presets and tap tempo to nearly an effect design. Easily Customize using the EZ Wizard board for your purposes without coding. Use the features you need and not worrying about the ones that you don’t.

  • Page 2: Table Of Contents

    Page 3 Introduction Dimensions Page 4 EZ MIDI Control pins Page 5 Simplified Schematic EZ Wizard breakout board with EZ MIDI Control Page 6 Analog switch bypass configuration example Page 7 Latching relay bypass configuration example Page 8 EZ Wizard breakout board...

  • Page 3: Introduction

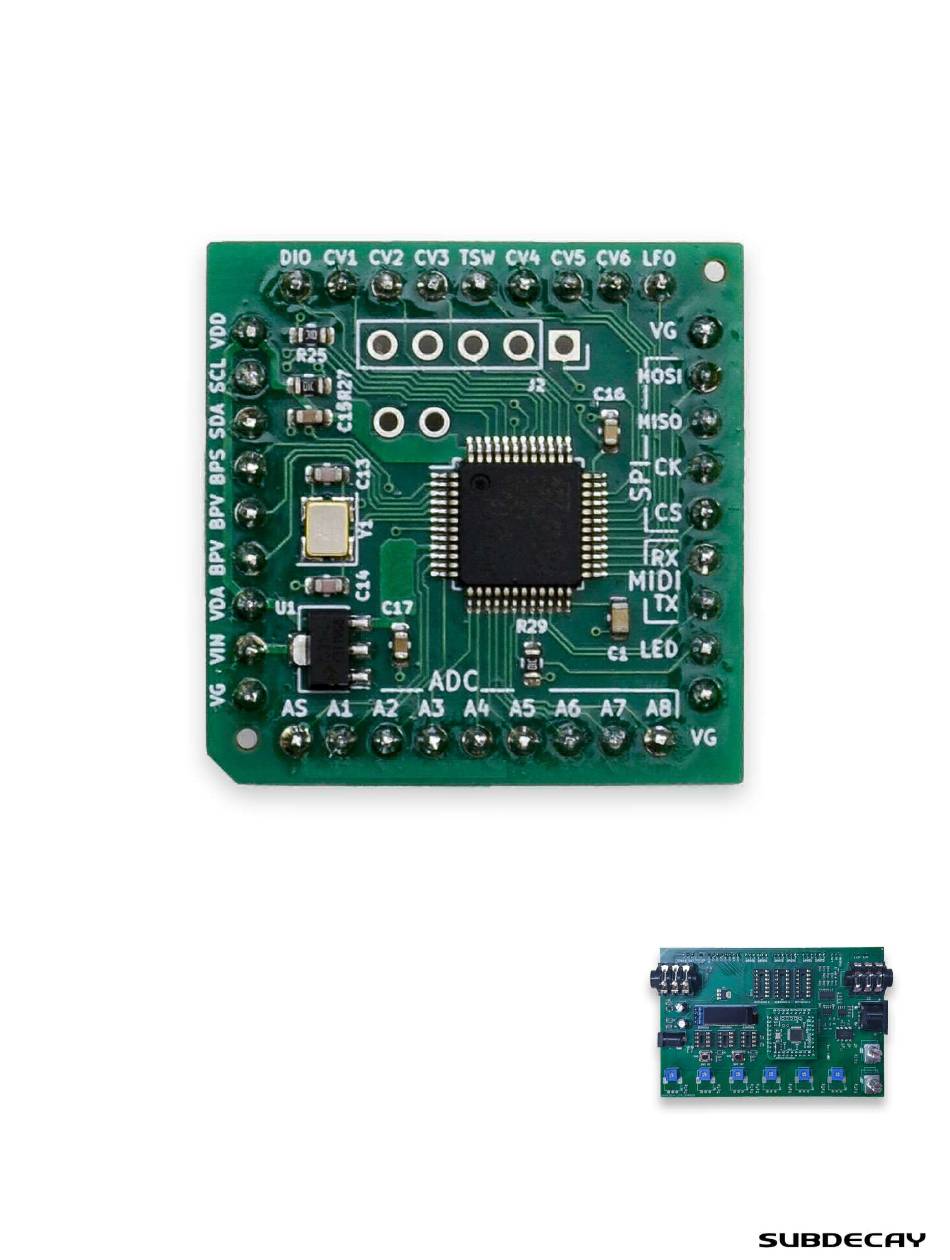

    INTRODUCTION: EZ MIDI Control is a flexible and accessible way to add MIDI, savable presets and tap tempo to nearly any effect design. Integrate this time saving solution into your effects designs with MCP42xxx digital pots and/or control voltages. Available as a 36 pin through hole solder board or as LQFP-48 ICs.
  • Page 4 EZ MIDI CONTROL PINS: PINS DESCRIP TION Some input pins can be damaged if the input voltage exceeds 3.3 volts. Some pins are 5 volt tolerant. ANALOG SIGNAL INPUT: Biased to 1.65 volts. Used for envelope LFO/modulators. Pot inputs. 0 – 3.3 volt input.
  • Page 5 SIMPLIFIED SCHEMATIC OF EZ MIDI CONTROL ON THE EZ WIZARD BREAKOUT BOARD: Power filtering, bypass and effects signal not shown. Subdecay Studios, Inc. ©2024...
  • Page 6 EXAMPLE SCHEMATIC USING CD4066 FOR ANALOG SWITCH BYPASS: Power filtering not shown. Test with your design before integrating it into a build. Subdecay Studios, Inc. ©2024...
  • Page 7 EXAMPLE SCHEMATIC USING A TX2-L2-5V LATCHING RELAY. Power filtering not shown. Amplification of the pulse signal from the EZ MIDI control board are not shown. Be aware that latching relays require significant current to change state, and may be damaged if the coil voltage is exceeded. This schematic was tested with a TX - L2-5V latching relay.
  • Page 8 The breakout board serves both as a prototyping platform and a quick way to customize EZ MIDI CONTROL's function for your builds or projects. : On power up EZ MIDI Control will detect any EEPROMs present. For normal operation socket a EEPROMs 24LC32 or equivalent EEPROM in socket 1.
  • Page 9 POT 3 & 4 do NOT control LFO depth and offset. EEPROM 1 Normal operation. EZ MIDI control checks the eeprom for design customization data. If this data is blank functionality is the same as No EEPROM, but with savable presets. EEPROM 2 Use the OLED display, SW1 &...
  • Page 10 CUSTOMIZATION OP TIONS: CONTROL ROUTING FOR NON - LFO BASED DESIGNS Subdecay Studios, Inc. ©2024...
  • Page 11 CUSTOMIZATION OP TIONS: CONTROL ROUTING FOR LFO BASED DESIGNS Subdecay Studios, Inc. ©2024...

  • Page 12: Ez Wizard Breakout Board

    SW1 YES SW2 RESTART Press SW1 to save the design customization settings to the EEPROM. SAVE Afterward EZ MIDI control will start normal operation with design settings in effect. (saving presets is disabled while the EEPROM is in socket 3)
  • Page 13 SW1 YES SW2 RESTART Press SW1 to save the design customization settings to the EEPROM. SAVE Afterward EZ MIDI control will start normal operation with design settings in effect. (saving presets is disabled while the EEPROM is in socket 3)
  • Page 14 SW1 YES SW2 RESTART Press SW1 to save the design customization settings to the EEPROM. SAVE Afterward EZ MIDI control will start normal operation with design settings in effect. (saving presets is disabled while the EEPROM is in socket 3)
  • Page 15 0-127 FULL LFO SELECTION PART 2 >0 BYPASS EFFECT >0 ENGAGE EFFECT >0 FLIP BYPASS STATE 0-127 0 BYPASS EFFECT | >0 ENGAGE EFFECT >0 LFO SELECT -1 (FROM FULL LFO LIST IF WARP LFOs ARE ENABLED) >0 LFO SELECT +1 (FROM FULL LFO LIST IF WARP LFOs ARE ENABLED) FOR TROUBLE SHOOTING AND DATA >0 SERIAL PRINT ALL EEPROM1 DATA >0 SERIAL PRINT ALL DESIGN CUSTOMIZATION DATA >0 SERIAL PRINT CURRENT PARAMETERS Sending MIDI PC messages 0-10 will change the current preset. If enabled by design customization Subdecay Studios, Inc. ©2024...
  • Page 16 Memory and storage addresses are usually referred to in hexadecimal. Any hexadecimal numbers below will be prefixed with 0x. The 24LC32 EEPROM’s data capacity is 32Kbits. This is a total of 4096 bytes. EZ MIDI control addresses the EEPROM’s storage in 128 byte “sectors.”...

  • Page 17: Eeprom Data

    (0X00C350 – 0x2DC6C0) * If using LFO based design customization Parameter 7’s range is 0-215 allowing selection of the full LFO list. LFO shapes not assigned to Pot 7 can only be set via MIDI. See MIDI implementation. Subdecay Studios, Inc. ©2024...
  • Page 18 STARTUP PARAMETERS: Applicable when EZ MIDI Control is built into an effect with EEPROM1 configuration. On startup EZ MIDI control reads the EEPROM to retrieve customization design data, user presets and power up data. The power up data consists of two parameters, the MIDI channel and MIDI clock enabled/disabled.

  • Page 19: Warp Lfo List

    SoftFadeToCenterTri4 HardFadeToCenterRamp2 SoftFadeToCenterSqr8 SoftFadeToCenterTri8 HardFadeToCenterRamp4 SoftFadeToCenterSqr16 SoftFadeToCenterTri16 HardFadeToCenterRamp8 HardFadeToCenterSqr2 HardFadeToCenterTri4 HardFadeToCenterRamp16 HardFadeToCenterSqr4 HardFadeToCenterTri8 SoftFadeToZeroRamp2 HardFadeToCenterSqr8 HardFadeToCenterTri16 SoftFadeToZeroRamp4 HardFadeToCenterSqr16 SoftFadeToZeroTri4 SoftFadeToZeroRamp8 SoftFadeToZeroSqr2 SoftFadeToZeroTri8 SoftFadeToZeroRamp16 SoftFadeToZeroSqr4 SoftFadeToZeroTri16 HardFadeToZeroRamp2 SoftFadeToZeroSqr8 HardFadeToZeroTri4 HardFadeToZeroRamp4 SoftFadeToZeroSqr16 HardFadeToZeroTri8 HardFadeToZeroRamp8 HardFadeToZeroSqr2 HardFadeToZeroTri16 HardFadeToZeroRamp16 HardFadeToZeroSqr4 Subdecay Studios, Inc. ©2024...

  • Page 20: Serial Output

    SERIAL OUTPUT: On power up EZ MIDI control sends start up data to the serial pins. Additionally there are serial print options via midi and the setup menu. This is useful for storing data on a computer and writing to EEPROMs from the computer.

  • Page 21: References And Links

    MIDI Jack https://mou.sr/3zZqXi6 6N138 High Speed Optocoupler (used for MIDI in) : Refers to powering on EZ MIDI control and/or relevant data that is used when first Power up powered up. : Data stored on the eeprom used to customize Design data or Design customization data functionality.
