Original instruction manual

DRS-KS400

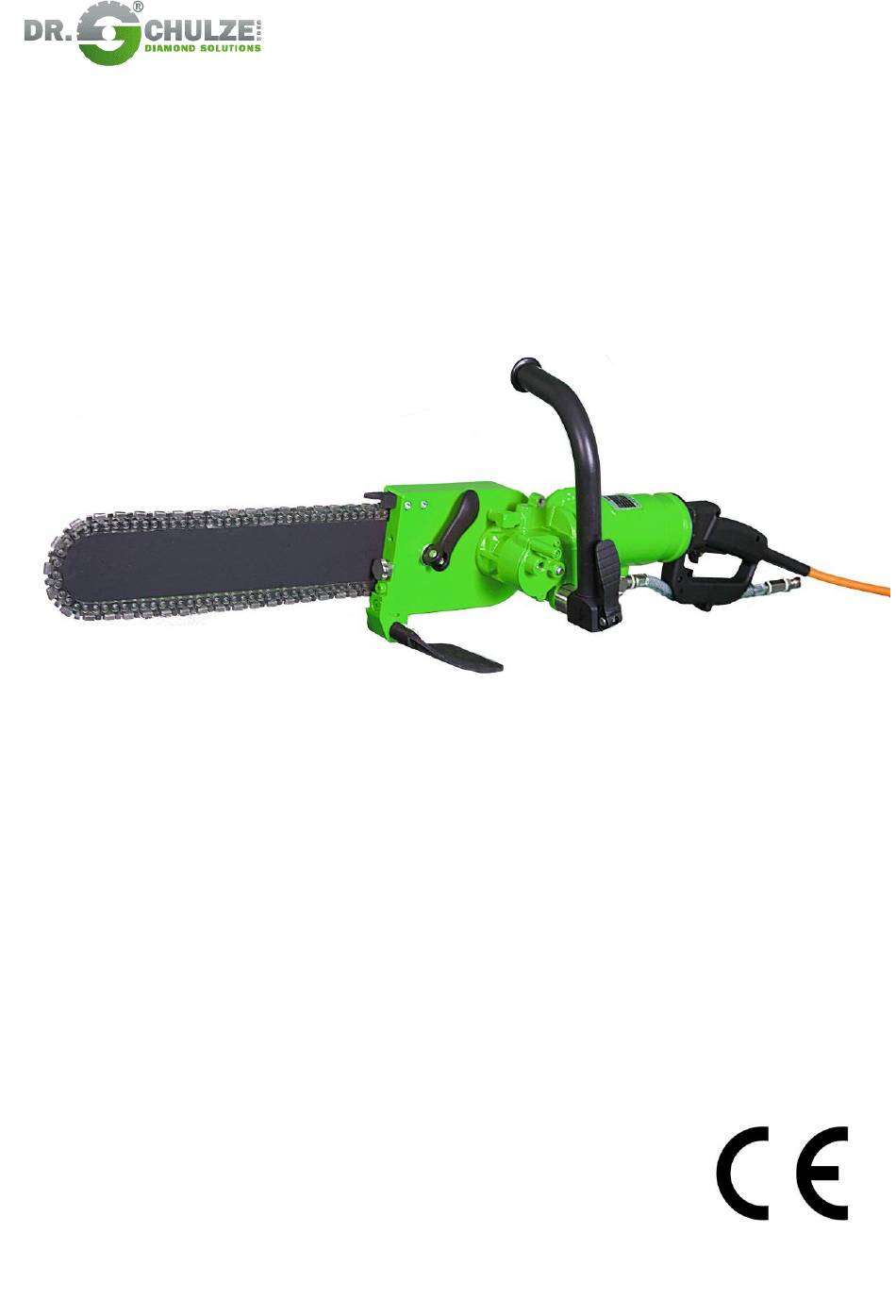

Device designation: Chain saw DRS-KS400

Device number: Nameplate

Year of manufacture: 2018

Country of manufacture: Germany

Read the operating instructions before each start-up

Table of Contents

Need help?

Do you have a question about the DRS-KS400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dr.Schulze DRS-KS400

Page 1 Original instruction manual DRS-KS400 Device designation: Chain saw DRS-KS400 Device number: Nameplate Year of manufacture: 2018 Country of manufacture: Germany Read the operating instructions before each start-up...
Page 2: Table Of Contents
Table of contents SYMBOLS........... . . 3 EXPLODED VIEW.
Page 3: Symbols
Symbols Auf der Maschine - On the machine S Y M B O L S Betriebsanleitung vor Inbetriebnahm e sorgfältig durchlesen! Please read operators m anual carefully before putting the m achine into operation! N otice d’utilisation à lire attentivem ent avant la m ise en service de la m achine! Leggere la m anuale di istruzioni con attenzione prim a dell'utilizzo della m acchina! ¡Estas instrucciones se deben leer atentam ente antes de poner en m archa la...
Page 4 Exploded view DRS-KS400 DRS-KS400...
Page 5: Exploded View
Exploded view FU6 U FU6 U...
Page 6: General Safety Instructions
1. General safety instructions INSTRUCTION MANUEL - D IAMOND-CHAINSAW KS400 Please read carefully before commissioning the machine! W ith the Dr. Schulze Diamant chainsaw you have an excellent quality product which you will certainly be very satisfied with if you use it in a certain way. G E N E R A L S A F E T Y I N S T R U C T I O N S WARNING! Read all safety informations and instructions.
Page 7 1. General safety instructions Avoid unintentional commissioning. Make sure the power tool is turned off before connecting, picking up or carrying it to the power supply and/or battery. If you have your finger on the switch when carrying the power tool or if you connect the unit to the power supply switched on, this can lead to accidents.
Page 8 2. Special security measures S P E C I A L S E C U R I T Y M E A S U R E S - Please note! General This diamond chain saw is intended for commercial use only and may only be operated by instructed persons.
Page 9 2. Special security measures Sawing technology Assume a safe working position with a firm stand. Always hold the machine firmly with both hands. Always stand parallel to the blade when sawing. Never stand exactly behind it, because in case of a kickback the chain saw moves in the plane of the sword. Never use the chain saw's kickback area for cutting.
Page 10 2. Special security measures If the diamond chain jams or you interrupt the work, switch off the machine and keep it steady until the chain has come to a standstill. Never try to pull the still running diamond chain out of the cut, otherwise a kickback may occur. Determine and eliminate the cause of jamming.
Page 11: Technical Description
T E C H N I C A L D E S C R I P T I O N Your DRS-KS400 is an electrically operated diamond chain saw which is exclusively designed for cutting stone, concrete and masonry intended for commercial use.
Page 12 The complete saw unit consists of the drive unit [2] with switch handle [1], an adjustable handle [3] and the chain housing [4]. The DRS-KS400 is electrically supplied via the frequency converter FU6U. DRS-KS400 and FU6U are protected against water jets, i.e. no water can get into the motor when used as intended.
Page 13: Preparation
4. Preparation P R E P A R A T I O N Make sure that the machine has not been damaged during transport. Check that the Mains voltage corresponds to the voltage specified on the nameplate. 4.1 Electrical connection 4.1.1 230V ~ Only connect the DRS-K400 via the FU6U frequency converter to a properly earthed earthed socket using the supplied adapter cable.
Page 14 4. Preparation DRS-K400 and FU6U can be operated on a generator or transformer if the following conditions are met: Operating voltage within +5% and -10% of rated voltage Integrated automatic voltage regulator with starting Frequency 50 – 60Hz; max. 65 Hz AC voltage, power output at least 230V ~ - 4,5kVA 400V 3~ - 11 kVA...
Page 15 4. Prepartation Assembly/replacement of the drive wheel, the sword and the diamond chain Open the eccentric lever [11] to the horizontal position and screw it back until it is in the Cover [14] of the chain housing [4] can be removed. Drive wheel Remove the factory-fitted circlip [16] using circlip pliers (not included in the scope of...
Page 16 4. Preparation All chains have a tendency to stretch under load. If the distance between driving link and centreboard is greater than 12 mm (1/2"), the chain must be retensioned (see distance A). Raise the tip of the sword by hand and close. Put the eccentric lever in vertical position.
Page 17: Operation
6. Cleaning / Maintenance OPERATION Material The chain saw may only be used for cutting rock, concrete and masonry. The saw must not be used for cutting pure metals. For cutting ductile iron pipes, special chains are available from specialist dealers. When cutting reinforced concrete, try to cut the reinforcement together with as much concrete as possible - this protects the chain.
Page 18 6. Cleaning / Maintenance Pre-cutting If you are using an angle grinder for pre-cutting, make sure that the thickness of the pre-cutting blade is matched to the diamond chain. Never use an angle grinder with a conventional cutting disc for pre-cutting. The narrow saw groove created in this case will cause the diamond chain to jam and can lead to dangerous kickback.
Page 19: Frequency Inverter
7. Frequency inverter F R E Q U E N C Y I N V E R T E R The diamond chain saw DRS-K400 is controlled by the water-cooled frequency converter FU6U. Operate the frequency converter only via a residual current circuit breaker type B. After switching on the main switch, please wait approx.
Page 20 7. Frequency inverter Status messages change their state automatically, error messages are displayed during switching the machine on again is deleted (provided the source of the error has been eliminated).
Page 21 8.Guarantee GUARANTEE General warranty conditions of Dr. Schulze GmbH It is hereby confirmed that the machines supplied are in accordance with the general guarantee conditions and the general conditions of sale and delivery of the Dr. Schulze GmbH the following conditions apply: 1.
Page 22 8.Guarantee 3. Warranty processing In the event of a defect in the machine during the warranty period, our customer service department will inform you about the most appropriate and effective method of repairing the damage and will forward your request to the nearest authorised Dr. Schulze GmbH service centre. Alternatively, you can return the machine together with a written description of the problem and the damage caused, together with a copy of the purchase invoice, at your own expense directly to our factory, where a full inspection will be carried out immediately.
