Summary of Contents for Deco Home DGPWSH100

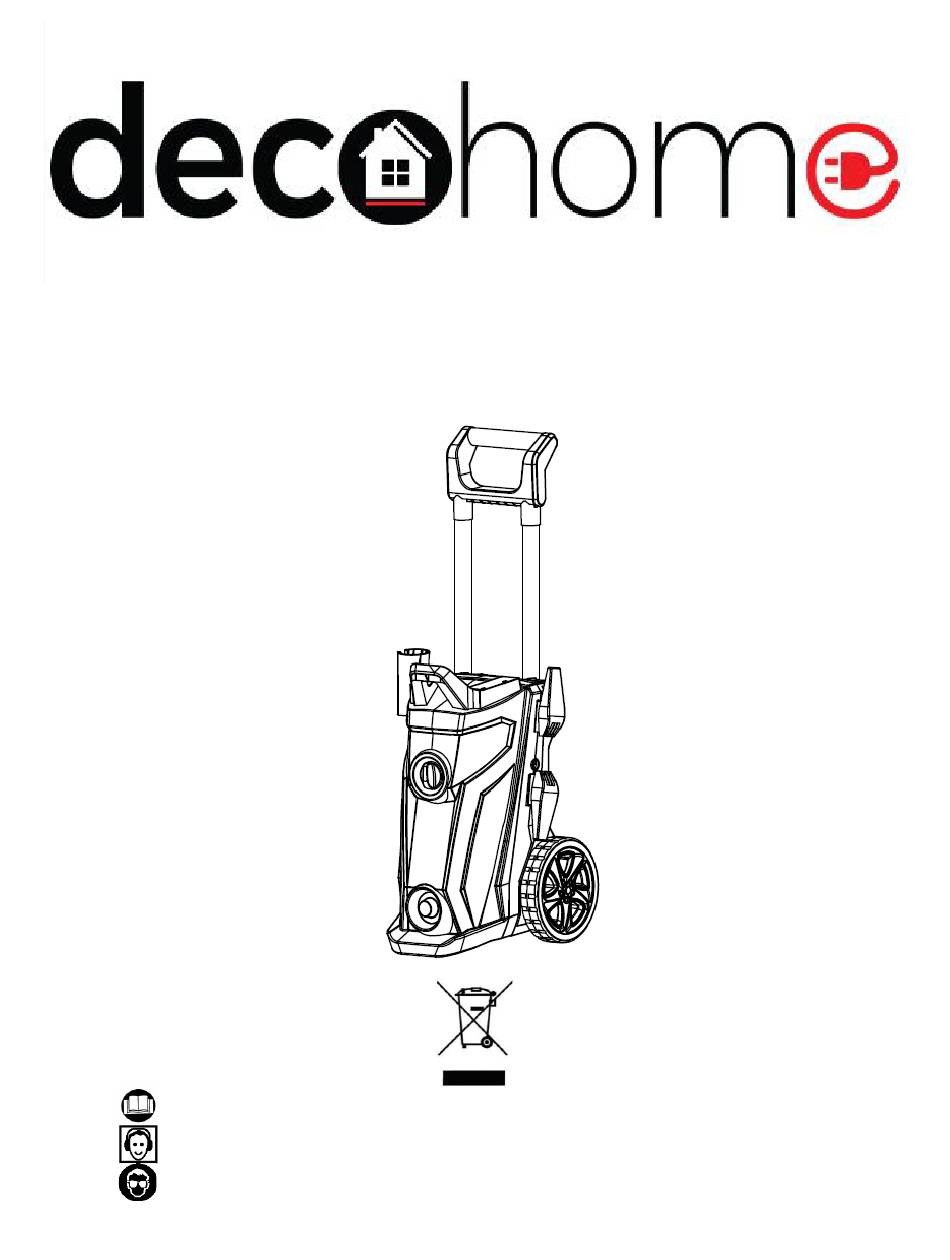

- Page 1 Instruction Manual for DGPWSH100 High Pressure Washer Read the instructions before using this machine. Appropriate ear protection must be worn when machine is in use. Wear safety glasses when you use this machine. 1 / 14...
- Page 2 Dear Customer, Thank you very much for purchasing our product. This product is an integration of high technology and refined craftsmanship, featuring stable quality and excellent performance. For your easy use please read this manual carefully before operation. Please follow the instruction accordingly.
-
Page 3: Part List
Part List CL-1996AM Gun Holder 6. Gun Lance with Nozzles Holder Power Cord Holder 7. Spray Nozzles Unit 8. Detergent or Foam bottle High Pressure Water Outlet Hose 9. Water Inlet Connector Gun Set 10. Needle 3 / 14... -
Page 4: Shock Hazard
Safety Rules Safety “Must Nots” 1. DO NOT use the appliance with inflammable or toxic liquids, or any products which are not compatible with the correct operation of the appliance. EXPLOSION OR POISONING HAZARD 2. DO NOT direct the water jet towards the unit itself, electrical parts or towards other electrical equipment. -
Page 5: Short Circuit
ground connection. 21. DO NOT use the appliance after drinking alcohol, taking medicine or if in a tired state. 22. DO NOT direct the jet towards an unstable or weak wall to avoid damage and danger. 23. Use only extension electrical cable with waterproof plug and socket. 24. - Page 6 ENSURE that all people or animals keep a minimum distance of 16yd. (15M) away when machine is in operation. INJURY HAZARD 12. The unit should STAND when it’s working. 13. This appliance can NOT be stored in a damp environment. 14.
- Page 7 Storage and environment Steps of storage 1. Switch the appliance off. 2. Turn off the water supply tap. 3. Remove the plug from the socket. 4. Discharge the residual pressure from the gun until all the water has come out of the nozzle. 5.
- Page 8 Main Technical Data CL-1896AM Motor: Carbon brush Rated pressure: 10.0MPa/100bar/1450PSI Permissible pressure (max.): 15MPa/150bar/2176PSI Inlet (max.): 0.3MPa/3bar/44PSI Rated flow: 5.5 L/Min 1.3GPM Max. flow: 9.0 L/Min 2.4GPM 100V—120V / 60Hz Voltage/Frequency: 220V—240V / 50Hz Rated power input: 1800 W Degree of Protection: IPX5 Protection class: Sound power level:...
- Page 9 Electrical Diagram Assembly before operation Please read the below Operation Instruction carefully and follow it to avoid any problems when installing and operating the appliance. Please go to the dealer for exchange if assembly fails for not-matching accessories. 1．Fix the matching end of the hose firmly into the gun handle. See figures 1 and 2 2.
- Page 10 5. Fix the water inlet connector to the inlet pipe of unit. See figure 7 6．Connect the water inlet hose to the water inlet connector. See figure 8. 7．Connect the lance to the gun handle. See figures 9 and 10. 8．Turn the tap on, making sure that the tap is fully open.
- Page 11 11. Put plug into socket of main electric power. Now, the pressure washer is ready for use. Adjusting the spray The lance nozzle is changeable to allow you to adjust the spray shape including 0°, 15°, 25°, 40° To adjust the nozzle, proceed as follows: 1．Hold the lance in one hand.
- Page 12 4. Suction: suction (height of absorbing water) less than 1 meter/yard is recommended. 5. Time needed: when pressure washer applies self-suction, it’ll take ≤ 30S. If the machine does not produce water from the nozzle after it is attempting operation for more than 60S, you must stop the machine and check if following conditions exists: a) the height of absorbing water is too high -- It must be less than 1meter/yard.
- Page 13 13 / 14...
-
Page 14: Manufacturer's 1-Year Limited Warranty
Deco Home 80 Carter Drive Edison, NJ 08817...
