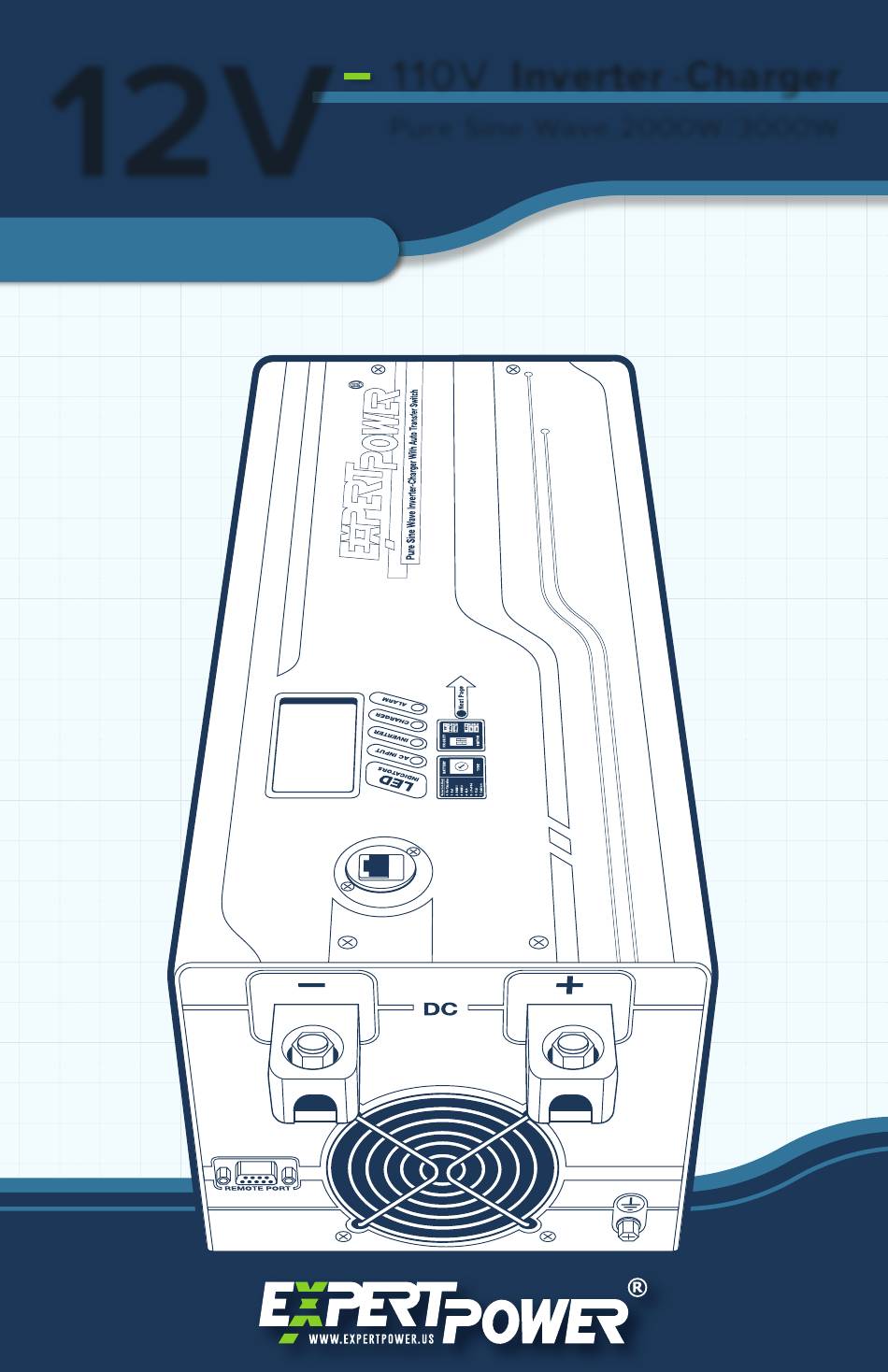

- Page 1 110V Inverter -Charger Pure Sine Wave 2000W/3000W For Models: OWNER’S MANUAL IVOCH2KW / IVOCH3KW...
-
Page 2: Table Of Contents
Table of Contents Warning General Information Pg. 2 Product Overview Introduction Pg. 3 Inverter Diagram Pg. 4 Top Panel Overview Pg. 5 Technical Specs Pg. 5-6 Installation Guide Before You Begin Pg. 7 Mounting Guide Pg. 8 Wiring Guide DC Wiring Connection Pg. -
Page 3: Warning
WARNING PLEASE READ INSTRUCTIONS BEFORE CONTINUING This manual contains important safety installation, and operation instructions for the ExpertPower Inverter-Charger. Please do not operate the Inverter-Charger without reading this manual first. General Information Safety Information and Warnings The safety of the consumer has been considered prior to designing and creating this product. -
Page 4: Product Overview
Product Overview Introduction ExpertPower 12V-110V Inverter-Charger Our inverter-charger is a Pure Sine-Wave, Low-Frequency unit equipped with an On-board Intelligence System that handles most of the heavy lifting in your electrical system. The inverter converts 12-volt direct current (VDC) into 110-volt alternating current (VAC), which is generally the power used in conventional homes through wall outlets. -
Page 5: Inverter Diagram
Inverter Diagram Top View DISPLAY PANEL COMMUNICATION Front View Switch Panel Back View Component Key Front View Top View RS232 Communication Port Terminals: Grounding Terminal 1. Negative (-) 2. Positive (+) Switch Panel LCD Screen Switch Panel LEDs Switch Panel Port On/O Switch Status LEDs 26 ft Communication Cable... -
Page 6: Top Panel Overview
Top Panel Overview Panel LED/Switch Functions AC Input AC Input LED light GREEN when shore power is connected. Inverter Inverter LED lights YELLOW when it is active. Charger Charger LED lights GREEN when charging. Alarm Alarm LED lights RED when fault is detected. Battery Type Battery Type selector 0-9 (Pg. -
Page 7: Charger Specifications
AC Input & Output Specifications Input Voltage Range AC 80V to 131V Nominal Input Voltage 110Vac / 120Vac / 130Vac E ciency ≥98% Low Voltage Shuto 75Vac ± 4% Low Voltage Recovery 80Vac ± 4% Over Voltage Shuto 140Vac ± 4% Over Voltage Recovery 131Vac ±... -
Page 8: Installation Guide
Installation Guide Before You Begin Read All Instructions First It is recommended that you read all sections prior to installation as this product requires attention to detail when setting up. If you require any additional help please contact us (Support Information is localed on the back of the manual). 1. -
Page 9: Mounting Guide
Mounting Guide Before Starting - Testing & Visual Inspection It is also recommended to test the inverter before integrating it into your system for long-term use. Testing first can prevent unnecessary holes to walls and RVs. First, Inspect the inverter visually for any visible damage to its electrical ... -
Page 10: Wiring Guide
Wiring Guide WARNING: Before connecting your inverter; It is always recommended to first set your battery type and priority settings on the inverter-charger. DC Wiring Connection Please see Pg. 15 for more details. Cable Size, Material, and Safety It is recommended to keep the battery bank as close as possible to the inverter. The following table provides a suggested fuse and wiring guide for a 3 ft cable. -
Page 11: Using The Resistor (Quick/Temporary Solution)
Finally, remove the Resistor and quickly finish installing the Negative Cable in the same fashion as you did with the Positive Cable on the previous page. 5 10 SECONDS Resistor Instructional Video To view the video please scan the provided QR code or visit: https://www.expertpower.us/pages/inverter-installation-video... -
Page 12: Ac Wiring Connection
AC Wiring Connection 110V Single Phase The following connection method is entirely optional. To connect the AC terminal block, we recommend using 10-12 AWG wires. The diagram below provides an example of using both AC input and output. However, this inverter charger can be utilized with just AC input or output connection depending on your requirements. -
Page 13: Switch Panel Overview
Switch Panel Overview On Switch and Power Save Functions To activate the inverter-Charger, simply flip the switch on the panel to either "P-Save ON" or "ON." P-Save: Conserves battery power by modulating (sensing) the AC output until an AC load greater than 25 watts is detected. -
Page 14: Basic Connection
AC/DC Operation Basic Connection This diagram represents a typical electrical system, with Shore Power (also known as AC Input) flowing through the inverter-charger to provide AC power, guarded by breakers or fuses while simultaneously charging the battery bank. Similarly, when running on battery power, the inverter will be powered by DC (battery) and then converted to AC, which is safeguarded by battery-specific fuses and breakers. -
Page 15: Dc Priority
When shore power is connected, the inverter will utilize it instead of the battery bank to power the inverter and simultaneously charge the battery bank, also known as the bypass function. You can disable charging by setting the Battery Type switch to 0 (refer to the next page for more details). -
Page 16: Inverter-Charger Settings
WARNING: If the Inverter is powered on while you make changes to the Battery Type and Power Priority switches; the changes will not occur Inverter-Charger Settings until the Inverter is restarted. Using the Battery Type Dial Our inverter is compatible with various types of batteries that have di erent charging algorithms. -
Page 17: Alarms, Behavior, & Display
Alarms, Behavior, & Display Alarms & Protections Alarm Indications Fault 2000W Model 3000W Model Audio Alarm Behavior Alarm LED Beeps every 1s after 14 min., and 2200 - 2500W 3300 - 3750W inverter shuto after the 15 min. Beeps every 1s, and inverter shuto Inverter 2500 - 3000W 3750 - 4500W... -
Page 18: Lcd Display
LCD Display Welcome... LCD Display Information Output Information Output Voltage: AC Output Voltage Voltage: 110.0 V Out-Fre: AC Frequency - 60Hz Out- Fre: 60.0 Hz Status: Status: P- Grid • P-Grid indicates draw from AC Input (shore) • Inverter indicates draw from Battery Input Percent: 050% Percent: Percent of rated inverter power usage Input Information... -
Page 19: Error Codes
Error Codes Interpreting Faults The inverter charger may encounter faults due to various reasons. When an error is detected, it will display a corresponding fault code. To diagnose and address the error, please refer to the fault code table provided below. If the issue persists, do not hesitate to contact our support team for further assistance. -
Page 20: Additional Support
Additional Support Determining Battery Bank Size Battery Bank — Size and Example Selecting the appropriate battery bank size for your needs requires consideration of the total watts required to power your load and the duration of operation. It is important to note that these requirements may vary depending on your specific needs, appliances, and applications. -
Page 21: Determining Inverter Size & Use
Idle Power Consumption must be considered and included in the total power draw from the battery bank. Selecting Inverter Size - Idle, Rated, and Surge Power Idle Power Rated Continuous Peak / Surge Model Consumption Power Power IVOCH2KW 2000W 6000W IVOCH3KW 3000W 9000W... - Page 22 Appliance Variables Duty Cycles: Appliances operate in different ways, with some consuming a constant wattage while others have variable power consumption that depend on factors like: environmental temperature, specific conditions, and set/automatic functions. This variability is known as Duty Cycles or Power Cycles, which is the fraction of time the appliance is active during a given period.
- Page 23 Starting / Surge Watts Starting Surges: The initial surge of electrical power that lasts for less than a second, but is necessary for appliance start-up and operation. Appliances that have motors or compressors often exhibit starting surges, which are usually 2 to 3 times higher than the appliance's rated running watts.
- Page 24 Calculate Your Appliances Use the table below to keep a record of your appliances energy consumption. ( H ) ( WH / D 100% Fridge...
- Page 25 ( H ) (WH / D ( WH / D 12V DC A Energy Consumption = Rated Watts x Duty Cycles% x Time Per Day (WH / Da y ) (H r) 110V AC A Energy Consumption = Rated Watts ÷ x Duty Cycles% x Time Per Day ( W H / Day) (H r)
-
Page 26: Pre-Charging Overview
Pre-Charge Overview Permanent Pre-Charge Solution To ensure that a pre-charge circuit is always available, it is recommended to install one in the system. The push button for the pre-charge circuit can be located next to the battery disconnect switch or relay that powers the inverter. Using 18 AWG wire for this connection is recommended, as the involved current is minimal and brief;... -
Page 27: How To Use The Pre-Charge Circuit
The fuse is used to protect the circuit from overcurrent. It is important to choose a fuse with a rating that is appropriate for the maximum current that may be drawn during the pre-charge period. Once the capacitor is fully charged, the switch can be opened to disconnect the capacitor from the battery and prevent further discharge. -
Page 28: Communication Port/Protocol
Locate the remote switch port on the top part of the inverter. Connect the Smart Switch to the Inverter-Charger. Select Operation Mode. Communication Port/Protocol Download RS232C Instructions To view document please scan the provided QR code or visit: COMMUNICATION www.expertpower.us/pages/inverter-communication-protocol... -
Page 29: Additional Information
Additional Information Warranty, Disclaimer, & FAQs Warranty and Disclaimer on Customer Responsibility The inverter provided with this solar kit is covered by a 1-year warranty. This warranty ensures that the inverter will be free from defects and faults in manufacturing. However, it does not cover damages resulting from customer abuse, improper installation, water damage, electrical surges, natural disasters, or any other conditions beyond our control. -
Page 32: Inverter-Charger
Inverter-Charger SUPPORT INFORMATION 6437 Alondra Blvd Address Paramount, CA 90723 (562) 630-3002 Phone (562) 630-3006 support@expertpower.us Email ExpertPower.us Website...
