Summary of Contents for 2hp EG
- Page 2 EG is a full featured two-stage envelope generator. In addition to a colossal range from 3ms to 11 minutes per stage, EG features the ability to switch between linear and exponential curves on the fly, a built-in attenuator, and CV over attack and decay.
- Page 3 Table of Contents Installation/Specifications General Functions Overview...
-
Page 4: Installation

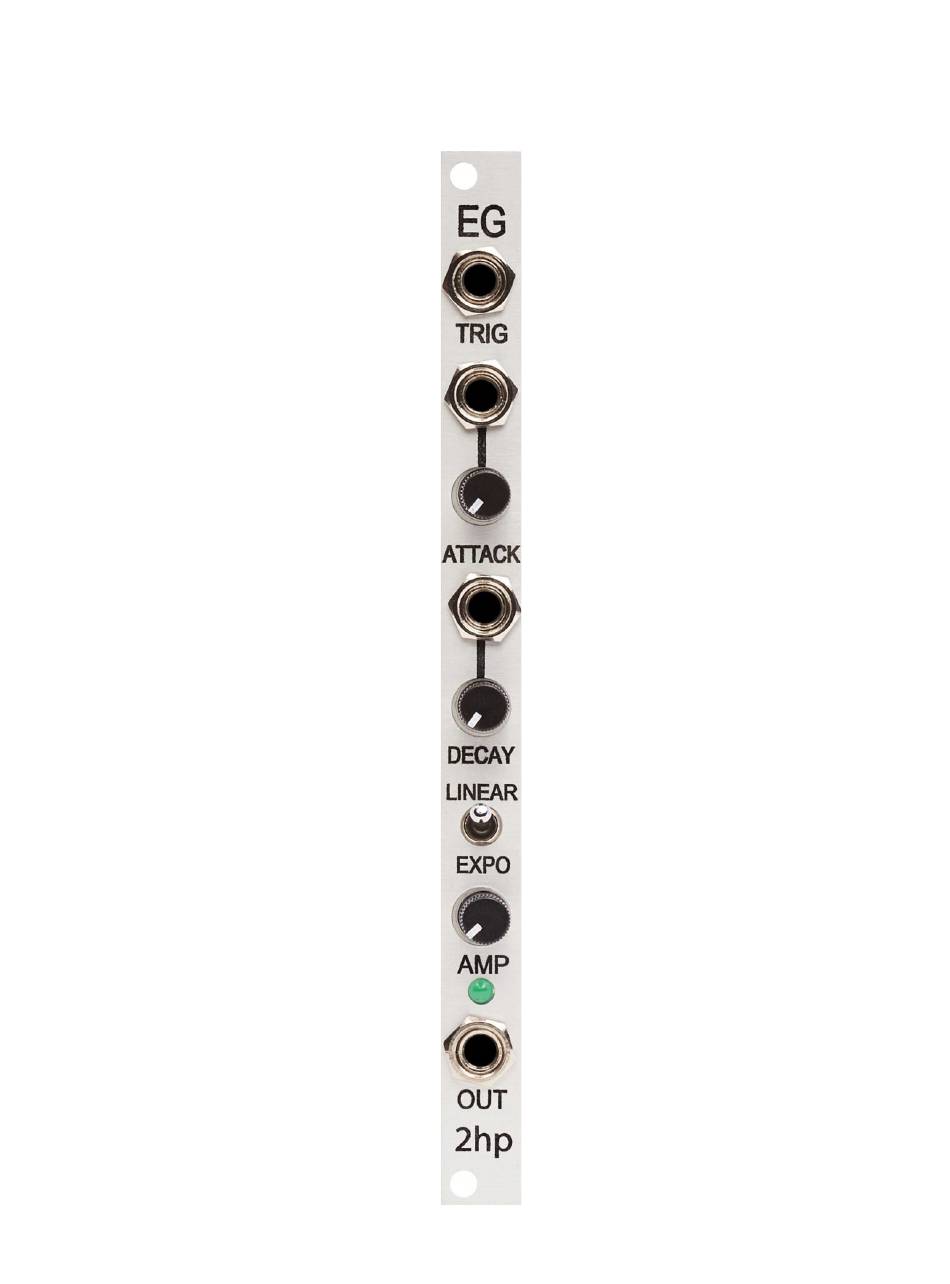

12 volts. In most systems, the negative 12 volt supply line is at the bottom. The power cable should be connected to the EG with the red band facing the front of the module. - Page 6 General Functions Overview 1. TRIG: Trigger input An envelope will emit from OUT when a trigger or gate signal is received by the TRIG input Threshold: 2.5V 2. ATTACK CV: Control voltage input for ATTACK Range: 0V – 5V 3. ATTACK: Sets the attack time of the envelope If the knob is far left, the attack time will be as fast as possible If the knob is far right, the attack time will be as slow as possible...
- Page 7 7. AMP: Amplitude control for the envelope emitted from OUT If the knob is far left, the envelope will be fully attenuated (0V) If the knob is far right, the envelope will be full scale (10V) 8. ENVELOPE LED: LED indication of the envelope emitted from OUT 9.
